Heavy Duty 3-Axle 25cbm Dump Trailer End Tipper Semi Trailer
- USD 24000.34 /Unit
- 1 Unit
- 39 Unit
- 27 days
Features:
1, Made by high tensile strengh steel, Q345B, Q610, 700
2, heave duty loading capacity. Dump volume: 25M3-55M3.
3, square shape or U-shape design, nice appearance.
4, Hydraulic system: Aset of HYVA Brand cylinder.
5, Factory directly selling, high quality and compective price.

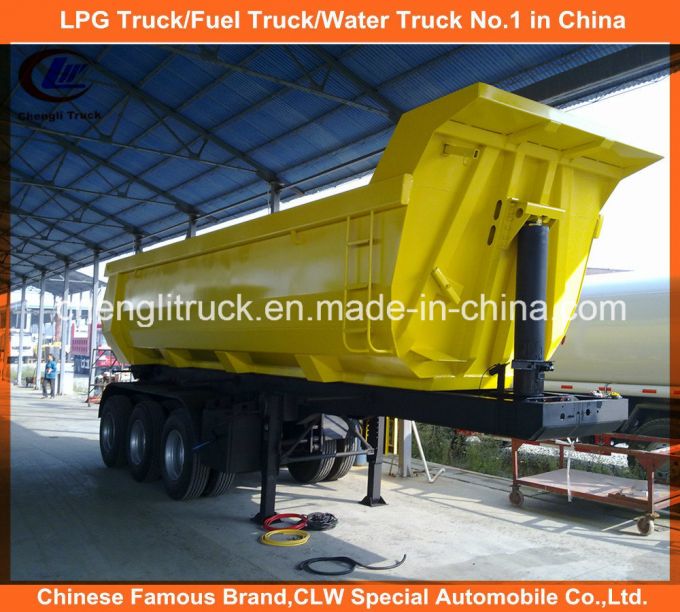

The picture of Ushape end tipper semi trailer that we do:
Container Loading pictures for Tri-axle U-shape tipper/dump semi trailers:
Our factory show:
Our main products:1. Dump Truck /Tipper Truck/Side Tipper/End Tipper2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine3. Truck with crane /Truck Mounted Crane4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck5. Water Truck /Water Tank Truck /Water Sprinkler Truck6. Concrete Mixer Truck7. Van truck /Insulated truck/ Refrigeration truck8. Fecal suction truck /Sewage Suction Truck,9. Cement Powder Tank truck/ Bulk Cement Truck10. High-altitude operation truck,11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )More information of our tipper/dump truck trailer, please feel free to contact with Ms. Helen Jiang. We will customize the truck according to your requirement.
-------------------------------------------------------------------------------------------------------
Contact information:
Sales Representative:Kitter Zhou
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel&Fax: +86-27-83796298
Mobile:+86-136 6713 2330
Web: clwvehicle
Customised Truck &Trailer Solutions to Meet Your Requirements
-----------------------------------------------------------------------------------------------------------
| DIMENSIONS | |||||
| TareWeight | 10500 kgs | ||||
| Payload | 45000 kgs | ||||
| OverallLength | 8630 mm | ||||
| OverallWidth | 2500 mm | ||||
| Dump body size | 7200mmx2300mmx1500mm | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 24 m3 | ||||
| Side Wall | 4mm thickness | ||||
| Front Wall and floor | 6mm thickness | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed Ibeam; high tensile steel Q345B for chassis and 610 for dumper body. Top Flange 16mm,width 140mm; Middle Flange 10mm ;Bottom Flange 18mm,width 140mm. | ||||
| Axle | 3 axles | ||||
| BPW axle ,13 Ton | |||||
| Hydraulic System | One set of HYVA cylinder | ||||
| Suspension | German Design Mechanical suspension | ||||
| Leaf Spring | 13-piece leaf spring. | ||||
| King Pin | JOST brand 2" Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 9.0R22.5 wheel rim, 13 pieces | ||||
| Tyre | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||
| Spare Tire | One set of spare tire including acarrier | ||||
| Braking System | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint | ||||
| Accessories | One standard tool box, tarpaulin is optional | ||||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
