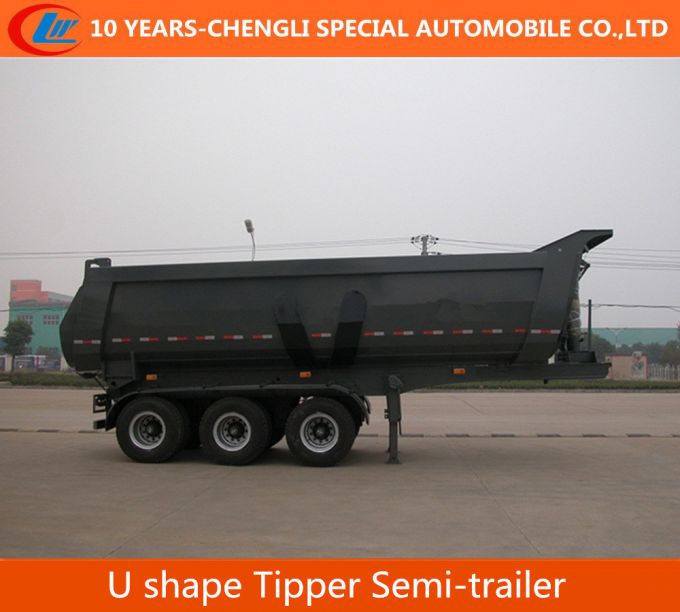

25cbm 3 Axle U Shape Tipper Semi Trailer

Description of 3axleU shape 25CBM tipper semi trailer

DIMENSIONS
TareWeight	12500kgs
Payload	45000kgs
OverallLength	10500mm
OverallWidth	2465mm
Dump body size	7000mmx2300mmx1500mm
DUMPER BODY
Volume	25 m3
Side Wall	6mm thickness
Front Wall and floor	8mm thickness
SPECIFICATION
Chassis	Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ;Bottom Flange 16mm,width 140mm.
Axle	3 axles
	13 ton capacity
Hydraulic System	One set of HYVA cylinder
Suspension	German design mechanical suspension
Leaf Spring	8-piece leaf spring. 11x100
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.25R22.5 wheel rim, 13 pieces
Tyre	11R22.5 tubeless tire with one spare tire, 13 pieces
Spare Tire	One set of spare tire including acarrier
Braking System	WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint
Accessories	One standard tool box

The pictures of loading the semi trailer into the cotainer:

Company information:

ChengLi special automobile co.,LTD is specilized in All kinds of Tank truck, Dump Truck, Crane truck,mixer truck,Bulk Cement Truck as well as many kinds of semi trailers. Our yearly production ability is 20000 units, our Water Truck ranks No.1 in China market.

Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )




FAQ

Payment:
30% deposit by T/T after order /confirm/iation, 70% balance should be paid before delivery by T/T or L/C.Other type of payment can be discussed.

Packaging &Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving deposit.
3. By RORO or Bulk ship.

Delivery time:
25 working days after payment is received.


Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare parts could be supplied by OEM at cost prices.
3.Our engineers are always ready to deal with technical problem.

If you are interested in our trucks, pls feel free to contact with me,I will give you our competitive qutation.

Ms.Coco Wei
Sales Representative.
Mobile: +86-15071238252

Web: clwvehicle
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
