Heavy Duty Tri-Axle Dump Trailer 25cbm End Tipper Semi Trailer
- USD 24000.34 /Unit
- 1 Unit
- 13 Unit
- 22 days
Features:
1, Made by high tensile strengh steel, Q345B, Q610, 700
2, heave duty loading capacity. Dump volume: 25M3-55M3.
3, square shape or U-shape design, nice appearance.
4, Hydraulic system: Aset of HYVA Brand cylinder.
5, Factory directly selling, high quality and compective price.

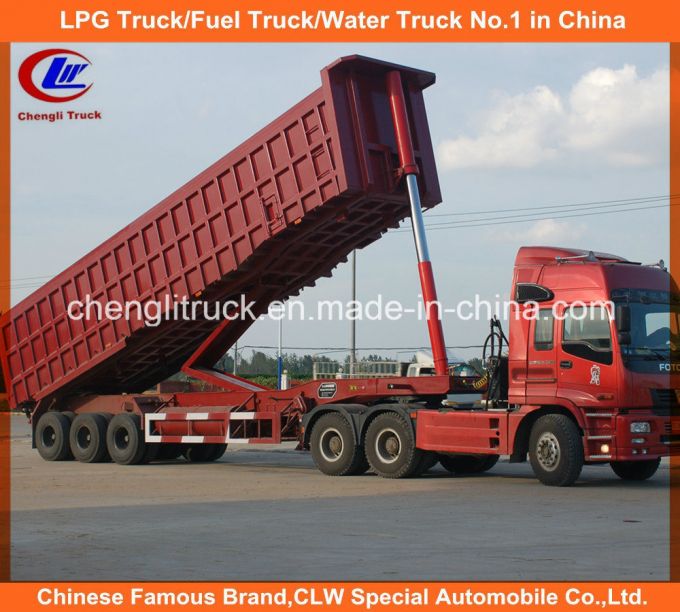

The picture of Heavy Duty Tri-Axle Dump Trailer 25cbm End Tipper semi Trailer that we do:
container loading for end tipper truck trailer:
Our factory show:
Our main products:1. Dump Truck /Tipper Truck/Side Tipper/End Tipper2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine3. Truck with crane /Truck Mounted Crane4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck5. Water Truck /Water Tank Truck /Water Sprinkler Truck6. Concrete Mixer Truck7. Van truck /Insulated truck/ Refrigeration truck8. Fecal suction truck /Sewage Suction Truck,9. Cement Powder Tank truck/ Bulk Cement Truck10. High-altitude operation truck,11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )Mr.Tom Hu
Sales Representative
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office:Room3102,7th Building,No.299 Huaihai Road,Wuhan,ChinaTel&Fax: +86-27-83796298Mobile: +86-185 7148 9664+86-138 7288 1062
Customised Truck &Trailer Solutions to Meet Your Requirements
| DIMENSIONS | |||||
| TareWeight | 12000kgs | ||||
| Payload | 45000kgs | ||||
| OverallLength | 9000mm | ||||
| OverallWidth | 2465mm | ||||
| Dump body size | 7000mmx2300mmx1500mm | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 25 m3 | ||||
| Side Wall | 6mm thickness | ||||
| Front Wall and floor | 8mm thickness | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ;Bottom Flange 16mm,width 140mm. | ||||
| Hydraulic System | One set of HYVA cylinder | ||||
| Axle | 3×12T L1 /3x13T BPW | ||||
| Suspension | German design mechanical suspension | ||||
| Leaf spring | 13-piece leaf spring | ||||
| King Pin | JOST brand 2" Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 8.25-22.5 wheel rim | ||||
| Tyre | 11R22.5 tubeless tire | ||||
| Spare Tire | One set of spare tire including acarrier | ||||
| Braking System | WABCO RE 4relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint | ||||
| Accessories | One standard tool box | ||||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
