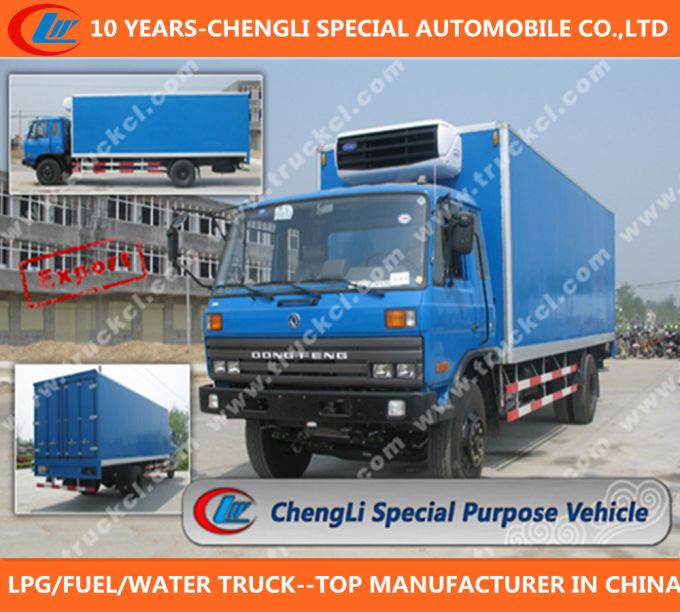

Clw5050xlc3 Refrigerator Truck
- USD 30500.00 /Unit
- 1 Unit
- 68 Unit
- 8 days
1. this large size refrigerator truck is suitable for meet/seafood cold storage transportation;
2. DonGFENG chassis and Chinese top brand refigeration system, America brand is optional'
3. 15 ~ -18ºC applicable temperature can meet different cold storage requirement;
Parameters of Chassis
| Item | unit | parameter | ||
| Vehicle model | CLW5050XLC3 Refrigerator Truck | |||
| Chassis model | EQ5141G7DJ1 | |||
| Overall dimensions | mm | 9670×2460×3740 | ||
| Fact cubage | L | 25000 | ||
| Mass in working order | 7490 | |||
| Body internal dimensions | mm | 7060×2290×1990 | ||
| Wheel base | 5600 | |||
| F/R track base | 1940/1860 | |||
| Approach/departure angle | 35/11 | |||
| Exhaust/hp | ml/kw | 5880/132 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 10.00-20 | Engine type | EQB180-20 | |
| Traction system | 6*4 | Transmission | 6-speed with over drive | |
| Number of axles | 3 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in Cab | 3 | |
| Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine EUROII | |||
Parameters of engine
| (model) | EQB180-20 |
| (type) | 6cylinder L supercharge water-cool engine |
| Max power/rotate speed | 132(KW) /2500(rpm) |
| Max torque/ rotate speed | 700(N.m) /1400~1600(rpm) |
| stroke | 102×120 |
| Emission (ml) | 5880 |
| speed ratio | 17.3:1 |
Parameters of transmission
| model | EQB180-20 |
| type | 6cylinder L supercharge water-cool engine |
| Max power/rotate speed | 132(KW) /2500(rpm) |
| Max torque/ rotate speed | 700(N.m) /1400~1600(rpm) |
| stroke | 102×120 |
| Emission (ml) | 5880 |
| speed ratio | 17.3:1 |
Parameters of DKL-300
| Unit model | DKL-300 | ||
| Applicable temperature (ºC) | 15 ~ -18 | ||
| Applicable volume(m3) | 10-13 | ||
| Cooling capacity | Environmental temperature | 0ºC | 2850 |
| -18ºC | 1450 | ||
| Voltage (V) | 12/24 | ||
| Current (A) | 27/17 | ||
| compressor | Displacement (cc/r) | 163 | |
| condenser | Air flow (m3/h) | 950 | |
| Fan type | Axial fan | ||
| number | 1 | ||
| evaporator | Air flow (m3/h) | 1500 | |
| Fan type | Axial fan | ||
| number | 2 | ||
| refrigerant | R134a/R404a | ||
| Refrigerant charge amount(Kg) | 1.3 | ||
| Defrost type | Hot gas defrost | ||
| Dimensions(mm) | evaporator | 975x525x190 | |
| Condensing utensil | 1210x485x190 | ||
| Weight(KG) | evaporator | 18 | |
| Condensing utensil | 28 | ||
| Remark | Optional to install for 380v store electric power | ||
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
important Figure of ChengLi Truck:
3000 Acres(2 million SQM) Factory Premises with New factory Under construction
8000 Workers with Professional Training
300 Different Types of Trucks Available for Choice
300 Million Total Sales Volume for 2014
More Than 10 Years Manufacturing Experience
If you get interested in this refrigerator truck or similar products(we can produce different size of van refrigerator trucks), please keep me posted and offer sheet will be sent to you at once! TKS
Nick Yeh
Sales Manager
Exporting Department
Chengli Special Automobile Co., Ltd
Factory Address: Chengli Automobile Industry Park, Suizhou City, Hubei
Province, P.R.China
Office Add: Room 3102, Block 7, Fanhai International SOHO
Town, Jianghan District, Wuhan, Hubei Province, China
Mobile:+86 158 2703 7296
Website address: http://www.clwvehicle.com/
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
