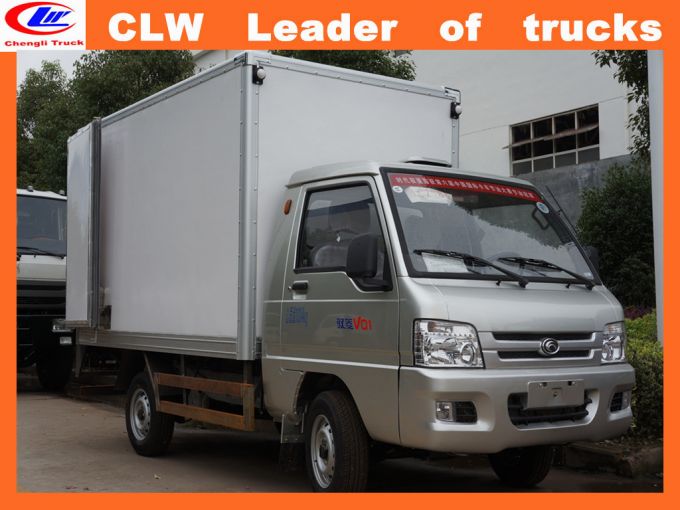

Reefer Freezer Type for 1ton Mini Refrigerated Van Box Truck

East or West, Chengli Special Automobile Co., Ltd is the Best.
Our advantage:
Competitive Price and Excellent Quality,
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year

Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.


Refrigerator wagons/cars/trucks produced by Chengli Special Automobile Co., Ltd
Cover SINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMC brand and range in size and equipment, which can meet different need, such as vegetable transportation, meat transportation, seafood transportation and vaccine transportation.

Our main products:
1. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
2. Water Truck /Water Tank Truck /Water Sprinkler Truck/Water Tanker
3. Truck with crane /Truck Mounted Crane
4. Dump Truck /Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck /Fire Truck /Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Freezer truck/ Refrigerated truck/Cooling truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )


Any question, please contact us.

Sales Manager: Mr. Eric Cen
Mob.: +86-186 0715 8551

DonGFENG 4*2 120HP Refrigerated Truck
Truck	Drive mode	4×2
	Chassis	EQ5061XLC40D4
	Engine	Model	EQ5061XLC40D4
		Type	4cylinder in line, turbocharging, electrical control common-rail engine
		Max. power(Kw/)	88
		Bore /Stroke(mm)	102×118
		Displacement(ml)	3856
		Type of fuel	Diesel
		Compression ratio	16.5:1
	Dimensions	Overall dimension (mm)	9790×2370×2760
		Wheel base (mm)	5600
		Front/Rear tread(mm)	1880/1800
		App./Dep. angel (°)	20/9
	Performance	Max. speed(Km/h)	110
	Mass	Payload (Kg)	7650
		Curb weight(Kg)	4850
		G.V.W (Kg)	12500
Special functions	Specifications	Overall dimension of body (mm)	7500×2300×2200
		Refrigerating capacity	4689
		Refrigerant	404A
		Min. temperature(°C)	-15
		Inside and outside of van's material	FRP(Fiber Reinforced Plastics)
		Middle of van's material	Polyurethane
		Insulation layer	Under 120kPa high pressure,overall foam
		Rear doorpost	stainless steel
		ventilation opening	yes
	Special configration	adopt to Korea's HT-500 non-independent unit

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
