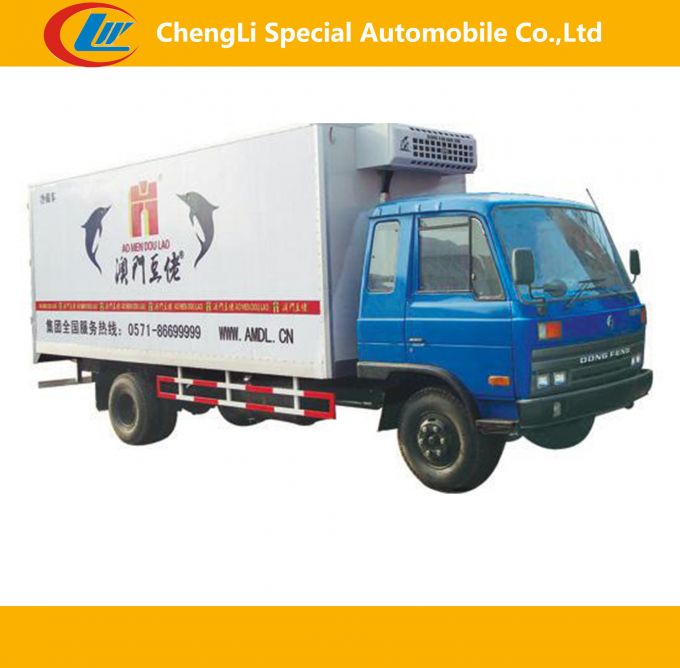

Dongfeng 4*2 10cbm Refrigerated Truck

Product advantage

1.Oil Saving--Two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.

2.Safety--Drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.

3.Driving comfort-- New style air bag seat, four point floating suspension with anti-Roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc

4.Reliability--All the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.

5.Low application cost--Large use quantity, complete service and accessory networks and low price.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4.LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
6. Concrete Mixer Truck
7.Van truck / Insulated truck/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Specification
Truck	Drivemode	4×2
	Chassis	DFL1120B
	Engine	Model	CumminsISDe18030
		Type	4-cylinderinline,turbocharging,electricalcontrolcommon-railengine
		Max.power(Kw/rpm)	136/2500
		Max.torque(Kw/rpm)	650/1200-1700
		Bore/Stroke(mm)	107×124
		Displacement(ml)	4500
		Typeoffuel	Diesel
		Compressionratio	17.3:1
	Dimensions	Overalldimension(mm)	9790×2370×2760
		Wheelbase(mm)	5600
		Front/Reartread(mm)	1880/1800
		App./Dep.angel(°)	20/9
	Performance	Max.speed(Km/h)	110
	Mass	Payload(Kg)	7650
		Curbweight(Kg)	4850
		G.V.W(Kg)	12500
Specialfunctions	Specifications	Overalldimensionofbody(mm)	7500×2300×2200
		Refrigerant	404A
		Min.temperature(°C)	-15
		Insideandoutsideofvan'smaterial	FRP(FiberReinforcedPlastics)
		Middleofvan'smaterial	Polyurethane
		Insulationlayer	Under120kPahighpressure,overallfoam
		Reardoorpost	stainlesssteel
		ventilationopening	yes
	Specialconfigration	adopttoKorea'sHT-500non-independentunit

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
