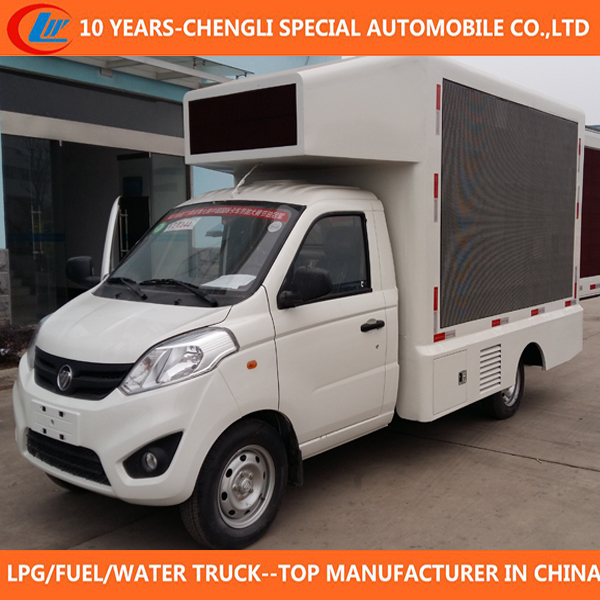

Mini LED Screen Truck LED Mobile Billboard Truck for Sale
- USD 13000.20 /Unit
- 1 Unit
- 58 Unit
- 16 days
Specifications
1. High resolution 15625pixels/sqm, HD nice video advertising effect.
2. DIP LED encapsulation confirm the high brightness even under strong sunlight
3. Good protection level waterproof IP65, anti-corrosion,oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings,
6. Can be set to open and close the screen automatically
7. Can be fixed on the wall, by pole support on the street, on top of building, or for stage rental hanging to meet the request of concert stage background, event show, live broadcasting, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system, Wifi control, 3G control.
8. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
9, P6 P8 P10 type screen is optional.
10, Adopts hydraulic control of one side screen.
Techniqueparameters
| Description | Mini LED Screen truck LED Mobile billboard truck for sale | ||
| Condition | Newcondition/LHD&RHD | ||
| Chassis | Curbweight(kg) | 2120 | |
| G.V.W.(kg) | 2400 | ||
| Wheelbase(mm) | 3070 | ||
| Dimensions(mm) | 5000×1900×2650 | ||
| Overhang(front/rear)(mm) | 605/1325 | ||
| Wheeltrack(front/rear)(mm) | 1338/1375 | ||
| Approach/Departureangle(°) | 39/17 | ||
| AxleLoad(kg) | 800/1700 | ||
| Max.drivingspeed(km/h) | 115 | ||
| Brand | Foton | ||
| Model | BJ1036 | ||
| Tire | Number | 4pcswithonesparetire | |
| Specifications | 175R14LT8PR | ||
| Clutch | Reinforceddiaphragmclutch | ||
| Gearbox | 5Forwards&1Reverse | ||
| Frontpassenger | 3 | ||
| Engine | Model | 4W12M1 | |
| Displacement(ml) | 1206 | ||
| Fueltype | Gasoline | ||
| Power(kw) | 63 | ||
| Emissionstandard | Euro5 | ||
| Brakes | Servicebrake:dualcircuitcompressedairbrake Parkingbrake(emergencybrake):springenergy,compressedairoperatingonrearwheels Auxiliarybrake:engineexhaustvalvebrake | ||
| SteeringGear | Powersteering,hydraulicsteeringwithpowerassistance | ||
| Screen | Productno. | CLW-9005 | |
| PixelPitch(mm) | 6mm8mm10mm | ||
| Refreshfrequency | ≥480Hz | ||
| framefrequency | ≥60Hz | ||
| Lifespan | 100,000h | ||
| Workinghumidity | 10%-95%RH | ||
| Controlmode | VGASynchronous | ||
| Model | Dualscreen,hydrauliccontrolofoneside. | ||
| Size | 3-7cbm | ||
| 1-1.5cbm | |||
Products images
Why choose usChengLi Special Automobile Co.,LTD.In the special vehicle circle, has developed into the biggestprofessional special vehiclemanufacturer of central China starting from scratch since2004There are totally8,000 workersin factory and can supply800 typesof trucks. In2014, our total sales revenue reach$300 million.Over the past 11 years, our group made a great achievements in the special vehicle circle, our products have been sold to many country around the world, such asNigeria, Vietnam, Garner, Uganda, Singapore, Malaysia, Congo, Cameroon etc.There're many type trucks in our company, because we built up a long cooperate relationship with many famous brand chassis manufacturer,such as Sinotruk, Dongfeng, Foton, Shacman, JAC, JMC, ISUZU, FAW etc.Look forward to the future, we are confident, we truct we can do better! We will pay more attention to the quality of the products, that's what we always do!
Customised Truck & Trailer Solutions to Meet Your Requirements
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
FAQ:1. Minimum order quantity: 1 set2. Optional payment terms: T/T or L/CT/T: 30% deposit by T/T, 70% balance should be paid before shippment.L/C: 30% payment advance, 70% L/C at sight.3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
Our advantage:Competitive Price and Excellent Quality,More than 10 years' experience as a manufacturer,CCC,ISO,BV certification,Perfect after-sale service,Customized products available with us,Export covering More than 50 countries and regions ,Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) peryear.
Our warranty:1. One year quality guarantee for three key parts: Axles, engine, transmission.2. Other spare part could be supplied by OEM at cost prices.3. Regularly callback to know the vehicle's working status.4. The overseas engineers are always ready to deal with unexpected needs. Mr. Jacky-Ke
SalesRepresentative
ChengliSpecialAutomobileCo.,Ltd
Factory:Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel&Fax:+86-27-83796298
Mobile:+86-13667212560 +86-13872881765
Web: clwvehicle
Customised Truck & Trailer Solutions to Meet Your Requirements
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
