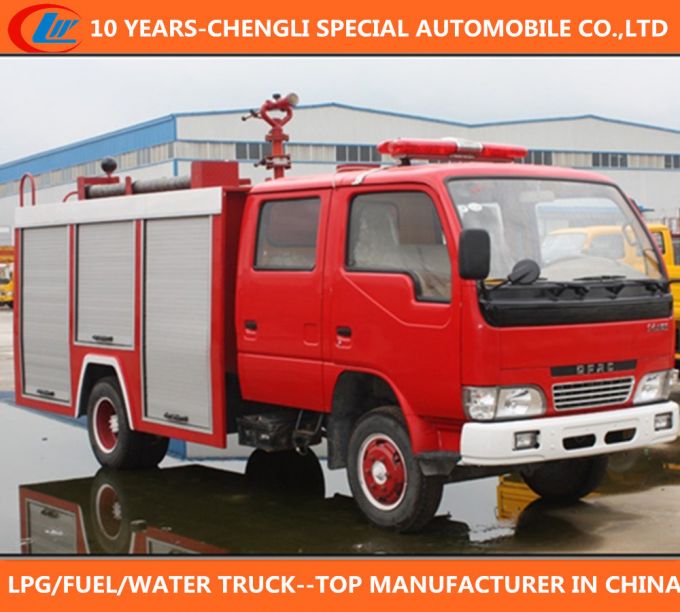

20 Cbm Fire Fighting Foam Truck Fire Fighting Water Truck

Description of HOWO 6X4 10CBM Foam fire-fight truck

10CBM,15CBM,20CBM,25CBM Foam fire-fight truck for your choose.

Optional band:SINO TRUK,DONGFENG,BEIBEN,FAW,etc.

We can produce the truck according to your requirement.Below accessory can be replaced in compliance with your inquiry.
If your order quantity is more than 5units,we can give you the reasonable discount.

1.Power takeoff
* Full power and sandwich type.

2.Tank
* Water: 10000L
Material: carbon steel phosphating treatment.
Thickness: 4:4:3 mm
With one DN430 manhole, one DN50 overflow.
* Foam: 1,000L
Material: carbon steel phosphating treatment.
Thickness: 4:4:3 mm
With one DN430 manhole, one DN50 overflow

3.Pump
* Model:CB10/40
* Type: Low pressure centrifugal pump.
* Pipe: 20seamless steel tube.

4.Fire monitor
* Model: PL32
* Flow: 40L/s
* Pressure: 1.0 ~1.2 Mpa
* Fire rang: water ≥55m, foam ≥50m
* Rotation angle: 360°, Horizontal clinostatic condition.
* Angle of elevation: ≥+70°
* Angle of depression: ≤-15°









Details of HOWO 3Axles 10CBM Foam fire-fight truck

Item	Specification
Cabin	* Manufacturer: SINOTRUK * Double row, 2+4 seats contains the driver seat. * With air conditioner. * With fire control panel, and awarning lamp control box. * The back seats bear 4sets air respirator and fixed fixtures.
Overall dimensions	9650*2490*3500mm
Chassis brand	SINOTRUK HOWO
GVW	28700kgs
Curb weight	15250kgs
Water tanker	10CBM
Foam tank	3CBM
Wheel base	4325+1350mm
F/R track base	2022/1830mm
Approach/departure angle	16/12°
Exhaust/hp	9726ml/276kw
Horse power	375HP
Max speed	90(km/h)
Tire specification	11.00-20 18PR
Engine type	WD615.96
Emission standard	EURO III
Transmission	5 speed with one reverse
Equipment	Water tanker: 4000L,Foam tanker: 1000L Fire pump:CB10/40,flow: 40L/s diversion time≤35s(Pressure: 1.0Mpa) Fire monitor: PL32,flow: 40L/srange: water≥55m, foam≥50m. (Pressure: 1.0Mpa-1.2Mpa) Power take off.
