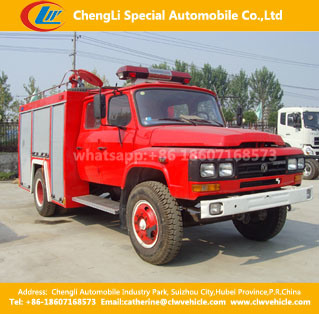

Dongfeng 4, 000liters Water Foam Fire Sprinkler Truck
- USD 35000.65 /Unit
- 1 Unit
- 73 Unit
- 26 days
Techinical data as follows:
| Product | Dongfeng 140 3.5Ton fire truck, fire fighting truck | |
| Cab | Double-row, four doors, rated passengers 6 | |
| Volume | Water tanker 3000-4000L | |
| Brand | Dongfeng 140 | |
| Chassis model | EQ1092F3GJ2 | |
| Chassis | Drive type | 4×2, LHD/RHD |
| Tire | 9.00-20,9.00R20 | |
| Tire No. | 6+1(spare) | |
| Braking System | Air braking | |
| Clutch | Uniwafer, dryclutch, hydraulic remote control | |
| Transmission | 5forward gear,1 reverse gear,manual mechanical type | |
| Engine | Model | EQ6100-30 |
| Horse Power(hp) | 135 | |
| Displacement(cc)/Power(kw) | 5420/99 | |
| Emission | Euro III | |
| Main Parameters | Overall dimension (L*W*H/mm) | 7020×2400×3080 |
| Wheelbase(mm) | 3950 | |
| Axles No. | 2 | |
| GVW(kg) | 9320 | |
| Curb Weight(kg) | 5600 | |
| Leaf spring No. | 8/11+8 | |
| Approaching/Departure Angle(°) | 16/14.5 | |
| Front/Rear trace(mm) | 1800/1800 | |
| Front/Rear suspension(mm) | 1065/1940 | |
| Max speed(km/h) | 90 | |
| Front/Rear Axle Load(kg) | 2420/6900 | |
| Fire Pump | Atmospheric pressure pump Type:CB10/30 firefighting pump, | Flow capacity:30L/s, Pressure:1.0MPa |
| Medium-low pressure pump Type:CB20.10/15.30 : | Low pressure Flow capacity:30L/s/1.0MPa; Medium pressure flow capacity:15L/S/2.0MPa | |
| Fire Monitor | Water≥45m/1.0MPa | Foam≥40m/1.0MPa |
| ShotRange | ≥55m | |
3000Acres(2millionSQM)Factory
8000WorkerswithProfessionalTraining
300DifferentTypesofTrucksAvailableforChoice
300MillionTotalSalesVolumefor2014
MoreThan10YearsManufacturingExperience
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
6. We are professional manufacturers for the special vehicles. We can supply all brands of special trucks, such as , Faw, Foton, Shaanxi, Sinotruck, JAC, JMC, Isuzu, Dongfeng.
7. The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
8. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
9. Our products are Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
How to contact us:
Click the "talk to me" on the front of the pages or send me email.
Chengli Special Automobile Co., Ltd.,
Customised truck & trailer solutions to meet your operational requirements
Ms. Belinda Gong
Factory:Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel: +86 27 8379 6298 Fax: +86 27 8379 6298
Mob: +86 138 7288 1075/+86 131 6338 8097
Web: clwvehicle
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
