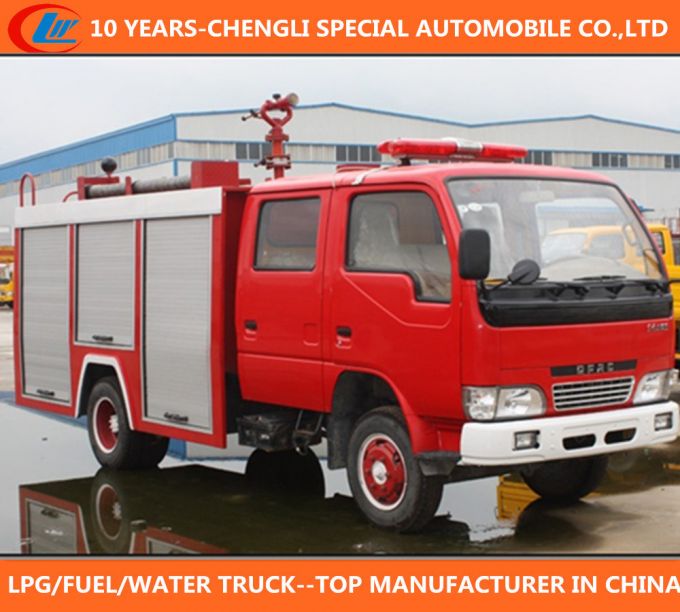

4X2 Dongfeng Water Foam Fire Fighting Truck
- USD 13000.00 /Unit
- 1 Unit
- 72 Unit
- 14 days
Technical Parameters
| Description | DF XiaoBaWang Water-Foam Fire Fighting Truck | |
| Drive Model | 4X2 | |
| Chassis | EQ1042 | |
| Capacity | Water tank:1500L Foam tank:500L | |
| Vehicle Main Dimensions | Dimensions(L xW xH)(mm) | 6310x1980X2400 |
| Water tank dimensions | 1000x1700x1000 | |
| Foam tank dimensions | 500x1700x700 | |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1853 | |
| Wheel track (front/rear) (mm) | 1508/1458 | |
| Approach/Departure angle(°) | 23/15 | |
| Weight in KGS | GVW. | 4495 |
| Curb Weight | 2705 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | CY4102 |
| Type | 4-stroke direct injection ,4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 95 HP | |
| engine capacity(ml) | 3707 | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards &1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 120 | |
| Tire | 7.00R15tire ,6 +1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Cab | four doors, double row | |
| Equipment | Water tanker: 1500LFoam Tanker:500L Low pressure pump:CB10/20 Flow: low pressure 20L/S Pressure: low pressure 1.0MPa PL30 Fire PumpFlow: 20L/S Pressure: 1.0MPa Fire distance (water):≥50m | |
Fire Truck Standard Configuration Spare Parts list:
| NO. | ITEM | Q.T.Y | UNIT |
| 1 | Suction Tube 100-125 2meters 2100-125 | 4 | Length of |
| 2 | Water Filter 100-125100-125 | 1 | unit |
| 3 | Suction Tube wrench | 2 | unit |
| 4 | Ground fire wrench | 1 | unit |
| 5 | Underground Fire wrench | 1 | unit |
| 6 | Water belt 65# | 5 | roll |
| 7 | Water belt 80# | 5 | roll |
| 8 | Outer-affusion water belt | 2 | roll |
| 9 | Different diameter interface 80-65 | 2 | unit |
| 10 | DC water gun | 1 | unit |
| 11 | Flowering water gun | 1 | unit |
| 12 | DC switch water gun | 1 | unit |
| 13 | Foam gun | 2 | unit |
| 14 | Same diameter interface 100-125 | 1 | unit |
| 15 | Tri-detaching water equipment 80-65 | 1 | unit |
| 16 | Water collection | 1 | unit |
| 17 | Water belt guard bridge | 1 | Set of |
| 18 | Water belt Wrapper | 4 | unit |
| 19 | Water belt hook | 4 | unit |
| 20 | Foam barrel 25 Liter25L | 2 | unit |
| 21 | Fire Hammer | 1 | unit |
| 22 | Fire axe | 1 | unit |
| 23 | Fire xin | 1 | unit |
| 24 | Fire Ting | 1 | unit |
| 25 | Fire pickaxe | 1 | unit |
| 26 | Fire barrel | 1 | unit |
| 27 | Axe | 1 | unit |
| 28 | soft ladder | 1 | Set of |
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, , etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email &Phone call tracking for each truck on timely manners, also possible engineer
maintenance in customer's Country.
Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
important Figures of ChengLi Truck:
3000 Acres(2 million SQM) Factory Premises with New factory Under construction
8000 Workers with Professional Training
300 Different Types of Trucks Available for Choice
300 Million Total Sales Volume for 2014
More Than 10 Years Manufacturing Experience
If you get interested in thisfire fighting truckor similar products, please keep me posted and offer sheet will be sent to you at once!
Ms. Belinda Gong
Sales representative
Mobile: +86-138 7288 1075/+86-131 6338 8097
Chengli Special Automobile Co., Ltd
Factory Address: Chengli Automobile Industry Park, Suizhou City, Hubei
Province, P. R. China
Office Add:Room 3102, Block 7, Fanhai International SOHO
Town, Jianghan District, Wuhan, Hubei Province, China
Mobile:+86 158 2703 7296/ +86 138 7288 1063
Website address: clwvehicle/
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
