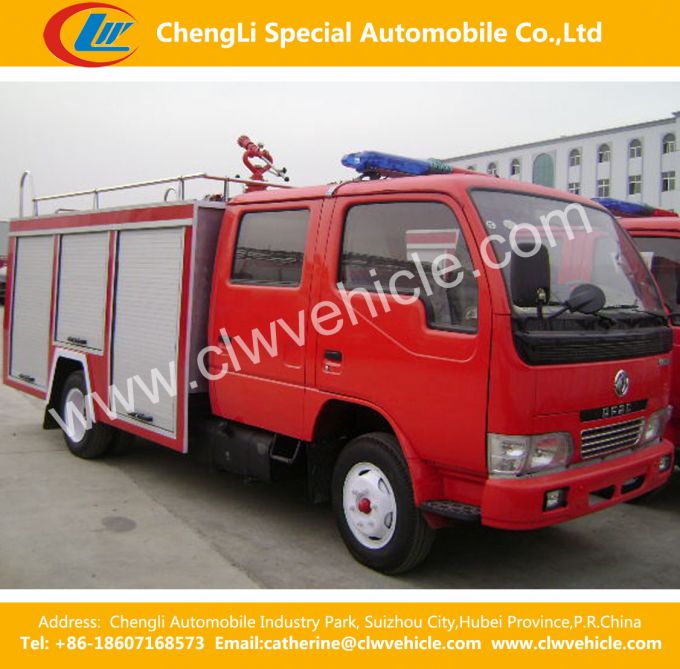

4*2 Dongfeng 5ton Water Foam Fire Sprinkler / Fire Fighting Truck
- USD 32791.34 /Unit
- 1 Unit
- 33 Unit
- 12 days
| 4*2 Dongfeng 5ton 145 fire fighting truck | ||||
| Model No. | CLW | Axles | 2 | |
| G.V.W(Kg) | 12500 | Tank overall volume(m3) | 4.106 | |
| Curb weight(Kg) | 7800 | Overall dimension (mm) | 8235×2490×3400 | |
| Loading capacity(kg) | 5000 | Axles Load(Kg) | 3900/8600 | |
| Leaf of Spring | 8/10+7 | Front/rear suspension (mm) | 1205/2330 | |
| Approach/departure angle (°) | 25/14 | Max speed(Km/h) | 90 | |
| Wheelbase(mm) | 4700, 5000 | Front/rear Tread(mm) | 1900/1800 ,1800 | |
| Drive Cab | 3+3 passengers allowed | Fuel | Diesel | |
| Chassis model | EQ1126KJ1 (6-cylinder in-line with water cooling ) | |||
| Engine model | Manufacturer | Displacement(ML) | Rated power(Kw) | |
| B190 33 | Dongfeng Cummins | 5900 | 140 | |
| EQD180-31 | Dongfeng | 6234 | 132 | |
| Emission standard | Euro 3 | |||
| Tire size | 9.00-20,9.00R20 | Tire No. | 7(including 1 spare tire) | |
| WaterTankCapacity3000L / Size 1960*1400*1100mm | ||||
| special function | Foam tank capacity 1106L/ Foam tank size:1960×1400×405mm / Density:1.129t/cbm ISDe180 30(ISDe185 30,ISDe160 30,ISBE185 30) | |||
| FireMonitorrange:≥ 60 M | ||||
| Pump:type PS50 ,WaterDiversionWay:circulation | ||||
| WaterDiversionTime:≤35s,RatedFlow: 60L/s | ||||
| Pump Room: Middle or rear-mounted pump (Left and right side of the pump room) compartment side have the new style high-strength alloy aluminum rolling doors | ||||
| Storage sidehavethenewstylehigh-strengthalloyaluminumrollingdoors | ||||
| ElectricalEquipment:Thetopofcabequippedwithlong-linedlight,thebackofthetruckequippedwithred and blue matched strobe lights, the down side installed security lights. Crew rooms, storage compartment and pumping room equipped with lights plus 100W siren, rotary light switches and reserved communication equipment ports. | ||||
Water truck,isalsocalledasthesprinkler,wateringcart , water tank truck, water spray truck, water sprinkler truck, water Tanker truck andmulti-functiongreenwateringtruck.
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Any further inquires, feel free to contact me throught below info!
Chengli Special Automobile Co., Ltd
Factory Add:ChengliAutomobileIndustryPark,SuizhouCity,
HubeiProvince,P.R.China
Export:Room3102,Block7,FanhaiInternationalSOHOTown,
JianghanDistrict,Wuhan,HubeiProvince,China
Mob:(+86) 18607168573
Web:http://www.clwvehicle.com
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
