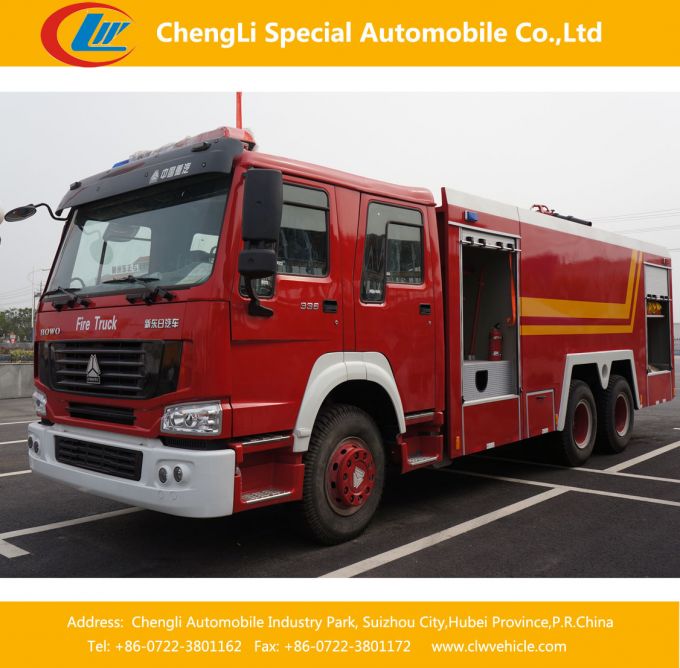

HOWO 6X4 16-20cbm Water Tank Fire Fighting Truck
- USD 81317.88 /Unit
- 1 Unit
- 73 Unit
- 18 days
Basic technical data:
| 6x4 Howo 12cbm water foam Fire Fighting Truck | ||||
| Model No. | CLW | Axles | 3 | |
| G.V.W(Kg) | 34000 | Tank volume(m3) | 16-20 | |
| Curb weight(Kg) | 9230 | Overall dimension (mm) | 9830x2500x3850 | |
| Rated weight(Kg) | 15550 | Axles Load(Kg) | 7600/24050 | |
| Seating person | 5,6 | Front/rear suspension (mm) | 150/2380 | |
| Approach/departure angle (°) | 16/13 | Max speed(Km/h) | 80 | |
| Wheelbase(mm) | 4600+1350,4575+1400 | Front/rear Tread(mm) | 2022/1830 | |
| Axle load(Kg) | 6056/6944/18000 | Driver cab | 5-6 passengers allowed | |
| Chassis model | ZZ5347V4647D1 (6-cylinder in-line with water cooling ) | |||
| Engine model | Manufacturer | Displacement(ML) | Rated power(Kw) | |
| D10.38-40 | China Heavy Duty Truck Group | 9726 | 276 | |
| D12.42-40 | China Heavy Duty Truck Group | 11596 | 309 | |
| MC11.40-40 | China Heavy Duty Truck Group | 10518 | 297 | |
| Emission standard | Euro 3 | |||
| Tire size | 12.00-20,12.00R20,315/80R22.5 | Tire No. | 11(including 1 spare tire) | |
| special function | WaterTankCapacity1 20 00L | |||
| FireMonitorrange:≥ 60 M | ||||
| Pump:type PS50 ,WaterDiversionWay:circulation | ||||
| WaterDiversionTime:≤35s,RatedFlow: 60L/s | ||||
| Pump Room: Middle or rear-mounted pump (Left and right side of the pump room) compartment side have the new style high-strength alloy aluminum rolling doors | ||||
| Storage sidehavethenewstylehigh-strengthalloyaluminumrollingdoors | ||||
| ElectricalEquipment:Thetopofcabequippedwithlong-linedlight,thebackofthetruckequippedwithred and blue matched strobe lights, the down side installed security lights. Crew rooms, storage compartment and pumping room equipped with lights plus 100W siren, rotary light switches and reserved communication equipment ports. | ||||
Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
LPG tank is one of our most advantageous key products which ranks Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank work well with 10-20 years use life.
Our main products:
1. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Freezer truck/ Refrigerated truck/Cooling truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Here attached pictures of our factory corners:
Also the ceritifcates we owned :
Any questions , pls contact us through below email or phone! Your visiting to our factory are warmly welcomed !
ChengLi Special Automobile Co.,Ltd
Address:ChengliAutomobileIndustryPark,SuizhouCity,
HubeiProvince,P.R.China
Catherine Yee
Sales specialist
Tel:+86 18607168573
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
