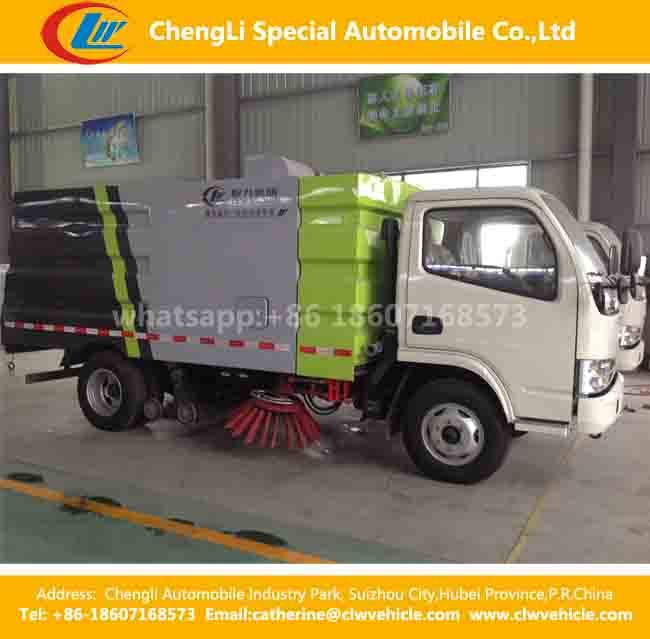

Dongfeng Sanitation Road Sweeper Suction Truck

4x2 Dongfeng Sweaper truck /City Sanitation Road/Street Sweeper Suction truck
Overall Dimension(mm)	8620×2500×2990
G.V.W(Kg)	16000
Curb Weight(Kg)	11650
Rated Weight(Kg)	4150
Wheel base(mm)	5000,4700
Front/rear Suspension(mm)	1430/2190
Approach/Departure Angle	20 / 15
Axles Load(Kg)	6000/10000
Leaf of Spring	7/9+6,8/10+8
Max.Speed(km/h)	90
Fuel type	Diesel
Tire	9.00-20,9.00R20,10.00-20,10.00R20,275/80R22.5
Emission Standard	Euro III
Chassis Model	DFL1160BX
Engine	ISDe185 30
Displacement(ML)	6700
Multifunction Sweeper Configuration
Assistant Engine	EQH180-33
Engine Power(Kw)	129Kw 175hp
Cleaning width(m)	≥3.3-3.5
water tank volume (stainless steel tank)(m3)	±7
Operation Speed(km/h)	3~15
Max suction particle size/quality	100 mm / ±1.5kg
Cleaning efficiency(%)	≥96

Special description:

1. ChengLi is professional in special vehicles manufacturing. We can supply all brands of special trucks, such as, Faw, Foton, Shaanxi, Sinotruck, JAC, JMC, Isuzu, Dongfeng.
2. The drive type includes 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4.Chassis can be done Q345, T610, T700, Hardox 450 steel etc.
5. Our products are Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.

Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
LPG tank is one of our most advantageous key products which ranks Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank work well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Any questions , feel free to contact us:
Catherine Yee
Tel:+18607168573

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
