Adr 3 Axle 40feet Container Flatbed Semi-Trailer Flatbed Trailer 40feet Flat Top Trailer Flat Deck

3 Axle 40feet Container Flatbed Semi-Trailer flatbed trailer 40feet flat top trailer flat deck semi trailer Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.


Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer, Tipper Trailer, Side tipper / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

DIMENSIONS
Tare Weight	7700kg
Overall Length	12400mm
Overall Width	2480mm
Payload	45000kg

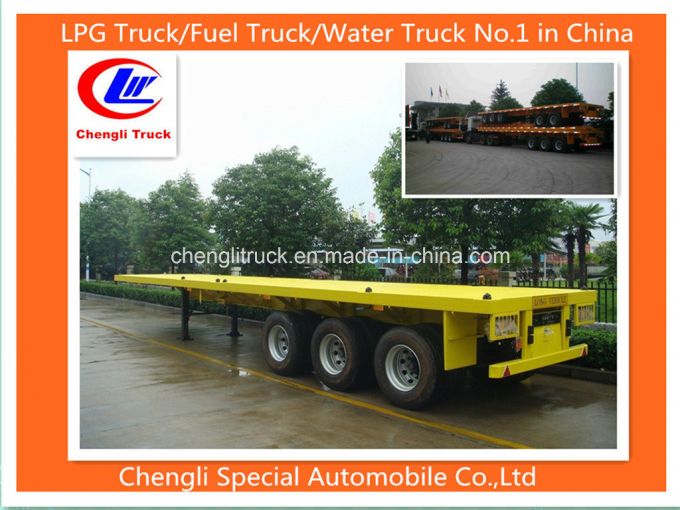

Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle	3 axles
	BPW brand 13 ton ,FUWA brand is optional
Suspension	Heavy duty mechanical suspension
Floor	3mmchecker plate
Leaf Spring	13 piece Leaf spring
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.25-22.5 steel wheel rim
Tire	11R22.5 tire with one spare tire.
Twist Lock	12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
