10000L Milk Cooling Tank, Milk Tank Cooler

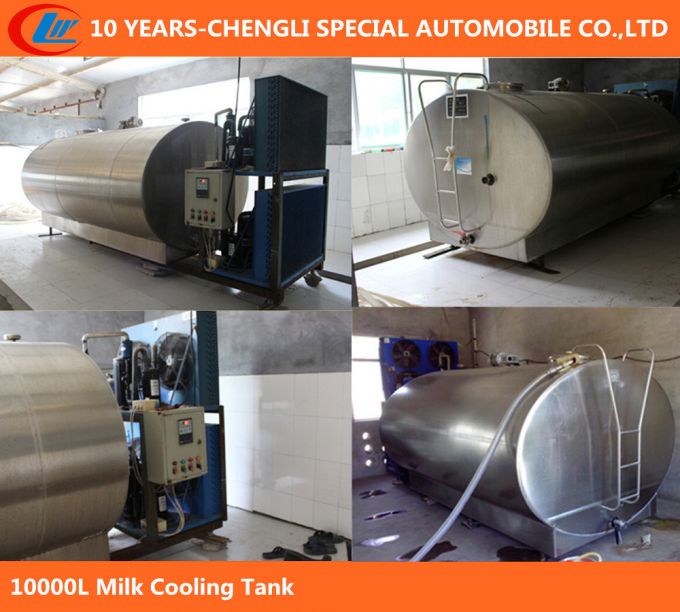

10000L Milk Cooling Tank

Brief Introduction:

The Milk Cooling Tank is used for cooling, storage and keeping fresh of fresh milk. It is also suitable for the cooling and storage other beverage. It composed of four layers: Liner, Jacketed Layer, Insulation Layer and Shroud Layer. It is operated automatically. The fresh milk squeezed out by the milker in 36 centigrade can be cooled to 10 degree the time it comes to the Tank. The milk then will be cooled to 4-6 centigrade after it comes to the tank body, which improves the quality of milk and guarantees the acidity and freshness of milk. There is an insulating layer wrapping the jacket layer, which keeps it in constant temperature and prevents the milk from producing bacterium. The timed agitator makes the fresh milk keep in A grade.

The Main Technical Parameters
Model	10000L
Refrigerating Capacity (Calories/h)	40000 Calories/h
Voltage	380V 50Hz 3Phase or made to order
Compressor power (kw)	16KW
Cooling fan power (kw)	1.5KW
Total power (kw)	17.5KW
Running current(A)	40A
Cooling air flow rate (m3 / h)	21640
Temperature control precision (ºC)	+0.1
Refrigerant	R22 (environmental protection)
Condenser	210
Flow control	Expansion valve
Refrigeration circuit	Double circuit
Volume control	50% - 100%
Cooling tank type	horizontal elliptic type
Stainless steel material	SUS304
Welding way	argon arc welding
Bladder wall thickness (mm)	2.5
Refrigeration area ()	15
Gallbladder wall thickness (mm)	1.5
Trouble-free operation time (h)	10000
Agitator power (KW)	1.1*2
Agitator rotational speed (r/min)	22
Thickness Polyurethane thermal insulation layer (mm)	50
Whole machine size (length * width * height) (mm)	5400*2200*2100
Weight (KG)	1400
Accessories	One unit electric control cabinet, two agitators
Refrigeration unit configuration
Name		Brand Name
Compressor		The United States - Copeland
Main electrical components		Schneider
Phase protection		The New Asia
Relay		Schneider
Solenoid valve		Castel
Condenser		Zhejiang gaoxiang
Pressure controller		Zhejiang Heli
Oil pressure gauge (high pressure)		Shanghai Xinshi
Oil pressure gauge (low pressure)		Shanghai Xinshi
Expansion valve		Denmark -Danfoss
Liquid accumulator		Zhejiang gaoxiang
Dry filter		The United States - Emerson
Oil separator		The United States - Emerson
Cooling fan		Hangzhou Weiguang
Controller		The New Asia
The refrigeration unit protection device
1. Lacking phase, reverse phase protection device; 2. Motor overload protection device; 3. High and low pressure protection device; 4. Low temperature, anti icing protective device; 5. Coil overheating protection device.
