10, 000L Cement Mixing Truck
- USD 29000.00 /Unit
- 1 Unit
- 11 Unit
- 26 days

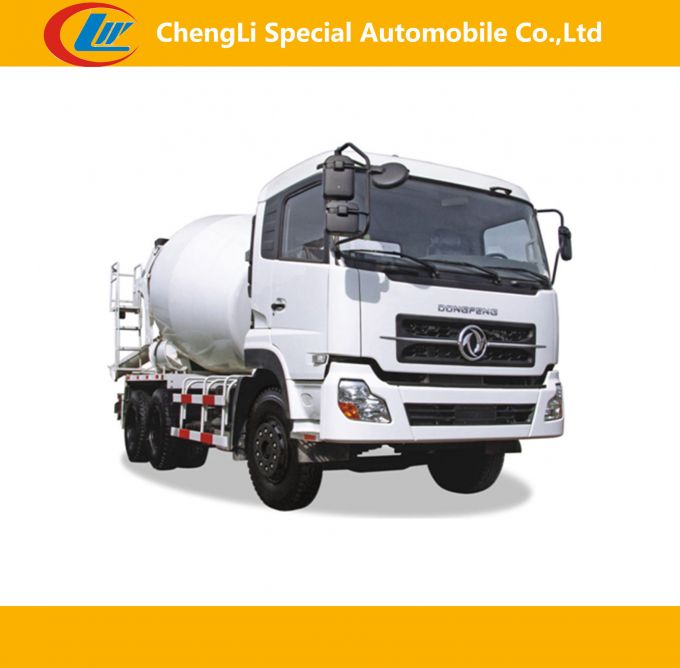

10,000L cement mixing truck
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Item | unit | parameter | |
Vehicle model | ZZ5251GJBN3841C | ||
Chassis model | ZZ1251N3841C | ||
Overall dimensions | mm | 8935*2490*3875 | |
Factual cubage | L | 8000-10000L | |
GVW | kg | 25000 | |
Rated loading capacity | 11980 | ||
Mass in working order | 12890 | ||
Wheel base | mm | 3750+1350 | |
F/R track base | 2047/1820 | ||
Approach/departure angle | ° | 20.5/22 | |
Exhaust/hp | ml/kw | 9726/247 | |
Max speed | km/h | 75 | |
Tire specification | 11.00-20 | Engine type | WD615.95E |
Traction system | 6X4 | transmission | 10-speed with over drive |
Number of axles | 3 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
Equipment | 1Mixer barrel rotation speed: 0-18 r/min 2Material discharging speed: >3.5Cubic meters /min 3Material remaining ratio:<1% | ||
Engine | CNHTC engine | ||
Production cycle | 10-15days | ||
Company: | HuBei ChengLi Special Automobile Co.,Ltd | ||
Country/Region: | China | ||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
