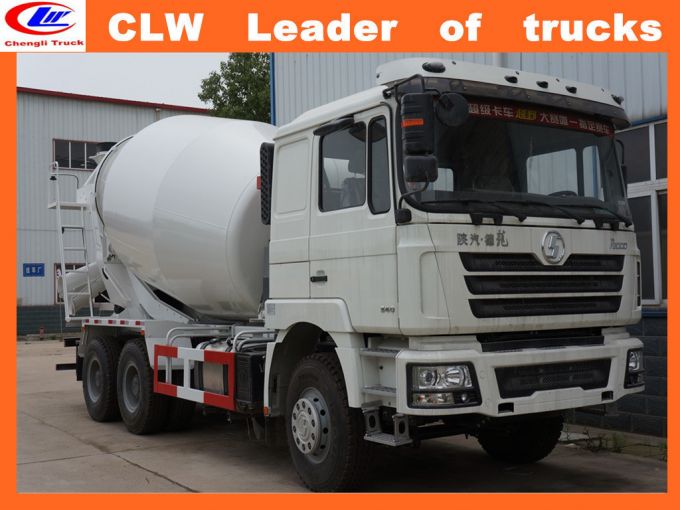

Shacman Concrete Mixer Truck 8 Cbm to 16 Cbm
- USD 24300.35 /Unit
- 1 Unit
- 16 Unit
- 7 days
Specifications
8CBM Dongfeng Concrete Mixer Truck
1. Dongfeng 6*4
2. 8cm capacity
3. LHD/RHD
4..flexible and convenient operating system
5. Factory direct sale
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
8CBM Shacman Concrete Mixer Truck parameter
| Type | SX5251GJBJM364 8m³-9 m³ | SX5234GJBJS384 9 m³-10 m³ | SX5254GJBJR404 10-12 m³ | SX5314GJBJS306 14-16 m³ | |||
| Wheelbase | 3650+1350 | 3800+1350/3750+1400 | 4325+1350/4375+1400 | 1800+3000+1350/ 1800+2975+1400 | |||
| Engine type(HP) | WD615.56(260)/WD615.50(280)/WD12.336(336)/WD615.34(340)/WD615.46(360)/WD12.375(375)/WD615.38(380)/ D12.420(420) | ||||||
| WEICHAI power | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling | ||||||
| Emission standard | EURO II | ||||||
| Overall Dimensions | 9130×2490×3900 | 9500×2490×3800 | 9345×2490×3774 | 10450×2490×3820 | |||
| Main assembly configuration | redactor | Italy PMB6.5SP | USA SAUER TMG61.2 | Italy PMB7.1SP | Italy PMB7.1SP | Italy PMB7.8SP | Germany wepuko PM80 |
| oil pump, motor | Italy PMH:P90 | USA SAUER T90P075/90M075 | Italy PMH:P90 | Italy PMH:P90 | Italy PMH:M110 | USA SAUER T90P100/90M100 | |
| radiator | Changzhou, China kaipeng (18L) | Changzhou, China kaipeng (18L) | Changzhou, China kaipeng (18L) | Changzhou, China kaipeng (20L) | Changzhou, China kaipeng (24L) | China kaipeng (26L) | |
| Upstructure configuration: | the material of front of the envelop δ8mm Q345 made by WISCO, mixing tank Q345 δ6mm 16 Mn wearable materials, high-alloy steel blade Q520JJ δ5mm (resistant materials), and equipped with 6mm wearable steel material, with pneumatic - pressure water supply equipment, water tank capacity 350L., traveling in10% gradient | ||||||
| Concrete slump range (mm) :140-220,Feeding-in rate 3 m³ / min,Discharge rate 1.1-1.4 m³ / min,Filling-up Rate 63%,Residual rate <0.3%,Sluice angle of 180 degrees horizontal | |||||||
| Mixing tank geometry volume 12.69 m³(8 m³)/14.29m³(9 m³) | |||||||
| Mixing tank geometry volume 15.87 m³(10 m³)/19.04m³(12 m³) | |||||||
| Mixing tank geometry volume 22.22m³(14m³)/25.39m³(16 m³) | |||||||
| Cltuch | φ430 Single plate, Diaphragm type | ||||||
| Gearobx | 9JS119/9JS135/10JSD160/ RTD-11509C/10JSD180/RTD-11509C/10JSD180/12JS160T/12JS180T | ||||||
| Steering | ZF 8098 domestic (imported Germany ZF brand is optional ) | ||||||
| Fule tank capacity(L) | 380L(400L/600L is optional, add one extra 200L tank depend on the available space) | ||||||
| Fram | Slotted straight beam, width 850mm / Vertical height 300 mm /thickness (8+7 mm) | ||||||
| Front axle | MAN technology 7.5 ton front axle | ||||||
| Middle/rear axle/ ratio | Steyr strengthened axle 13 ton(punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock), Steyr strengthened axle16 ton is optional. ratio/4.8, (4.42,5.73,6.72 is optional) | ||||||
| cab | MAN F2000 extra-length flat roof cabin, Four-point suspension; One sleeping bed with AC; Radio player, Safety belt, Adjustable air type; Dash board Dictograph; Sun protection on cabin, louver | ||||||
| Options: two sleeping ,Electric windows, electrical heat, GPS or CD, Macrographs, car phone, electricity reversal cab | |||||||
| tire | 12.00R20 (12.00-20/11.00R20/12R22.5 is optional) | ||||||
| Electrics | Starter 6.2kw(24V),Generator 2.2kw(28V 80A),Battery 2×135Ah | ||||||
| Brakes | Service brake with dual-circuit compressed air brake. Parking brake: Power spring brake acting on rear wheel. Auxiliary brake WEVB. (ABS+ARS are optional) | ||||||
Main parts parameter
| Special Fuction Description of Cement Mixer Truck | |||||
| hydraulic system | adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation. | ||||
| water supply system | using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle. | ||||
| mixing drum | adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio. | ||||
| operation equipment | including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation. | ||||
| feeding/discharging device | feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position. | ||||
| tank body spray-paint | tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable. | ||||
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
More information of our cement mixing truck/concrete truck mixer, please feel free to contact with Ms. Helen Jiang. We will customize the truck according to your requirement.
Contact way::
Sales representative: Wendy Cheng
phone number: (+86) 13697357315
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
