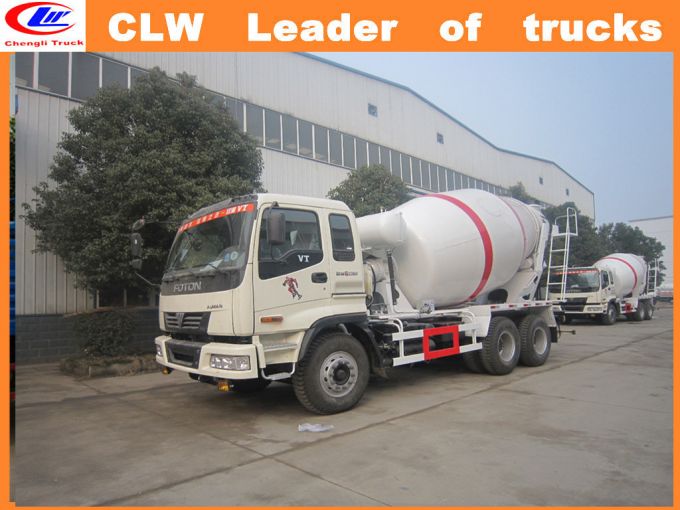

Foton 6*4 Concrete Mixer Truck
- USD 22300.25 /Unit
- 1 Unit
- 84 Unit
- 21 days
Specifications
8CBM Foton Concrete Mixer Truck
1. foton 4*2
2. 6cm capacity
3. LHD/RHD
4..flexible and convenient operating system
5. Factory direct sale
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Description of Foton 6*4 concrete mixer trucks
Truck name | 4m3,6m3 Concrete mixer truck | CLW | |
| Truck type | Left hand drive or right hand drive | ||
| Truck model | BJ5163VLFHA | ||
| Inspection | Yes | ||
| Fuel type | Diesel | ||
| Certificte | ISO andCCC | ||
| Drive type | 4x2 | ||
| Model number | p6(256) | Truck item | 9 |
| China brand | FOTON, forland | Manufacture | Chengli special automobile co.,ltd |
| Engine | YC4D130-41 | Engine power | 96 |
| YCD4F2L-115 | 85 | ||
| CA4DF4-17E4 | 127 | ||
| Displacement | 4200 | / | / |
| 3922 | |||
| 4750 | |||
| / | / | Fuel type | Diesel |
| Vehicle size | 6825,6460,7125×2480,2300×3450,3600 | Refrigerator Box size | ×× |
| Total mass | 13560 | Loading size | / |
| Curb weight | 5860 | Rated mass | 7505 |
| A/D angle | 29/20 | F/R hang | 1245/1980 |
| 29/22 | 1245/1815 | ||
| Wheelbase | 3600 | Wheel loading | 5150/8410 |
| 3400 | |||
| 3900 | |||
| Axles quantity | 2 | Max speed | 80 |
| / | 29.51,29.70,30.12 | Leaf spring quantity | 9/11+9 |
| Tyre quantity | 6 | Tyre size | 8.25-20 16PR,8.25R20 16PR,9.00-20 16PR,9.00R20 16PR |
| Front track | 1790 | Rear track | 1725 |
| Engine Standard | GB17691-2005 Euro III,GB3847-2005 | ||
| Vin number | LVBV5PDB××××××××× LVBV5PBB××××××××× | ||
| Condition | New | ||
| Place of origin | Suizhou city , hubei province | ||
| Brand name | FOTON, FORLAND | ||
| Model number | BJ5163VLFHA | ||
| Weight | 13560kg | ||
| Dimension | 6825,6460,7125×2480,2300×3450,3600 | ||
| Power | 130HP | ||
| Certificate | ISO9001:2008 , CCC , B&V | ||
| Warranty | 1 year | ||
| After-sales service provided | Engineers available to service machinery oversea | ||
| frame | 250mm | ||
| Feeding speed | M3/min≥ 3 | ||
| Unloading speed | M3/min≥ 2 | ||
| Discharge reside rate | %< 0.5 | ||
Main parts parameter
| Special Fuction Description of Cement Mixer Truck | |||||
| hydraulic system | adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation. | ||||
| water supply system | using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle. | ||||
| mixing drum | adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio. | ||||
| operation equipment | including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation. | ||||
| feeding/discharging device | feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position. | ||||
| tank body spray-paint | tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable. | ||||
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
More information of our cement mixing truck/concrete truck mixer, please feel free to contact with Ms. Helen Jiang. We will customize the truck according to your requirement.
Contact way::
Sales representative: Wendy Cheng
phone number: (+86) 13697357315
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
