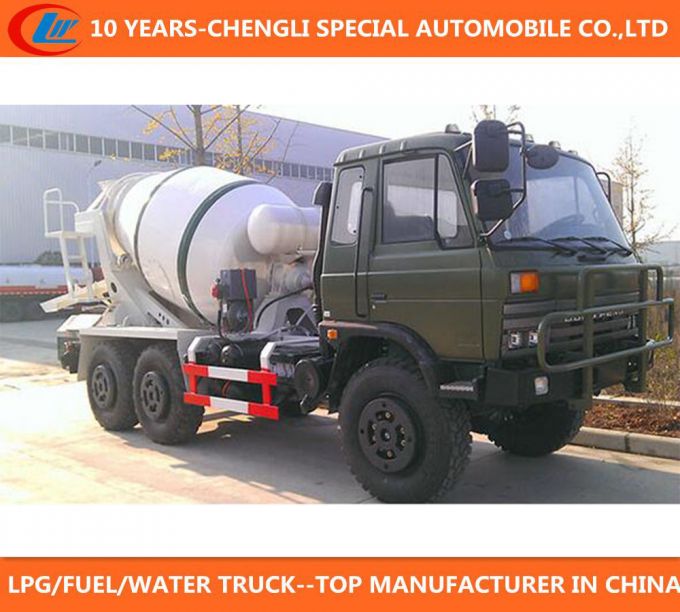

5cbm 6X6 Euro 3 Concrete Mixer Truck
- USD 45000.51 /Unit
- 1 Unit
- 92 Unit
- 12 days
Specifications
1, Adopts military chassis, tailored.
2, Strong driving force, large tires, strong climbing ability.
3, Aim at complex areas such as deserts, mountains, forests, etc.
4, Having been accepted for many country, sensible choice for your business.
5, Not only beautiful appearance, but also powerful, wide range of application.
6, High Quanlity &Reasonable Price.
7, Concrete mixer truck mounted Dongfeng brand chassis.
8, 6WD/185HP Concrete mixer truck.
9, CLW-Group, have 11 years experience of the water tank truck, should be trust.
Product parameters
| Description | 5CBM 6x6 Euro 3Concrete Mixer Truck | |
| Drive Model | 6x6 | |
| Chassis | Chassis brand | Dongfeng |
| Chassis model | DFS5160GLJ | |
| Vehicle Main Dimensions | Dimensions(L xW xH)(mm) | 7760*2500*2845 |
| Wheel base (mm) | 3500+1250 | |
| Overhang (front/rear) (mm) | 1385/1815 | |
| Wheel track (front/rear) (mm) | 1916/1876 | |
| Approach/Departure angle(°) | 35/30 | |
| Weight in KGS | Curb Weight(kg) | 7955 |
| GVW.(kg) | 16500 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | ISDe185 40 |
| Type | 4-stroke direct injection ,6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Engine power(kw) | 136 | |
| Engine displacement(ml) | 6700 | |
| Emission standard | Euro3 | |
| Gearbox | 6 forwards &1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 12.5R20 | |
| Upper | ||
| Volume | 5CBM | |
| Water Supply Patterns | Air Pressure | |
| Material | Q235/Q345/Q700 | |
| Water Tank Capacity | 400(L) | |
| Thickness | 6(mm) | |
| Rotation Speed | 0-18(r/min) | |
| Discharging Speed | 2(m3/min) | |
| Material Remaining Ratio | ≤0.6% | |
| Angle of Inclination | 11°-13° | |
Why choose us.
ChengLi Special Automobile Co.,LTD.
In the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004
There are totally 8,000 workers in factory and can supply 800 types of trucks. In 2014, our total sales revenue reach $300 million.
Over the past 11 years, our group made agreat achievements in the special vehicle circle, our products have been sold to many country around the world, such as Nigeria, Vietnam, Garner, Uganda, Singapore, Malaysia, Congo, Cameroon etc.
There're many type trucks in our company, because we built up along cooperate relationship with many famous brand chassis manufacturer, such as Sinotruk, Dongfeng, Foton, Shacman, JAC, JMC, ISUZU, FAW etc.
Look forward to the future, we are confident, we truct we can do better! We will pay more attention to the quality of the products, that's what we always do!
Customised Truck &Trailer Solutions to Meet Your Requirements
Our main products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
We can customize the truck you on basis of your requirements, just contact with us!
Mr. Jacky-Ke
Sales Representative
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel&Fax: +86-27-83796298
Mobile: +86-13667212560+86-13872881765
Facebook: jackyke123
Web: http://www.clwvehicle.com
Customised Truck &Trailer Solutions to Meet Your Requirements
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
