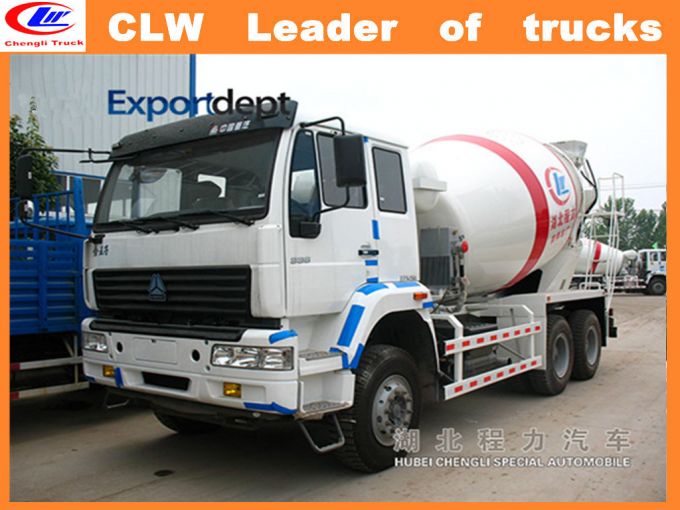

Sinotruk HOWO 6*4 Concrete Mixer Trucks for Sale

Specifications of 8CBM Sinotruk Howo Concrete Mixer Truck
1. Sinotruk 6*4
2. 8cm capacity
3. LHD/RHD
4..flexible and convenient operating system
5. Factory direct sale

Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hoppe

8M3 sinotruk howo concrete mixer truck 6*4 specification

Chassis Model	Mixer Truck 2014 - 8 CBM ( Left Hand Driving Type)
Weight	Complete kerb mass (kg): 13430 GVW (kg): 32500
Dimensions	LxWxH (mm): 9130x2490x3950 Effective volume(m3): 8 Front/rear overhang(chassis): 1525/2630 Wheel base (mm): 3625+1350
Performance	Max. speed ( km/h): 88 Min. turning circle (m): 17.8 Min. ground clearance (mm): 314 Approach/Departure angle(°): 20/19
Production Year	2014, new truck.
Cabin	F2000, Lengthened flat roof, one sleeper with air conditioning. Hydraulic suspension cab, hydraulic chair with seatbelts, 1 sleeping bed, 4 point are suspension, A/C
Engine	WD615.50, Euro 2, 290HP, WEICHAI brand,
Displacement	9.726L
Transmission	FAST 9JS135, 9F & 1R
Clutch	Single plate, diaphragm spring. D-430, Mechanical type, hydraulic and pneumatic operation
Steering	ZF8098, power steering with hydraulic system.
Front Axle	MAN, 1x7500 KGS
Rear Axle	STR13, 2x13000 KGS, 13000kg,Double reduction driving axle with inter-wheel differential and differential lock
Tyres	12.00R20, steel radial tyres with one spare tyre. 10+1
frame	8+5 mm double strengthen frame
Fuel Tank Volume	380L
Tank Body	8 Cubic Meters, double helix blades three-dimensional stirring system.
Tank Body thickness	5mm
Helix Blades	4mm
Water Tank Volume	400L
Mixer Pump	Eton (USA Brand)
Motor	Eton (USA Brand)
Speed Reducer	Bonfiglioli (Italy Brand)
Overall Truck Dimension	9130*2550*3800 mm

Main parts parameter

Special Fuction Description of Cement Mixer Truck
hydraulic system	adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation.
water supply system	using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle.
mixing drum	adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio.
operation equipment	including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation.
feeding/discharging device	feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position.
tank body spray-paint	tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable.

We can also offer the hydrualic concrete drum seperatly.


BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
More information of our cement mixing truck/concrete truck mixer, please feel free to contact with Ms. Helen Jiang. We will customize the truck according to your requirement.

Contact way::
Sales representative: Wendy Cheng
phone number: (+86) 13697357315

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
