4X2 3cbm-4cbm Mini Cement Mixer Dongfeng Concrete Mixer Truck

  • 4X2 3cbm-4cbm Mini Cement Mixer Dongfeng Concrete Mixer Truck
  • USD 24000.29 /Unit
  • 1 Unit
  • 64 Unit
  • 20 days
Product Description
Specifications:
Dongfeng 4X2 3cbm-4cbm mini Concrete cement Mixer Truck
1. Fast gearbox, Cummins or Yuchai engine
2.10.00R20 steel tire
3. Best price.

Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.

Bulk shipping for mixer truck:



BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Our trucks exported to many countries:



More information of our cement mixing truck/concrete truck mixer, please feel free to contact with Ms. Helen Jiang. We will customize the truck according to your requirement.
Sales Manager: Mr. Kitter Zhou
Mob.: 0086-136 6713 2330

MainTechnicalParameter

ProductName

Cement Mixer , concrete mixer

ProductModel

CLW5120GJB3

GrossVehicleWeight(kg)

7490

CurbWeight(kg)

4300

TankCapacity(m³)

3m3-6m3

CabAllowedPersons

3

AxleNo.

2

Wheelbase(mm)

3500+1350

ChassisTechnicalParameter

ChassisModel

EQ3073GJ

ChassisName

Truck Chassis

ChassisBrand

DONGFENG

Manufacturer

DongfengAutomobileCo.,LTD

OverallDimension(mm)

6850 ×2490 × 3180

TyreNo.

6 with1sparetyre

App./Dep.Angle(º)

25 / 28

TyreSpec.

8.25 - 20/9.00-20

LeafSpringNo.

9 /11+8

FrontTrack(mm)

1050

FuelType

Diesel

RearTrack(mm)

1 050/200

DriveType

4 x 2

BrakeSystem

Airbrake

Steering Wheel

LHD or RHD

GearBox

FAST5 speedforwardand1reverse

EngineTechnicalParameter

EngineModel

YC4E140-20

EmissionStandard

EuroII

Displacement(mL)

4300

Power

140HP

CylinderNo.

6inline

EngineType

inter-coolingcharged, built-inEGR

Superstructure Parameter

MixingDrumCapacity

3 cubic meters to 6cubicmeters

DrumMaterial

Q345

HydraulicSystem

imported,Chineseareoptional

Reducer

imported,Chineseareoptional

Radiator

Chinese

WaterTankCapacity

400L
Product Images

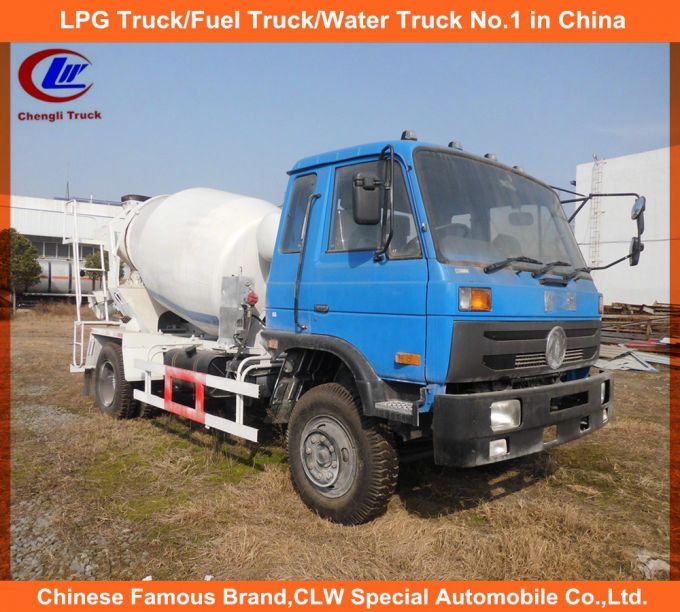

4X2 3cbm-4cbm Mini Cement Mixer Dongfeng Concrete Mixer Truck Images 1
Factory Show

Chengli Special Automobile Co., Ltd.

  Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.

  We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.

Factory Show

  Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive", promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.



Customer Visit

Customer VisitCustomer Visit

Our Services

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging & Shipping

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container

Chengli Special Automobile Co., Ltd.Packaging & Shipping
