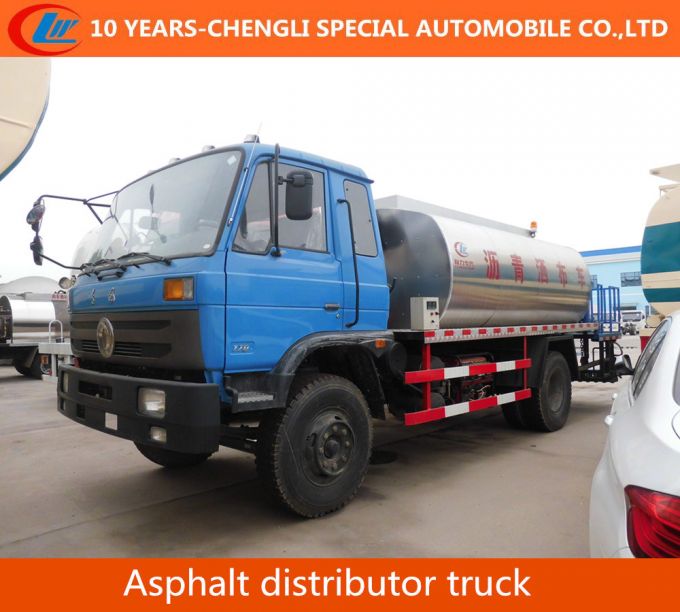

8000L Asphalt Transport Tank Truck/Liquid Heated Bitumen Tank Truck
- USD 28500.30 /Unit
- 1 Unit
- 50 Unit
- 10 days
Manual/automatic control spaying amount and homework width, each nozzle can be individually controlled, determinant nozzle free combination, so as to realize arbitrary adjust the width of spray.
| tem No. | Parameters |
| Chassis | |
| Gross Vehicle Weight | 15990kg |
| Curb Weight | 8495kg |
| Loading Weight | 7300 Kg |
| Wheel base | 3950 mm |
| Front/rear Tread | 1940/1860mm |
| Approach/Departure Angle | 32/15 degree |
| Front Axle | 6000kg |
| Rear Axle | 10000kg |
| Engine | B190 33 Cummins Diesel Engine, watering cooling, four stroke, 6cylinder in line |
| Engine horsepower | 190HP EURO III |
| Displacement | 5.9L (Diesel) |
| Max Driving Speed | 90 km/h |
| Carbin | Dongfeng tianjin carbin~3 Passenger allowed, Left Hand Driving, with Air Conditioner |
| Tire | 10R22.5 (6 pieces+1piece spare tire) |
| Asphalt Tank | 8cbm |
| Outside Material | Stainless plate |
| Insulation layer | ≤20ºC/8h |
| Hydraulic System | |
| Hydraulic pump | CQB550-L |
| Driving Motor | 05-110-BD31 |
| Proportional Valve | EFBG-03-160-HF/Taiwan brand |
| Shuttle Valve | Shanxi Yuci brand |
| Overflow Valve | Shanxi Yuci brand |
| Control System | |
| Control System | CLW-48-01/Germany Siemens |
| Control Method | Computer control |
| Smart asphalt nozzle | 48 pcs |
| Heating System | |
| Heating method | Automatic heating by oil |
| Burner | G20/Italy brand |
| Radiator | Risheng brand |
| Heat transfer oil pump | 40-25-160 |
| Gasoline Engine | 5.5kw |
| Spreading Width | 4m |
| Spreading Speed | 0.2~3.5L/min |
| Spreading Precision | ±2% |
Photo only for reference, final product can be made according to exact requirements
