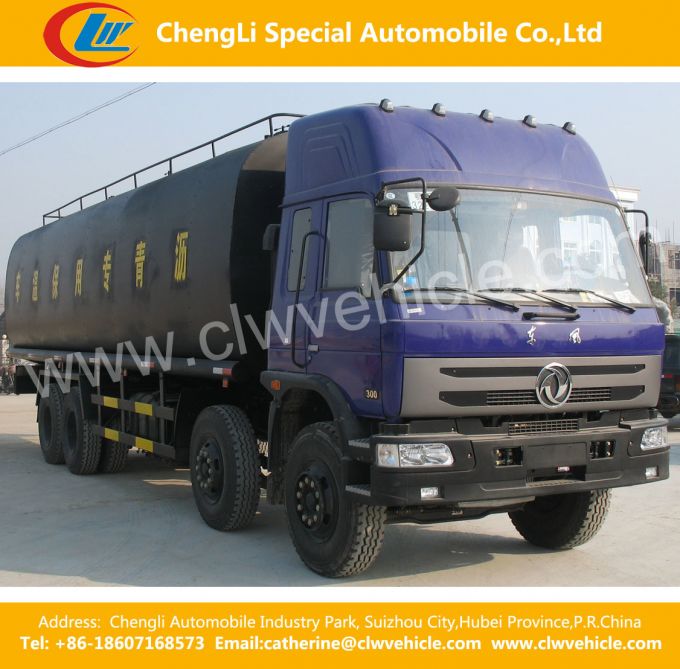

Dongfeng 8*4 Heavy Duty Asphalt Distributor Truck
- USD 28500.44 /Unit
- 1 Unit
- 58 Unit
- 10 days
Technical features:
1. Synchronous chip sealer adopts famous brand chassis with reliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and with good performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside for convenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air. The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It is comfortable for driving and convenient for use.
Our advantage:
Competitive Price and Excellent Quality,
More than 10 years' experience as a manufacturer
CCC, ISO, BV certification
Perfect after-sale service
Customized products available with us,
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
8x4 Dongfeng25.4-27.6 Ton Asphalt Distributor Truck | ||||||||||
Main parameter | Model No. | CLW | Emission Standard | Euro III | ||||||
G.V.W(Kg) | 31000 | Overall dimension (mm) | 11990×2500×3300,3690 | |||||||
Curb weight(Kg) | 13970 | Fuel | Diesel | |||||||
Axle Load(Kg) | 6400/6600/18000 | Cabin | 2 or 3 passengers allowed) | |||||||
Chassis parameter | Chassis model | DFL1311A4 | Tire | 10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5 | ||||||
Approach/departure angle (°) | 25 / 10 | Front/rear Tread(mm) | 1940/1940,2027/2027,2040/2040/1860/1860 | |||||||
Wheelbase(mm) | 1950+4250+1300,1950+4250+1350,1950+4500+1300,1950+4500+1350,1950+4500+1430,1850+,1850+4600+1350 | Front/rear suspension (mm) | 1460/3030,1460/2980,1460/2780 | |||||||
Leaf of springs | 10/12,4/12 | Tire no. | 13(including 1spare tire) | |||||||
Engine | Engine model | ISLe340 30 | Manufacturer | Dongfeng Cummins | ||||||
Max. Power(Kw) | 250 | Displacement(ML) | 8900 | |||||||
Max.Speed(km/h) | 80 | Horsepower(HP) | 340 | |||||||
Spray Specification | Tank Capacity(m3 ) | 22.09 | Spray width(m) | 4.5-6 | ||||||
Materials | Q235 | Spray Value(L/m3) | 0.2-3 | |||||||
Hydraulic pump model | CBQ550-L(Yuci) | Asphalt pump | QGB950 | |||||||
Burner | G20 ( Itally Riello ) | Controller | CLW-48-01(Germany Siemens)Computer-controlled | |||||||
Nozzle | 48 Intelligent asphalt spray | Generator(Kw) | 5.5 |
Chengli Special Automobile Co., Ltd
Factory Add:ChengliAutomobileIndustryPark,SuizhouCity,
HubeiProvince,P.R.China
Export:Room3102,Block7,FanhaiInternationalSOHOTown,
JianghanDistrict,Wuhan,HubeiProvince,China
Catherine YEE
/Mob:(+86) 18607168573
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive", promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
