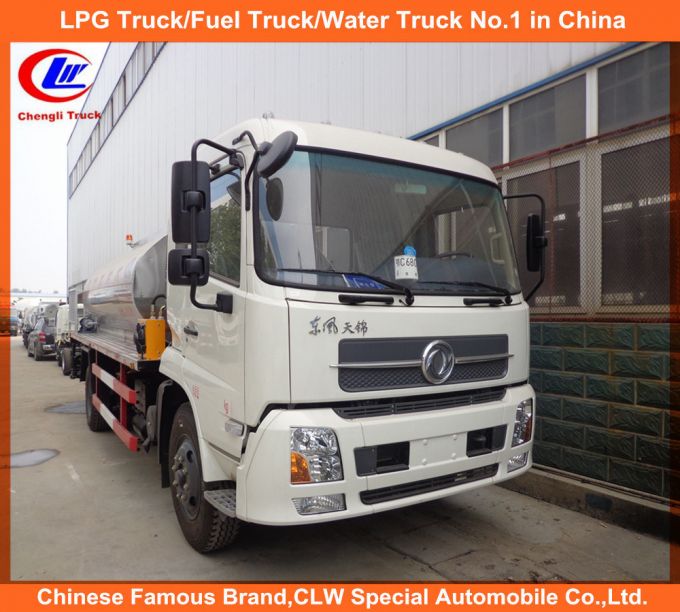

Dongfeng Tianjin 4*2 190HP Asphalt Distributor Truck
- USD 65000.72 /Unit
- 1 Unit
- 15 Unit
- 8 days
Competitive Price and Excellent Quality,
More than10years' experience as amanufacturer
CCC, ISO, BV certification
Perfect after-sale service
Customized products available with us,
Export covering More than50countries and regions
Annual production value topped1500, 000, 000 RMB(240, 000, 000 US dollars) per year
EastorWest,ChengliSpecialAutomobile Co., Ltd is the Best.
Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
LPG tankisone ofour most advantageouskeyproducts which ranksTop 5in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tankworkwellwith 10-20 years use life.
Synchronous Chipsealer/Road Construction Equipment/Asphalt macadam/Roading maintance truck/ automatic asphalt distribution truckdeveloped by our companycoveringSINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMCbrand, ismainly used for road paving.Theasphalt and gravel distributor truckconsists of asphalt tank, gravel tank, hydraulic system, heating system, cleaning system, control system and liftingmechanism, etc. The chip sealer is akind of hi-tech road construction equipment at the international level. Compare with its counterparts, our chip sealers are of high automation, even spray, easy operation, large loading capacity and great efficiency.
TechnicalFeatures
1. Synchronous chip sealer adopts famous brand chassis withreliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and withgood performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside forconvenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air.The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It iscomfortable for driving and convenient for use.
Chengli Special automobile Co., Ltd also provide products as follows:
1.LPG Tank Truck Trailer/Fuel Tanker Truck
2.Water Truck/ Water Tank Truck /Water Sprinkler Truck/Water Tanker
3. Truck with crane /Truck Mounted Crane
4. Dump Truck /Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck /Fire Truck /Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14.Sweeper Truck
15. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
1)For more information, pleasecontact usFreely
2)Contact person:Shirley Fu
3)Telephone number: +(86)-138 7288 2021
6) To see is to believe. Welcome to visit Chengli Special Automobile Co., Ltd.
Parameter
| Massparameter: | ||||
| cur bWeight(kg) | 9750 | TotalWeight ( kg ) | 16000 | |
| RatedloadingWeight(kg) | 6055 | Dimension(mm) | 8998 × 2490 × 3200 | |
| ChassisParameter : | ||||
| ChassisModel | DFL1160BX | Tyremodel | 9.00-20,9.00R20 | |
| Wheelbase(mm) | 5000 | Treadmm | 1815/1800 | |
| FrontOverhang(mm) | 1430 | RearOverhang(mm) | 2568 | |
| Approachangle , Departureangle | 20 ° /14 ° | MinimumGroundClearance(mm) | 250 | |
| Engineparameter : | ||||
| Enginemodel | B19033 | Manufacturer | DongfengCumminsEngineCo.,Ltd. | |
| Max.Power(kw) | 140/2400 | Max.Torque(N.m) | 550/1300-1800 | |
| Fuel | Diesel | Displacement(ml) | 5900 | |
| Sprayspecification : | ||||
| TankCapacity(m ³ ) | 8 | Spraywidth | 6000mm | |
| Hydraulicpumpmodel | CBQ-F540 | SprayValue | 0.5-3.0 ( Kg ) | |
| Hydraulicmotor | L2F63W2P2 ( Liyuan ) | InsulationThickness | 50mm | |
| Controller | ZM - I | Nozzles | 39 | |
| Burner | G20 ( Riello ) | Asphaltpump | QGB450 | |
| Generator(Converter) | EC6500CX | |||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
Standard Type 5mt AsUS $28900.00 /Unit -
Normal Type 3ton AspUS $23000.00 /Unit -
3ton 4ton Bitumen SpUS $23000.00 /Unit -
HOWO 10t Bitumen DelUS $47800.00 /Unit
