Chemical Sulphuric Acid Tanker Semi Trailer 25mt for Sale
- USD 28500.34 /Unit
- 1 Unit
- 98 Unit
- 25 days
3 Axles Sulfuric Acid Tanker Semi Trailers, chemical tanker liquid trailers H2SO4, HCL for sale
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
Main parameter
| Product Model | CLW9406GHY Chemical Liquid Semi -trailer | Overall Dimension(L*W*H)(mm) | 11000×2500×3800 |
| Tank Volume(m 3 ) | 38 | Tank Dimension(mm) | Front-end(3900×2480×1800) rear-end(6800×2480×2050) |
| Gross weight (kg) | 40000 | Approach/ departure angle ( ° ) | -/18 |
| Payload(kg) | 32000 | Front/ rear suspension(mm) | -/1500 |
| Curb weight(kg) | 8000 | Leaf Spring number: | -/8/8/8,-/10/10/10 |
| Axle number | 3 | Front/Rear axle load(Kg) | -/24000 (three axles combined) |
| Wheelbase(mm) | 5700+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
| Tire size | 11.00R20 12PR | Tire No: | 12 with a spare tire |
| Warranty | 12 months, from the date of supply | ||
| Remarks | 1. Traveling mechanism:13T FUWA axle | ||
| 2 tank inner lining plastic, tank thickness is 6mm carbon steel | |||
| 3. The distance from the floor to rear protective is 540mm, protect material: Q235 carbon steel. With ABS | |||
| 4. This semi trailer truck mainly used in transport Xylene , etc corrosive liquid | |||

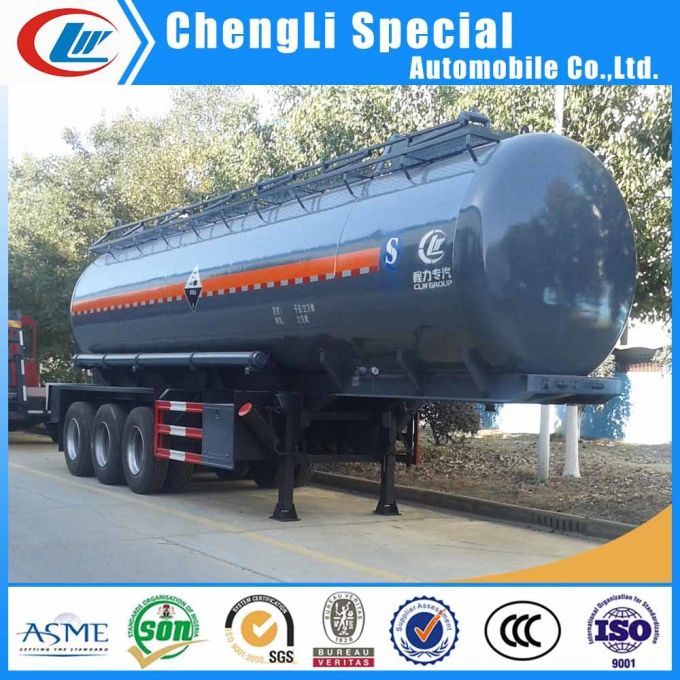

More detailed pics forChemical Sulfuric Acid Tanker Semi Trailers
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Contact person: Krystal Zhang
Tel: +86-15171412234
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
