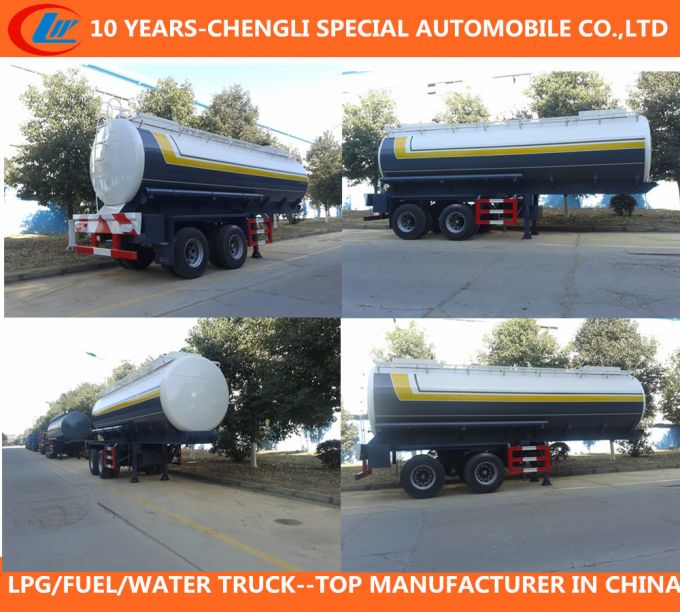

2 Axles Acid Chemical Tanker Semi Trailer
- USD 13200.22 /Unit
- 1 Unit
- 74 Unit
- 14 days
Techincal data as follows,
| SPECIFICATION | ||||||||
| DIMENSIONS | ||||||||
| Parameters name | Unit | Parameters size | ||||||
| Tare weight | kg | 35000 | ||||||
| Overall size | mm | 8600*2490*3650 | ||||||
| Wheelbase | mm | 4700+1310 | ||||||
| TANK | ||||||||
| Shape | / | monoblock | ||||||
| Tanker size | mm | 8300*2450*1650 | ||||||
| Fact volume | m3 | 23.82 | ||||||
| Tank body material | / | 5-6mm /Q235/carbon steel | ||||||
| Inner Linning | / | 16mm plastic | ||||||
| Parts for tank | ||||||||
| Manhole cover | / | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve3X500mm | ||||||
| Unloading valve | / | 2 sets of DN80 fixed at button of Tank | ||||||
| Pipeline at button of tank | / | 4"seamless steel tube/Q235100MM | ||||||
| Labeling system | / | Oil Type Indication | ||||||
| Anti-static electricity system | / | pulling, wire carrier, sheet copper (6sheet, reasonable layout) | ||||||
| Other Parts | ||||||||
| Ladder | / | 1 unit at front of Tank | ||||||
| Guard on top of Tank | / | Zinc galvanizing net | ||||||
| Oil hose box | / | Circular single hole tube, 1unit on each side | ||||||
| Oil hose | / | 2 unit, 3"x 6mm size in black rubber | ||||||
| Side guard | / | cross bar structure | ||||||
| Rear button guard | / | Fixed type | ||||||
| Work tank deck | / | Box type | ||||||
| Fire extinguisher box | / | 2 unit at back of each side | ||||||
| Mud guard | / | trapezoid structure in steel | ||||||
| Lights and wire | / | 24V, 7coils with lights for parking, reverse, instruction, head lamp and end lamp | ||||||
| CHASSIS | ||||||||
| Main beams | / | Heavy duty and extra durability designed Ibeam;Opting for high tensile steel Q345B,welded by automatic submerged-arc processes | ||||||
| Axle | / | 2 axles,BPW, L1 or FUWA -optional upon requirement | ||||||
| Numbers of tire | pcs | 8+1 spare tire | ||||||
| Landing Gear | / | JOST brand two-speed,manual operating,heavy duty lading gear | ||||||
| King Ping | / | JOST brand 2" bolt-in king ping | ||||||
| Suspension | / | Mechanical suspension | ||||||
| Pneumatic braking system | / | WABCO RE 6relay valve;T30/30+T30 spring brake chamber;40L air tanks | ||||||
| Wheel rim | / | 8.5-20 | ||||||
| Tire | / | 11.00R20 | ||||||
| Numbers of tire | pcs | 8+1 spare tire | ||||||
| Painting | / | Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime, 2coats of final paint | ||||||
| Accessories | / | One standard tool box | ||||||
Our company:
Chengli Special Autobile Co, ,Ltd specilized in All kinds of Tank truck, Dump Truck, Crane truck, mixer truck, Bulk Cement Truck as well as many kinds of semi trailers. LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
If you are interested in our product, please feel free to contact me.
Miss. Cherry Zhou
Address:Chengli Automobile Industry Park,Suizhou City,Hubei Province,P.R.China.
Tel/Fax:+86 2783796298
Mobile/Whatsapp/Wehcat: +86 15171731532
www.clwvehicle
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
