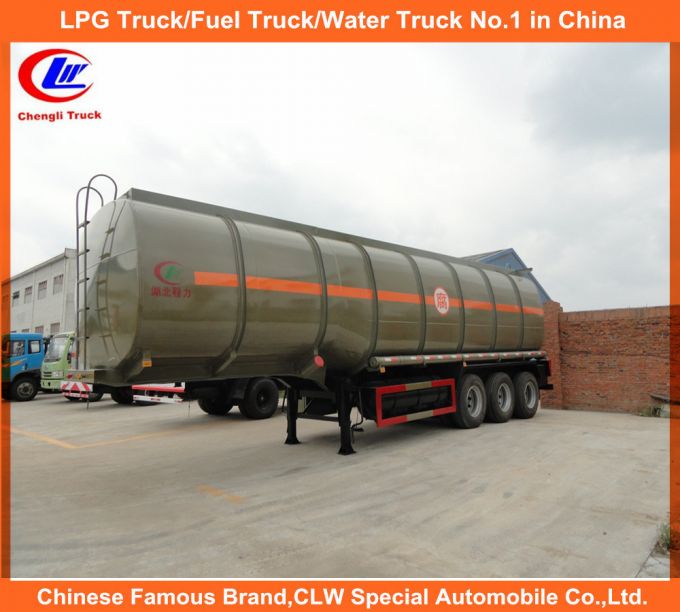

API 40cbm Fuel Tank Semi-Trailer for 30ton Diesel Transport Tanker

Features:
1. Gooseneck structure,
2. Light weight,
3. High strength,
4. High safety level,
5. Easy operation


CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

CLW main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Dimension (mm)	11900x2500x3900
Loading Weight( KG)	40 000
Volume( CBM )	42
Material	Steel
Tank thickness(mm)	Tank Body is 5mm, and front and back plate is 6mm.
Main beam	The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm.
Axle Brand	FUWA 13ton axle
Axle Number	3
Compartment	3
Manholes	3
Spill Discharges	3 4 inches/each
Wheelbase ( mm )	1320/1320
Suspension system	Mechanical suspension
Steel Spring	10 / 10 / 10 leaf spring suspension
Tire Type and quantity	12R22.5 12units
Landing Gear	Standard 28ton
Traction Pin	90mm
Spare Wheel Bracket	2 pieces
E mergency valve	1 pieces
Ladder	One ladder in the back
Walkway	On the top
Tool Box	1 Standard
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	A bit higher from the tire
Painting	While color

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
