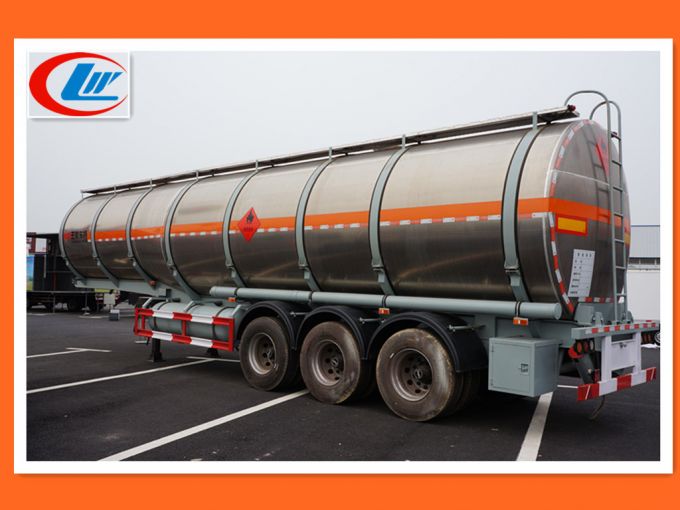

45000L Aluminium Alloy Fuel Tank Trailer

3 Axle Aluminum 45m3 Fuel Tank Semi Trailer

The advantages of producing tanks from aluminum alloys:
1. Maximum solidity and lightness of the construction;
2. Reducing transport costs by 1 ton of the transported goods;
3. Improving safety of transporting hazardous goods (not subject to corrosion, wearproof, spark-proof)
4. The lightest vehicles, with maximum volume and a long service life for all types of cargo

The Aluminium Alloy semi trailers is applied to transport OIL, FUEL, DIESEL, WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long distance. It's an ideal equipment to transport oil from oil storage field to oil plant, and transfer oil from refinery and wharf to oil storage field. It is also been used in refueling service station.



CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

CLW main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


Seeing is beliving, CLW SPECIAL AUTOMOBILE CO., LTD welcome you!

PARAMETER	Dimension(mm)	L*w*h: 12972x2500x3750(mm)
	King pin setting(mm)	1715mm
	Kin pin plate height (mm)	1366mm
	Axle space(mm)	7060mm+1310mm+1310mm
	Tare weight	7500kgs
	Loading capacity	47000L (Valid 45500L)
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	Jost 2" bolted type
	Brake system	Wabco brake valve;
	Abs	4s/2M
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	Air bag Suspension
	Axle	Fuwa axle,13 ton capacity/set,3sets
	Tire	425/65R22.5-20pr , 6 pcs Double Coin Brand;
	Rim	13.0-22.56pcs, Aluminium Alloy
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	Three,15000l/15000l/15000l
	Tank material	Aluminium Alloy, thickness 6mm,5mm
	Bulkhead and Bafflr	Thickness is 7mm
	Tank Shell	Thickness is 6mm & 5mm
	Shape of tank	Ellipse (double "d")
	Test pressure designed	36kpa
	Manhole	20"Aluminium Alloy Manhole Cover, C801-560,
	bottom valves	3, Aluminium Alloy
OTHERS	Oil Gas recovery System	Equiipped
	Anti-overflow System	Equipped

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
