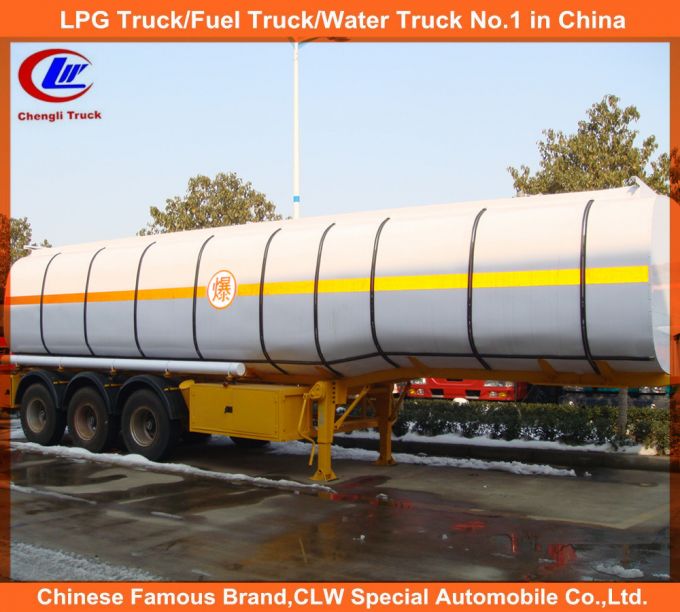

3 Axle 45000liters Carbon Steel Fuel Tanker Semi-Trailer

Tri-Axle 45000liters carbon steel Fuel Tanker semi-Trailer.

Our tank CKD or SKD by container is available!
1 specially for carrying oil/fuel, like diesel or petrol or gasoline
2 safety guaranteed.
3 more than 60 years experence of making special trucks and various trailers for exporting

Fuel tanker series
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as asingle compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally
Chengli Special Automobile Co., Ltd is aprofessional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )

We sincerely welcome you to visit our factory and provide your precious suggestion for us!

Sales Manager: Mr. Kitter Zhou

Mob: +86 136 6713 2330

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

WeightParameter	Complete Vehicle Kerb Mass (kg)		12800
	Maxim Umperissible gross laden Weight (kg)		29800
	Gross Combination Weight(kg )		42500
Dimension Parameter	ExternalDimensions(mm)	Length	12980
		Wide	2500
		High	3550
	wheelbase(mm)		7200+1310+131050n pipeond compartmentd pump out)he cabin
	Loading capacity (Liter )		50000
Material	Q235B and the thickness is 6mm.
Axle	13Ton x3 axle, Fuwa brand with ABS, L1, BPW Brand is optional
Suspension	Mechanical spring
LandingGear	JOST brand two-speed, manual operating, heavy duty landing gear.
King pin	JOST Brand
Tire	12.00R20 (Dunlop brand)
ABS	Has
Notice	1.It has six compartments . 2.Equipmented with one pump for these three compartments, it will take the power from the engine of the tractor. It can pump the fuel out. 3.One fuel flow gauge, It can show the flow when pump the fuel out. But it cann't save the record, please write down the record manually. 4.Ball float fuel level meters. 5.High man holes; two piping's, and two fire extinguishers. 6.Discharge outlet. 7.Overfill detection.

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
