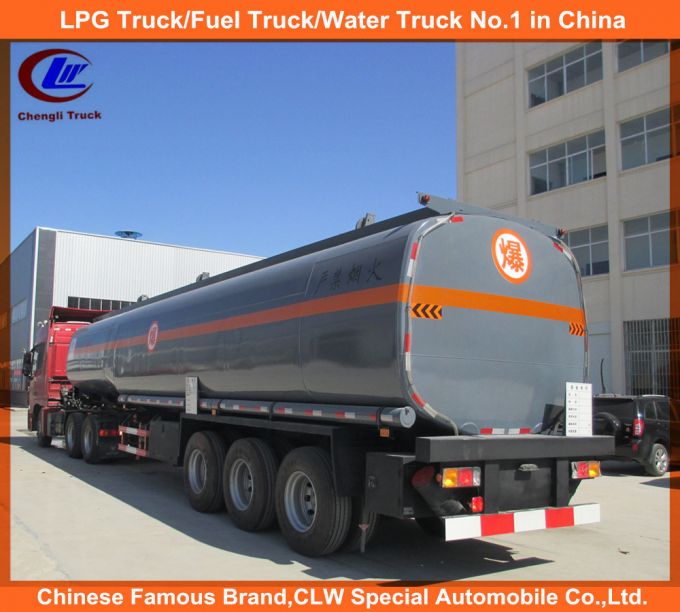

30mt Payload 40000litres Fuel Tank Semi Trailer
- USD 34800.37 /Unit
- 1 Unit
- 23 Unit
- 24 days
1. Total Volume 35-45cbm
2. King Pin JOST brand
3.50-60 ton
4. Durable chassis
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special trucks and trailers as well as other special equipment.
1. We can supply all brands of special trucks, such as, Faw, Foton, Shaanxi, Sinotruck, JAC, JMC, Isuzu, Dongfeng.
2. Factory export department directly sale
3. Export experience more than 12 years
4. Cheap / competitive price, high quality, you get more than your paid
5. With CCC, ISO, BV approved
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel
| 3 AXLE OIL TANK SMEI TRAILER | |||||
| DIMENSIONS | |||||
| Tare weight | 9000kg | Volume | 40m3 | ||
| Overall length | 11980mm | Overall width | 2500mm | Overall height | 3800mm |
| SPECIFICATION | |||||
| Tank body | Q235/5mm steel shape :monoblock cylinder | ||||
| End plate | Q235A/6mm steel sheet | ||||
| Axle | Brand | Fuwa | Capacity | 13T | |
| Suspension | Mechanical suspension | ||||
| Leaf spring | Leaf spring or air bag | ||||
| Manhole cover | 500mm manhole cover .2 sets with 2 breather valve. | ||||
| Tire | 11.00R22.5 | ||||
| Discharge valve | 4 inch disc valve | ||||
| Dischage pipe | 4 inch seamless steel tube | ||||
| Kingpin | 2 inch bolt-in king pin | ||||
| Landing gear | two-speed,manual operating ,heavy duty landing gear | ||||
| Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve | ||||
| Outside sheet | 1.2 mm steel sheet | ||||
| Compartment | Single inner fluidized bed:air bag | ||||
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||||
| Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | ||||
| Accessories | One standard tool box | ||||
| Insulating materials | Fiber glass/polyurethane 50mm | ||||
| Heating device | Optional | ||||
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | ||||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
