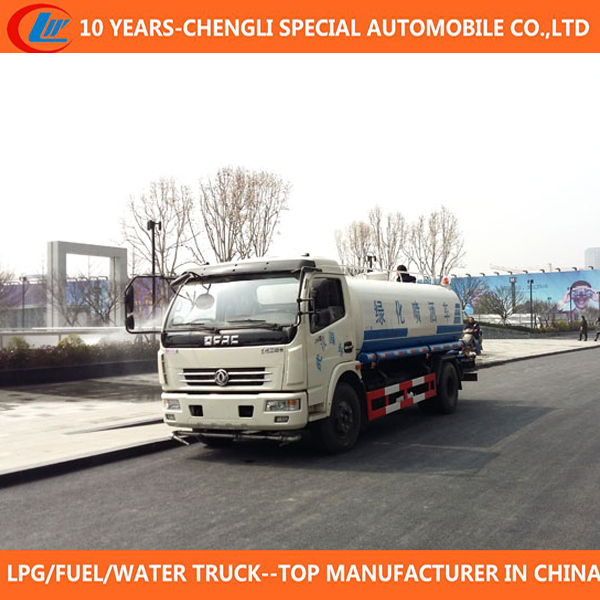

4cbm 5cbm 4t 5t Diesel Water Tank Truck
- USD 20000.25 /Unit
- 1 Unit
- 31 Unit
- 14 days
1, Chassis from brand manufacturer, DONGFENG, Awell-know trade around China.
2, The tank adopts Q325A Carbon steel.
3, Suitable for the City sanitation.
4, This model is popular around china.
5, Good quality with reasonable price, it can be accepted.
6, CLW-Group, have 11 years experience of the water tank truck, we are trusted.
Technique parameters
| Description | 4cbm 5cbm 4T 5T Diesel Water Tank Truck | |
| Drive Model | 4X2 | |
| Chassis Brand | Dongfeng | |
| Chassis Model | DFA | |
| Vehicle Main Dimensions | Dimensions(L xW xH)(mm) | 7000×2100×2450 |
| Wheelbase (mm) | 3800 | |
| Overhang (front/rear) (mm) | 1210/1990 | |
| Wheel track (front/rear) (mm) | 1770/1640 | |
| Approach/Departure angle(°) | 20/10 | |
| Weight in KGS | GVW.(kg) | 11495 |
| Curb Weight(kg) | 4300 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | ISB3.9-125E40A |
| Type | 4-stroke direct injection ,4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 125 | |
| Engine capacity(ml) | 3900 | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards &1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 7.00R15tire ,6 +1(spare) | |
| Brakes | Dual circuit compressed air brake | |
| Cab | Two doors, Single row | |
| Water tank | Material | Q235A Carbon steel |
| Capacity(L) | 6000 | |
Chengli Watering Truck Products Features.
1. The material of water tank used by high quality carbon steel, equipped with the high power water pump which named CLW(technology from Japan), it has owned the no.1 title in the assessment of quality in China. Suction lift>8m, Width>14m, Range>35m.
2. Equipped with fire valve, water valve. Equipped with suction pump. It can suction the water from the pond to tanker directly, it can injection from the fire hydrant to the tanker at the city streets directly also.
3. The Water Truck can used as the chemical spraying truck to use, it based on users requests to do professional chemical spraying antiseptic, also can used as awater delivery truck by the unit or company in urgent case, it can also used as afire truck.
Why choose us.
ChengLi Special Automobile Co.,LTD.
In the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004
There are totally 8,000 workers in factory and can supply 800 types of trucks. In 2014, our total sales revenue reach $300 million.
Over the past 11 years, our group made agreat achievements in the special vehicle circle, our products have been sold to many country around the world, such as Nigeria, Vietnam, Garner, Uganda, Singapore, Malaysia, Congo, Cameroon etc.
There're many type trucks in our company, because we built up along cooperate relationship with many famous brand chassis manufacturer, such as Sinotruk, Dongfeng, Foton, Shacman, JAC, JMC, ISUZU, FAW etc.
Look forward to the future, we are confident, we truct we can do better! We will pay more attention to the quality of the products, that's what we always do!
Customised Truck &Trailer Solutions to Meet Your Requirements
Our main products.
1, LPG Skid station
2, LPG Storage tank
3, LPG Semi-trailer
4, Dump Truck
5, Water tank truck
6, Fire Fighting Truck
7, Flat bed truck
8, LED advertising truck
9, Fecal suction truck
10, Truck with crane
11, Concrete mixer truck
12, Delivery truck
13, High pressure cleaning truck
14, Road swepper truck
15, Fuel tank truck
16, Asphalt distributor truck
Mr. Jacky-Ke
Sales Representative
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 3102, 7th Building, No. 299 Huaihai Road, Wuhan, China
Tel&Fax: +86-27-83796298
Mobile: +86-13667212560+86-13872881765
Facebook: jackyke123
Web: http://www.clwvehicle.com
Customised Truck &Trailer Solutions to Meet Your Requirements
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
