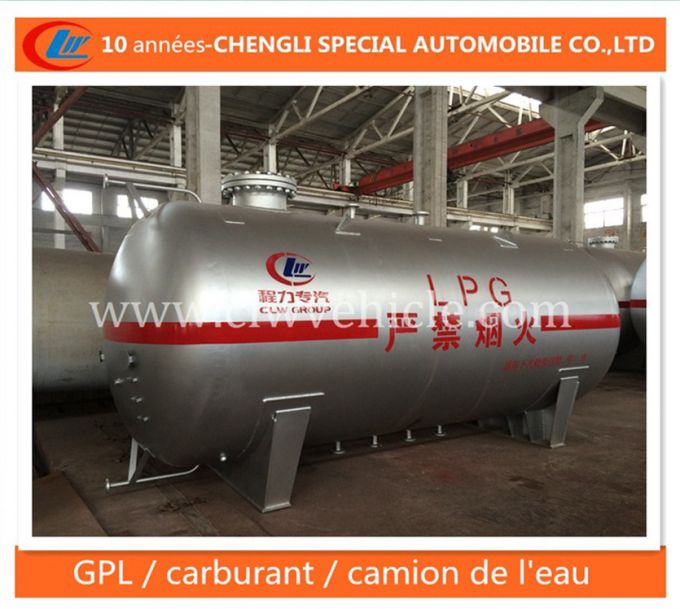

2.5t/5cbm LPG Storage Tank 5000L LPG Tanker
- Price can be negotiated
- 1 Unit
- 90 Unit
- 17 days
| Item | Parameter | ||
Tank | Description of LPG tank | 5CBM LPG storage tank | |
| Overall dimensions (mm) | 3070*1620*2210 | ||
| Curb weight(kg) | 2030 | ||
| Filling weight(kg) | 1995 | ||
| Type of vessel | The third kind | ||
| Design pressure | 1.77MPa | ||
| Max working pressure | 1.61MPa | ||
| Design temperature | -19~50ºC | ||
| Filling medium | Liquid petroleum gas (propane) | ||
| Corrosion allowance | 1.0mm | ||
| Volume | 5 CBM | ||
| Thermal treatment | The entirety | ||
| Filling capacity | 420~450kg/CBM | ||
| Material of the tank | Q345R | ||
| Hydraulic test pressure | 2.22 M Pa | ||
| Gas tight test pressure | 1.77 M Pa | ||
| Cylinder thickness | 10mm | ||
| Head thickness | 10mm | ||
| Service life | 15 years | ||
| Accessory for the LPG storage tank | |||
| Liquid level indicator | Type | UNZ-518C14 | |
| Version of the indicator | Magnetic type liquid level indicator | ||
| Normal pressure | 2.5M Pa | ||
| Scope of testing | 50-2300mm | ||
| Precision | 2.5 | ||
| Safety valve | Model | A42F-2.5-80 | |
| Version | Built-in | ||
| Normal pressure | 2.5 M Pa | ||
| Normal diameter | DN80 | ||
| Opening pressure | 1.68~1.76MPa | ||
| Re-seating pressure | 0.8 times of the opening pressure | ||
| Loading and unloading system | Normal diameter | Feed pipe | DN50 |
| Drain pipe | DN50 | ||
| Admission port | DN50 | ||
| Sewage outfall port | DN50 | ||
| Vent nozzle port | DN50 | ||
| Standard | GB150 <pressure vessel> TSG R0004-2009 | ||
| Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
| Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | ||
