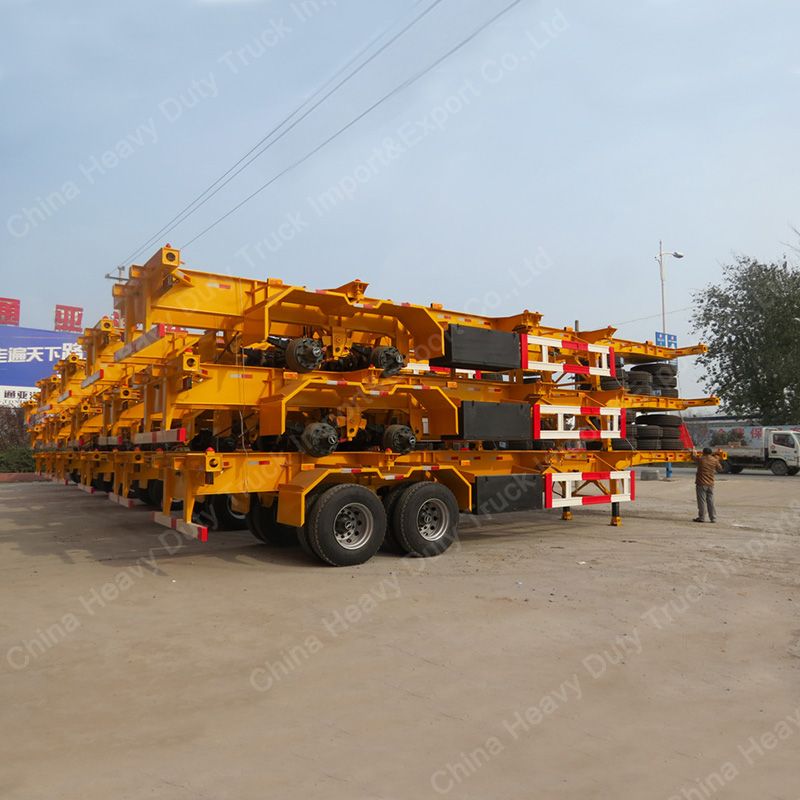

/2 Axle 20FT Flatbed Container Semi Trailer/Skeleton Trailer
- USD 7000.15 /Unit
- 1 Unit
- 14 Unit
- 10 days
- All types of heavy duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service &Maintenance
Our complete selling system including sale, spare parts sale, after-sale service and customer service.
2.Basic technical data
| vehicle name | 2 axle 20' container trailer flatbed type |
| overall dimension (LxWxH) | 7000×2500×1550 mm |
| Basic Specifications | |
| Tare Weight | 7000 kg |
| Payload | 30T-40T |
| Wheelbase | 1310mm |
| Running Gear | |
| Axle Specs | 2 pieces; 13T FUWA brand, BPW optional |
| Tire specs | 9 pieces; 11.00R20 |
| Rims | 9 pieces; 8.0-20 |
| Suspension | mechanical suspensions |
| Leaf Spring | 10pcs for each |
| Brake | Dual line pneumatic brake system, T30/30+T30 air chamber; parking brake |
| Under frame | Main Beam is height 500mm Q345B |
| frame Beam | Upper plate is 14mm, lower plate is 16mm middle is 8mm |
| Cross Beam | Mild Alloy Q235 |
| Loading Floor | 3mm diamond plate deck |
| King Pin | 90#(3.5') , 50#(2') interchangeable Type:bolted on king pin plate |
| Landing Gear | 28 ton capacity; Double sides operation |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Light & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Painting | Three coats painting; Any color will be available |
| Accessory | |
| Container Twist Locks | 8/12 |
| Tool Box | Two tool box with a set of standard trailer tools |
| Spare tyre carrier | One piece |
| Fender | Plastic fenders |
3. Our Factory
4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6. Main products
7. FAQ
| Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it ok? |
| A: We can make the tires as your requirement to suit your country's need. |
| Q 2: Can Ihave samples of this type of flatbed semi trailer to test the quality? |
| A: Yes, you can buy any samples to test the quality, our MOQ is 1unit. |
| Q 3: What's the delivery time? |
| A: The delivery time is within 15 working days after receiving your advance payment. |
| Q 4: Can you supply some quick-wear truck or semi trailer parts? |
| A: Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
| Q 5: Do you have any used truck and semi trailer for sale? |
| A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll Show you our stock if you need. |
| Q 6: What logistics ways we can work for shipment? |
| A: We can ship construction machinery by various transportation tools. (1) For 80% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment. (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, Vietnam, Laos etc., we can ship construction machinery by road or railway. (3) For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or FedEx. |
8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
9. Company information
China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), and spare parts for them. At the same time, we are always glad to provide professional suggestion for your orders,related technical support, and perfect after-sales services.
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. We have not only the certificate and license of truck export and also strict quality management,fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods,on-time delivery and competitive prices.if you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Basic Info Model NO. Container Semi Trailer Independent Suspension Type Cross Arm Type Shape Flatbed Tire Number 8 Self-dumping Not Self-dumping ABS Anti-lock Braking System ABS Anti-lock Braking System Material Steel Condition New Driver Seat Air Suspension Seat Color as You Liked Warranty 12 Months or 100000km Which Comes First Engine Power 420HP Gross Vehicle Weight 25000kg Trademark SINOTRUK HOWO Transport Package Nude Packing After Painted Wax Specification 6800x2496X2958, 3718, 3563, 3668 Origin China Main Land HS Code 8701200000 Product Description Customer Question & Answer Ask something for more details (0) 1.Our main Overseas Business Scope:
