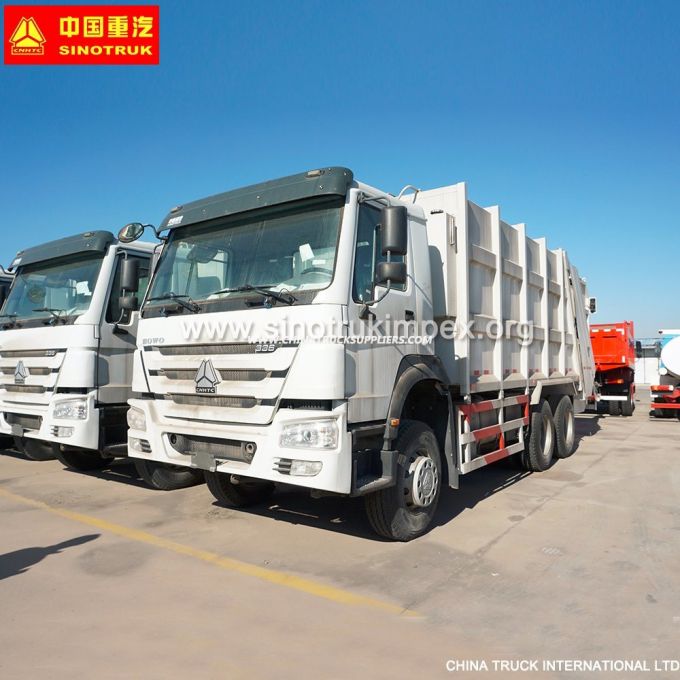

/Cnhtc Trash Truck 12m3-18cbm Garbage Compactor Truck/Trucks for Sale
- USD 35000.44 /Unit
- 1 Unit
- 15 Unit
- 14 days
buses, trailers, including Dump Truck, tractor truck, concrete mier truck, sprinkler truck,
water/Oil tank truck, Truck Mounted Crane, concrete pump truck.etc, low bed semi-trailer,
flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
1.Compactor GarbageTruck Main Specifications:
| Chassismodel | ZZ1257N4341W | Chassisbrand | SINOTRUK |
| Overalldimensions | 9800x2496X3048mm | Wheelbase | 4325+1350mm |
| Front/rearwheeltrack | 2022,1830/1830mm | Front/rearsuspension | 1500,2600mm |
| Approach/departureangle | 16/15° | Maximumspeed | 90km/h |
| ChassisManufacturer | SINOTRUK | ||
| Cab | Configuration | HW76arowandahalfdeluxecab(withsleepingberth),allowable3passengers | |
| Color | White,othercolorisoptional | ||
| Engine | Model | WD615.69 | |
| Emission | Euro3 | ||
| Type | 6cylinders,in-line,4-stroke,watercooled,turbointer-cooling,directinjection,dieselengine | ||
| Ratedpower | 336hp,ratedpowerspeed2200rpm | ||
| Displacement | 9726ml | ||
| Max.torque | 1350N.m | ||
| Borexstroke | 126x130mm | ||
| Manufacturer | SINOTRUK | ||
| Tire | Size | 12R22.5tubelesstire | |
| Number | 10+1nos | ||
| Clutch | φ430diaphragmclutch | ||
| Fueltank | 400Lironoiltank | ||
| Frontaxle | HF7tons | ||
| Rearaxle | ST16tons | ||
| Driveform | 6X4 | ||
| Suspension | Multileafsprings | ||
| Ratedvoltage | 24V,DC | ||
| Transmissions | gearboxHW19710,10speedforward2reverse. | ||
| Steeringdevice | Powerassistedsteering | ||
| Steeringwheel | Lefthanddrive | ||
| Ifthereisaslightchangeinthechassisparametersabove,pleasetaketheactualproductasthestandard | |||
Refuse compactor structureparameters | |
Equipment | |
Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
Loading capacity | 18m3 |
System of loading | Mechanized, rear loading |
Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic |
Body | |
Version | All-metal |
Shape | arc-shaped |
Sidewalls | Sheet carbon steel (thickness: 4 mm) |
Bottom | Sheet carbon steel (thickness:4mm) |
Roof | Sheet carbon steel (thickness: 4 mm) |
Front frame | Sheet carbonaceous steel (thickness: 5 mm) |
Rear frame | n-shaped profile from sheet carbon steel (thickness:5 mm) |
Basis | 120x120mm (thickness: 5 mm) |
Loading bunker | |
Loading bunker | All-metal with sidewalls and a loading ladle |
Volume | 1.8m3 |
Sidewalls | Sheet carbon steel (thickness:4mm) |
Ladle floor material | Sheet carbon steel (thickness:4mm) |
Liquid drain | Drainage channel,sewage tank |
Working zone Lighting | 2 lamps |
Mechanism of raising | Two hydraulic cylinders |
Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
Pressing system | |
Features | Control mode diversification,bidirectional compression |
Pressure | 16Mpa |
Compaction ratio | 3.0:1 |
Loading cycle | 25-30 second |
Unloading cycle | 15-20 second |
pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars |
Pressing mode | Automatic pressing (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately |
Control of pressing | Control from the external panel on the bunker |
Lifting rear part | |
Mechanism oflifting | Two hydraulic cylinders |
Function description | Suitable forvarious rubbish bins |
Others | |
Color and Logo | Optional |
Standard configuration | Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control. |
Selective configuration | PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc. |
3. Our Factory
4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions
6. Main products
7. FAQ
| Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it ok ? |
| A: We can make the tires as your requirement to suit your country's need. |
| Q2: What about your products quality ? |
| A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning! |
| Q 3: Can ihave samples of this type of flatbed semi trailer to test the quality ? |
| A: Yes, you can buy any samples to test the quality,our MOQ is 1unit. |
| Q 4: What others we can do ? |
| A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security. |
| Q 5: How to guarantee customers get the goods smoothly after they pay ? |
| A: Don't worry, dear. We have been in this field for 20 years, we will send you production photos once in awhile, and we will help you to book the latest ship. |
| Q 6: What's the delivery time ? |
| A: The delivery time is within 15 working days after receiving your advance payment. |
| Q 7: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc. |
| Q 8:Do you have any used truck and semi trailer for sale ? |
| A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll show you our stock if you need. |
| Q 9:Which INCOTERMS 2010 TERMS can we work ? |
| MAOWO is aprofessional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW. |
| Q 10:What logistics ways we can work for shipment? |
| A: We can ship construction machinery by various transportation tools. (1) For 80% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment. (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laosetc.,we can ship construction machinery by road or railway. (3) For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex. |
8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
9. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
We have 20 years of experience in exporting trucks.
We have not only the certificate and license of truck export and also strict quality management,
fast and convenient channel of goods delivery, strict examination in quality and quantity of products,
professional packing, professional and reliable loading goods,on-time delivery and competitive prices.
if you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
