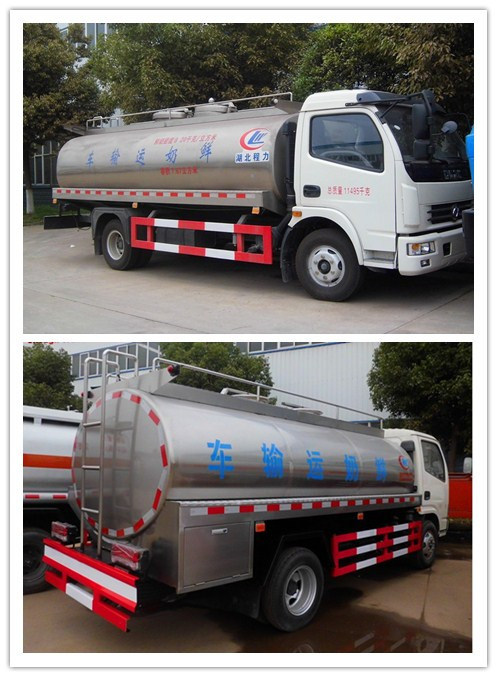

Dongfeng LHD Rhd Stainless Steel Milk Transporting Truck

DonGFENG 8tons Fresh Milk Truck


1, 6-8ton milk transport truck
2, milk transport truck with good heat-insulation effect: Above 24 degrees celsius
3, factory price

1. Milk transport truck main use:
Milk truck is also called milk transport truck, milk transport trailer, milk tanker trailer, milk tanker, Milk Tank Truck, milk tank truck, milk truck tank, liquid Food Truck, selling food truck, etc. Which is mainly used for load and transport liquid food, milk, water, etc.
2. Milk transport truck structure:
Chassis, tanker body, insulation layer, cleaning device, if the transporting distance more than 500km, you need to add a small refrigerator.
3. Milk transport truck advantages:
Good heat-insulation effect: Reach 24± 2-3° C
Material: 304 stainless steel
With cleaning device: So the milk tank could clean body by itself.

East or West, Chengli Special Automobile Co., Ltd is the Best.

Our advantage:
Competitive Price and Excellent Quality,
More than 10 years' experience as a manufacturer,
CCC, ISO, BV certification,
Perfect after-sale service,
Export covering More than 50 countries and regions,
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year.

Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
LPG tank is one of our most advantageous key products which ranks Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank work well with 10-20 years use life.

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ

1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid beforedelivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.

Packaging &Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.


Technique Parameters

Description	DongFeng 8m³milk tank truck
Drive Model	4X2
Chassis	EQ1070
Capacity	8 CBM
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	6900×2320×2450
	Wheel base (mm)	3800
	Overhang (front/rear) (mm)	1180/1920
	Wheel track (front/rear) (mm)	1835/1640
	Approach/Departure angle(°)	18/10
Weight in KGS	Curb Weight	4315
	GVW.	7490
Max. driving speed(km/h)		95
Engine	Model	CY4102-C3C
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	120HP
	engine capacity(ml)	3856
	Emission standard	EuroIII
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	8.25-16tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Tank
Material	304-2B Stainless steel
Loading Capacity (m³)	8
Overall dimensions(mm)	3800×1850×1100
Thickness(mm)	Inner layer :4mm 304-2B stainless steel Outside layer:2 mm 304B stainless steel
Standard Equipment	1,Thetankismadeupofthreelayers:outsidelayer(forphysicalprotection),middlelayer(thermalinsulation),innerlayertank(formilkfilling). 2,Thethicknessofthermalinsulationlayeris80mm Polyurethane foam,the function of thermal insulation:medium temperature change ≤1°Cduring24-48hours. 3,The inner tank material is high quality food grade stainless steel304-2B,and it has been polished. 4,Equippedwith PICselfcleaningdevices. 5, The tank dividedintoseveralcompartments to make sure the inside can be clear thoroughly,also can contain different medium. 6.Stainless steel valves,pipes.
