5bm Foton Concrete Cement Mixer Truck
- USD 22300.29 /Unit
- 1 Unit
- 37 Unit
- 18 days
Product Description

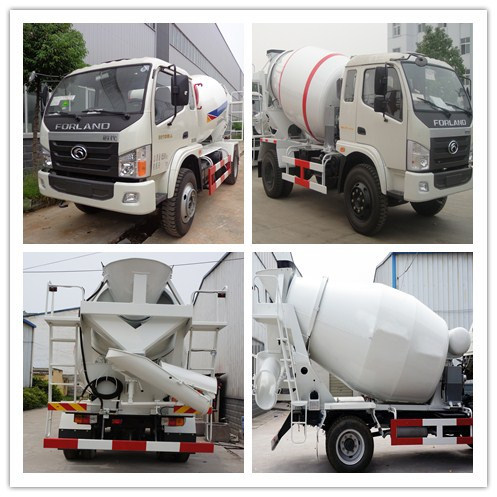

Foton Forland Concrete Mixer Trucks
1.3-5cbm tanker capacity
2.130HP
3. Famous chassis brand
4. One year warranty
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Product Description:
1,Concrete mixer truck, Sinotruk,6cbm, 8cbm, 10cbm, 12cbm;
2, importedhydraulic system / Reducer/Motor
3, Well stirring, high speed of feeding & discharging;
4,Low oil consumption withgood economic.
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of ourConcrete Cement Mixer Truck.please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.
Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442
Seeing is beliving,ClWHeavyIndustryCo.,Ltdwelcome you!
Technique Parameters
Main parts parameter
Our advantages:
a.CompetitivePriceandExcellentQuality,
b.Morethan10years'experienceasamanufacturer
c.CCC,ISO,BVcertification
d.Perfectafter-saleservice
e.Customizedproductsavailablewithus,
f.ExportcoveringMorethan50countriesandregions
g.Annualproductionvaluetopped1500,000,000RMB(240,000,000USd ollars)peryear
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Exporting
Chengli special automobile Co., Ltdis anautomobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseascustomersfromAfrica, South America, theMiddle Eastand South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 setsof military water trucks fornational defense
2.Dump trucksin support of theUnited Nations
3.Fuel tank trucksexported toSudan
4.78 sets of water truckexported toNigeria
5.Dump trucksexported to theIvory Coast, Kazakhstan
6.108setsof trucks exported toLibya
7.36 sets ofdump trucksexported tonorth America
8.218 setsof garbage trucks exported toWest Africa
9.60sets ofwater trucksexported toCongo
10. Garbage trucks exported toVietnam
11.98 sets of dump trucks exported toGhana
Weare confidentandcommittedto providingour customers withthe bestqualityandserviceall the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
1.3-5cbm tanker capacity
2.130HP
3. Famous chassis brand
4. One year warranty
Our concrete mixer truck is mainly used in cement mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
Product Description:
1,Concrete mixer truck, Sinotruk,6cbm, 8cbm, 10cbm, 12cbm;
2, importedhydraulic system / Reducer/Motor
3, Well stirring, high speed of feeding & discharging;
4,Low oil consumption withgood economic.
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of ourConcrete Cement Mixer Truck.please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.
Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442
Seeing is beliving,ClWHeavyIndustryCo.,Ltdwelcome you!
Technique Parameters
| Description | FORLAND 4X2 Concrete Mixer Truck | ||
| Drive Model | 4X2 | ||
| Chassis | BJ1143 | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6460*2255*3300 | |
| Wheel base (mm) | 3600 | ||
| Overhang (front/rear) (mm) | 1230/1830 | ||
| Wheel track (front/rear) (mm) | 1774/1669 | ||
| Approach/Departure angle(°) | 24/20 | ||
| Weight in KGS | GVW. | 13570 | |
| Curb Weight | 5980 | ||
| Max. driving speed(km/h) | 85 | ||
| Engine | Model | YC4D130-33 | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 130HP | ||
| Emission standard | Euro III | ||
| Gearbox | 5 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 150 | ||
| Tire | 8.25R20, 6 pieces+1 spare tire | ||
| Brakes | dual circuit compressed air brake | ||
| Mixer Drum | |||
| Capacity | 5CBM | ||
| Max.Diameter | 1800mm | ||
| Material | 16MnQ345 | ||
| Thickness | 5mm | ||
| Tilt | 11°-13° | ||
| Feedingspeed | 1 m³/min | ||
| Dischargingspeed | 0.8 m³/min | ||
| Material Remaining Ratio | ≤0.6% | ||
| Drivingsystem | |||
| Speedreducer | Ky67-3-E(Germany brand) | ||
| Hydraulicpump | 63gearpump(Italy brand) | ||
| Hydraulicmotor | Gerotormotor(Italy brand) | ||
| Heatdevice | 24Vair-cooled | ||
| Oil hydraulic circuit | Closed circuit | ||
| Watersupplysystem | |||
| Tankvolume | 62 L | ||
| WatersupplyPatterns | Airpressure | ||
| Control System | |||
| Manipulartion | Flexible shaft control | ||
| Drum Technique data | |||||||
| Drum Transmission Capacity | 3000 L | 4000 L | 5000 L | 6000 L | 7000 L | 8000 L | 9000 L |
| Drum Capacity | 4700 L | 6000 L | 8000 L | 9770 L | 10447 L | 13400 L | 14900 L |
| Charge Ratio | 0.67 | 0.67 | 0.64 | 0.63 | 0.67 | 0.615 | 0.6 |
| Charging Speed | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min | ≥3M3/ min |
| Discharge Speed | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min | ≥2M3/ min |
| Discharge Residual Rate | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % | ≤0.8 % |
| Drum Rotation Speed | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min | 0~16 r/min |
| Filling Height | 1.92 M | 2.2 M | 2.3 M | 2.4 M | 2.5 M | 2.55 M | 2.6 M |
| Discharging Minimum Height | 0.87 M | 1.13 M | 1.1 M | 1.13 M | 1.15 M | 1.2 M | 1.2 M |
| Axes Angel | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 14±0.5 | 12±0.5 |
| Overall Dimension | 3.9*1.8*2 | 4*1.95*2.2 | 4.8*2.3*2.15 | 5.2*2.1*2.4 | 4.4*2.1*2.47 | 5.2*2.2*2.6 | 5.4*2.3*2.65 |
| Oil Tank Capacity | 180 L | 180 L | 220 L | 260 L | 280 L | 280 L | 300 L |
| Normal Working Temperature | 50~70ºC | 50~70ºC | 50ºC~70ºC | 50ºC~70ºC | 50ºC~70ºC | 50ºC~70ºC | 50ºC~70ºC |
Special Fuction Description of Cement Mixer Truck | |||||
| hydraulic system | adopting equipment imported from Italy,Germany,Japan, layout of system is simple,reliable transportation. | ||||
| water supply system | using pressure water supply type, simplifying structure, saving power, reducing the weight of entire vehicle. | ||||
| mixing drum | adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio. | ||||
| operation equipment | including flexible manipulator and connecting rod type manipulator, connecting rod type manipulator can realize multipoint manipulation. | ||||
| feeding/discharging device | feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position. | ||||
| tank body spray-paint | tank body surface sprays two-layer polyurethane paint, using stoving varnish technology, uniform coating, strong adhesion, luster is more durable. | ||||
Our advantages:
a.CompetitivePriceandExcellentQuality,
b.Morethan10years'experienceasamanufacturer
c.CCC,ISO,BVcertification
d.Perfectafter-saleservice
e.Customizedproductsavailablewithus,
f.ExportcoveringMorethan50countriesandregions
g.Annualproductionvaluetopped1500,000,000RMB(240,000,000USd ollars)peryear
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Exporting
Chengli special automobile Co., Ltdis anautomobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseascustomersfromAfrica, South America, theMiddle Eastand South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 setsof military water trucks fornational defense
2.Dump trucksin support of theUnited Nations
3.Fuel tank trucksexported toSudan
4.78 sets of water truckexported toNigeria
5.Dump trucksexported to theIvory Coast, Kazakhstan
6.108setsof trucks exported toLibya
7.36 sets ofdump trucksexported tonorth America
8.218 setsof garbage trucks exported toWest Africa
9.60sets ofwater trucksexported toCongo
10. Garbage trucks exported toVietnam
11.98 sets of dump trucks exported toGhana
Weare confidentandcommittedto providingour customers withthe bestqualityandserviceall the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
