4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck

  • 4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck
  • USD 17900.40 /Unit
  • 1 Unit
  • 31 Unit
  • 20 days
Product Description

4cbm 6X4 compressed Garbage Truck
4X2 compactor garbage truck 5ton garbage truck
Technique Parameters

Model

DonGFENG Garbage Truck/DonGFENG Compactor Garbage Truck/ 16T DonGFENG Garbage Truck 4X2 diesel type engine dongfeng used garbage compactor truck

Driving Model

4X2/6X4/6X2/8X4/8X6

Vehicle Main Dimensions

(L x W x H)mm

8300*2500*3010

Wheel base (mm)

4500

Wheel track (front/rear) (mm)

1205/2595

Approach/Departure angle(°)

16/10

Weight in KGS

G.V.W.

16000

Curb Weight

6900

Max. driving speed(km/h)

80

Engine

Brand

DONGFENG

Model

Isbe18530

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power

185(HP)

Emission standard

EuroIII

Displacement

5.9L

Max. Output Power

136kw

Gearbox

RTS-11909A 6 forwards& 1 reverse

Clutch

Reinforced diaphragm clutch, diameter 430mm

Tire

8.25R16 10.00R20 11.00R20 12.00R22.5All steel radial tire, 6pc including 1 spare tire

Brakes

Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Steering Gear

power steering, hydraulic steering with power assistance

Garbage Truck Body

Volume(M3)

5CBM 6CBM 7CBM 8CBM 9CBM 10CBM 11CBM 12CBM 13CBM 15CBM 18CBM

Material

Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steeel

Equipment

Hermetic dustbin, hydraulic system and operating system

Thickness

4mm6mm 8mm 10mm

Uploding cycling time

<60s

Loading cycling time

≤30s

Lifting capacity of turnover machanism

≥800KG


4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck
Factory andWorkshop Scene


4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck

Products Series

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck

2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

3. Truck with crane / Truck Mounted Crane

4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

5. Fire Fighting Truck / Fire Truck / Fire Vehicle

6. Concrete Mixer Truck

7. Van truck / Blasting equipment transporter/ Refrigerated truck

8. Fecal suction truck / Sewage Suction Truck,

9. Cement Powder Tank truck/ Bulk Cement Truck

10. High-altitude operation truck,

11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc

12. Tractor

13. High Pressure Cleaning Truck

14. Sweeper Truck

15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

16. Garbage Truck /Compactor garbage truck/compressed garbage truck


4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck

Products Notes

    Roll off garbage truck---- Widely used to collect the loads of construction and demolition waste, one truck available with several roll-off containers, easy to raise the container with hydraulic system.Dump garbage truck---- Widely used to dispose loads of construction and demolition waste, easy to dump the waste with hydraulic system.Docking garbage truck---- Used to transfer and dispose the compressed waste of the urban area. The operation system can be controlled by the hydraulics manually or electrically. After the garbage is compressed at the station, the garbage container is lifted upwards and open its door. At the same time, the truck opens its rear door of the garbage body. Then the two doors are docked and the waste is pushed from the container of the station into the garbage body of the truck. After that, the truck can transfer the waste and dispose it. It is the most common way of waste disposal in China presently. One truck can be shared by several garbage stations, which reduces the equipment cost and space. All of the operation systems are driven by the truck engines through the hydraulics. The truck body is constructed with high quality carbon steel and from a fully-sealed structure, which can avoid the secondary pollution.Arm-roll garbage truck---It is made up of chassis, garbage body, hydro-cylinder,etc. The hydro-cylinder is used to speed down the rolling arm; the truck can be separated from the garbage tank and shared by several tanks.Hydraulic lifter garbage truck----The garbage tank of the truck can be lifted upwards and turned over by the chains and the hydraulic hydro-cylinder. By this way, it can collect the garbage at different places into the tank and dump them out at one time.

    Customers

    We have customers from worldwide countries and areas, such asKenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east,African, South-african, Australianand so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.

    Conact Information

    Name Caroline GAO

    Cel. 0086-2783796298

    0086-15117073372


    4cbm 6X4 compressed garbage truck
    4X2 compactor garbage truck 5ton garbage truck

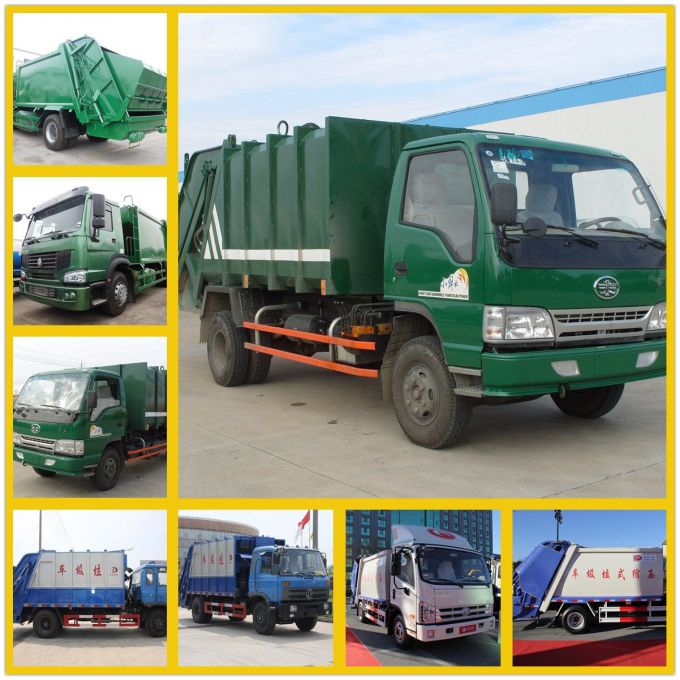

Product Images
4cbm 6X4 Compressed Garbage Truck 4X2 Compactor Garbage Truck 10ton Garbage Compactors Truck Images 1
