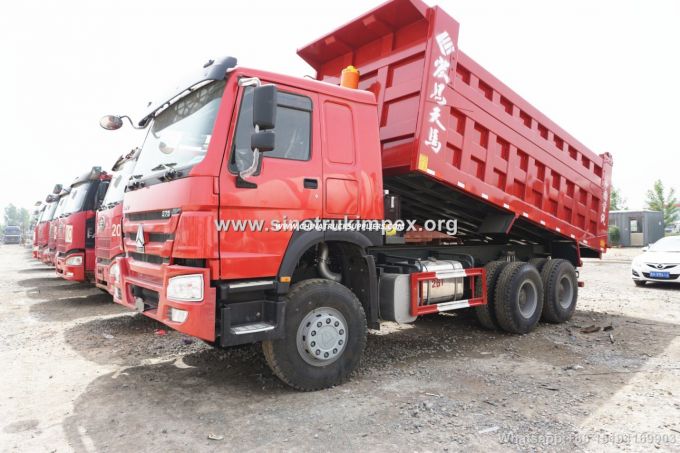

Sinotruk HOWO LHD 6X4 Used Trucks Ethiopia Truck Tipper Truck for Used

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), including Dump Truck, tractor truck,
concrete mier truck, sprinkler truck, water/Oil tank truck, Truck Mounted Crane, concrete pump truck.etc, and spare parts for them.
The HOWO series from SINOTRUK offers you great value for your money!
1. Specifications
(1) HOWO 6x4 Dump Truck Model ZZ3257N4347W.
(2) WD615.69 Engine, 336HP Horse Power,Euro II emission,9.726L Diesel engine
(3) 300L Fuel tank
(4) HW19710 manual transmission, 10 forwarder, 2reverse
(5) HC16 axles, drum brake
(6) HW76 cab, with one sleeper, heater and air conditioner
(7) Certification: ISO9001 CCC,SGS




2. HOWO Dump Truck Main Specifications:

Truck Model		ZZ3257N4347W
Truck Brand		SINOTRUK -HOWO
Dimension(Lx WxH)		9185x2496x3386
Cargo body size (L*W*H, mm)		6000x2300x1400
Cargo body thickness(mm)		bottom:8mm, side:6mm,
Lift type of Carriage		Front lifting
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		4325+1350
Max speed(km/h)		75
Curb weight(kg)		12290
Loading Weight(kg)		25000
Fuel Tanker		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch Φ420mm
Engine	Model	WD615.69,4- stroke direct injection diesel engine, 6cylinders in line with water cooling ,
	Horse Power,	336HP
	Emission Standard	EURO II
Transmission	Model	HW 19710,10 forwards and 2reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8098 hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tire	12.00R20
Electrical system	Operating voltage		24V,negative grounded
	Starter		24V,7.35KW
	Alternator		28V,1500W
	Batteries		2*12V.165Ah

Basic Info Model NO. ZZ3257N4347W Seats ≤5 Horsepower 251-350hp Tire Certification ECE, GCC, ISO, DOT Tire Design Radial Dumping Type Front Lifting Style Condition New Color Red Yellow Green White Black Blue Driver Seat Air Suspension Seat After-Sale Service One Year or 100000km Which Comes First Usage for Construction, Transportation and Mining Work Trademark SINOTRUK HOWO Transport Package Nude Packing Specification heavy duty truck Origin China HS Code 8704224000 Product Description Customer Question & Answer Ask something for more details (0) Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), including dump truck, tractor truck,
concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, and spare parts for them.
The HOWO series from SINOTRUK offers you great value for your money!
1. Specifications
(1) HOWO 6x4 Dump Truck Model ZZ3257N4347W.
(2) WD615.69 Engine, 336HP Horse Power,Euro II emission,9.726L Diesel engine
(3) 300L Fuel tank
(4) HW19710 manual transmission, 10 forwarder, 2reverse
(5) HC16 axles, drum brake
(6) HW76 cab, with one sleeper, heater and air conditioner
(7) Certification: ISO9001 CCC,SGS




2. HOWO Dump Truck Main Specifications:

Truck Model		ZZ3257N4347W
Truck Brand		SINOTRUK -HOWO
Dimension(Lx WxH)		9185x2496x3386
Cargo body size (L*W*H, mm)		6000x2300x1400
Cargo body thickness(mm)		bottom:8mm, side:6mm,
Lift type of Carriage		Front lifting
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		4325+1350
Max speed(km/h)		75
Curb weight(kg)		12290
Loading Weight(kg)		25000
Fuel Tanker		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch Φ420mm
Engine	Model	WD615.69,4- stroke direct injection diesel engine, 6cylinders in line with water cooling ,
	Horse Power,	336HP
	Emission Standard	EURO II
Transmission	Model	HW 19710,10 forwards and 2reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8098 hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tire	12.00R20
Electrical system	Operating voltage		24V,negative grounded
	Starter		24V,7.35KW
	Alternator		28V,1500W
	Batteries		2*12V.165Ah

 　　China Truck International Ltd. Is a refitted truck base of CNHTC in Jinan integrating R&D, production and sales of various special-purpose vehicles.

　　Jinan Special Vehicle company predecessor-Jinan Garden Machinery Works was the domestic largest manufacturer of sprinklers at the earliest time, and was incorporated into CNHTC in 2005, removed to CNHTC Zhangqiu Industrial Park in 2007 and renamed as CNHTC Jinan Special-purpose Vehicle Co., Ltd. In 2007, and removed to the new factory at No. 17668, Panwang Road, Zhangqiu, Jinan in November 2010. The new factory covers an area of 360mu and a building area of 42, 000m2, and has 360 sets of various advanced equipment, and a staff of over 600 people including more than 60 professionals. Now, the company can yield 7, 000 dumpers and van vehicles and 3000 tank trucks annually, and will realize an annual production capacity of 15, 000 refitted vehicles in 2012.
