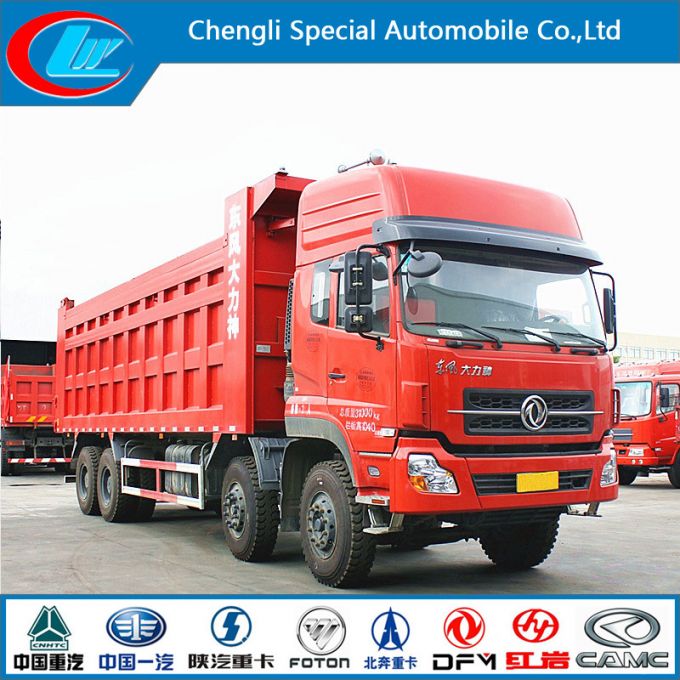

20cbm Dongfeng 8X4 Dump Truck with Large Load Volume

Specifications
20cbm dongfeng 8x4 Dump Truck with large load volume
1.7.6meter cargo box,20cbm load volume
2.side 6mm,bottom 8mm carbon steel


20cbm dongfeng 8x4 dump truck with large load volume
As a professional special vehicle manufacturer,we have many dump trucks for sale,new hino trucks,dongfeng tipper truck,howo tipper truck,shacm dump truck,auman tippers,etc.
We can customize the truck according to your requirement, such as the truck chassis brand,box dimension, box thickness, the goods you transport, hydraulic cylinder brand,etc

Main feature of dongfeng 8x4 dump truck

1. Large engine power span, YUCHAI 240HP to YUCHAI 270HP or 230HP.

2.Chassis is made by Dongfeng in China, competitive price.

3.Box inner dimension is 7600x2280x1070mm, large dump load volume.

4.Professional cargo box manufacturer, best quality.

5.Rigidtruck frame and reinforcedsteel spring leavies, long service time.

Company information
CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Packing&shipping
1, Naked or waxed before on board.
2, Delivery time: 30 days after receiving payment in advance.
3.By RORO or Bulk ship.

Other services
1.Alltrucks and trailers arenewandbecustomizedtomeetallyourrequirement.
2.Alltrucks and trailers arewith12monthsqualityguarantee.
3.CKDandSKDareavailable.
4.Technicalsupportareprovided

FAQ
1.Our price term:FOB Shanghai as common, other port is also acceptable.
2. Our Payment term:T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.
3. Delivery time:the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Exporting
As Manufacturer, We Have Our Own License Of import And Export.We Have Successfully Exported ToGhana, Sudan, Nigeria, Angola, Tajikistan, Namibia, Burma, Korea, Iran, American, Afghanistan, Iraq AndOther Countries. The Development Of Our Factory Is Getting Better And Better.

Ifyouareinterestedinthismodel,plsfeelfreetosendinquiry,andwewillalwaysbegladtoquote.

Contact informaiton:

Sales manager: Albert Du
Telephone: 0086-13872880263
0086-18660874450Tel/Fax : 00862783796298

TechniqueParametersTechnical parameters of dongfeng dump truck 8x4

[MainTechnicalParameters]
ProductName	DumpTruck	GrossVehicleWeight(kg)	31000
DriveType	8x4	Factloadingcapacity(kg)	40000
OverallDimension(mm)	10250×2480×3150	BoxDimension(mm)	7600×2280×1070
App/DepAngle(°)	32/29	F/RSuspension(mm)	1250/2050
AxleNo.	4	Wheelbase(mm)	1850+3800+1350
AxleLoad(Kg)	6500/7000/18000(parallelinstalled)	MaxSpeed(Km/h)	90
[ChassisTechnicalParameters]
ChassisName	Truckchassis	ChassisBrand	DONGFENG
OverallDimension(mm)	9360×2462×2850	TyreNo.	12
App/DepAngle(°)	32/33	TyreSpecification	11.00R20or12.00-20
SpringLeafNo.	9/9/9	FrontTrack(mm)	1940/1940
FuelType	Diesel	RearTrack(mm)	1860/1860
Clutch	¢430mmdiaphragmspring	Gearbox	12speedforwardwith2reverse
OilTank	300L	AirCondition	Equipped
EmissionStandard	EuroIII	Brake	AirBrake
EngineModel	YC6L270-33	EngineBrand	YUCHAI
EnginePower(kw)	270HP/199KW	Displacement(ml)	8424
[SuperstructureTechnicalParameters]
MaterialofBox	CarbonSteel	Paint	metallicPaint
Thicknessofsideplate	6mm	Thicknessofbottomplate	8mm
CylinderPosition	Atfrontofthecargobox	LoadingMode	Reartipper

WehaveTechniqueParameterstable here,ifitdidn'tshow,youcancheckitbycomputer.
