/HOWO 3 Axles 10 Wheelers Dump Truck for Construction Work
- USD 33000.00 /Unit
- 1 Unit
- 80 Unit
- 17 days
1. The HOWO series from SINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impressive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6x 4Dump Truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just agreat truck. Simple and reliable.
1.1 Better aerodynamics with improved front
Improved aerodynamics :better fuel economy, which again improves your bottom line. Easy access for maintenance.
1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
1.3 Acomfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
1.4 Ample power when you need it
WD615.47, Euro II emission standard,4 stroke direct injection diesel 6cylinder in-line engine with water cooling, turbo-charging &intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile ,WD615.69,WD615.87,WD615.62 is optoinal
2. Dump Truck Main Specifications:
Truck Model | ZZ3257N4347W | ||
Truck Brand | SINOTRUK -HOWO | ||
Dimension(Lx WxH) | 9185x2496x3386 | ||
Cargo body size (L*W*H, mm) | 6000x2300x1400 | ||
Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||
Lift type of Carriage | Front lifting | ||
Approaching angle/Departure angle(°) | 19/26 | ||
Overhang(front/rear) (mm) | 1500/1739 | ||
Wheel base (mm) | 4325+1350 | ||
Max speed(km/h) | 75 | ||
Curb weight(kg) | 12290 | ||
Loading Weight(kg) | 25000 | ||
Fuel Tanker | 300L with locking fuel cap | ||
Fuel consumption(L/100km) | 32 | ||
Clutch | Single-plate dry clutch Φ420mm | ||
Engine | Model | WD615.69,4- stroke direct injection diesel engine, 6cylinders in line with water cooling , | |
Horse Power, | 336HP | ||
Emission Standard | EURO II | ||
Transmission | Model | HW 19710,10 forwards and 2reverse | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Auxiliary brake | Engine exhaust brake | ||
Steering system | Model | ZF8098 hydraulic steering with power assistance | |
Front axle | HF9 | ||
Rear axle | HC16 | ||
Tire | 12.00R20 | ||
Electrical system | Operating voltage | 24V,negative grounded | |
Starter | 24V,7.35KW | ||
Alternator | 28V,1500W | ||
Batteries | 2*12V.165Ah | ||

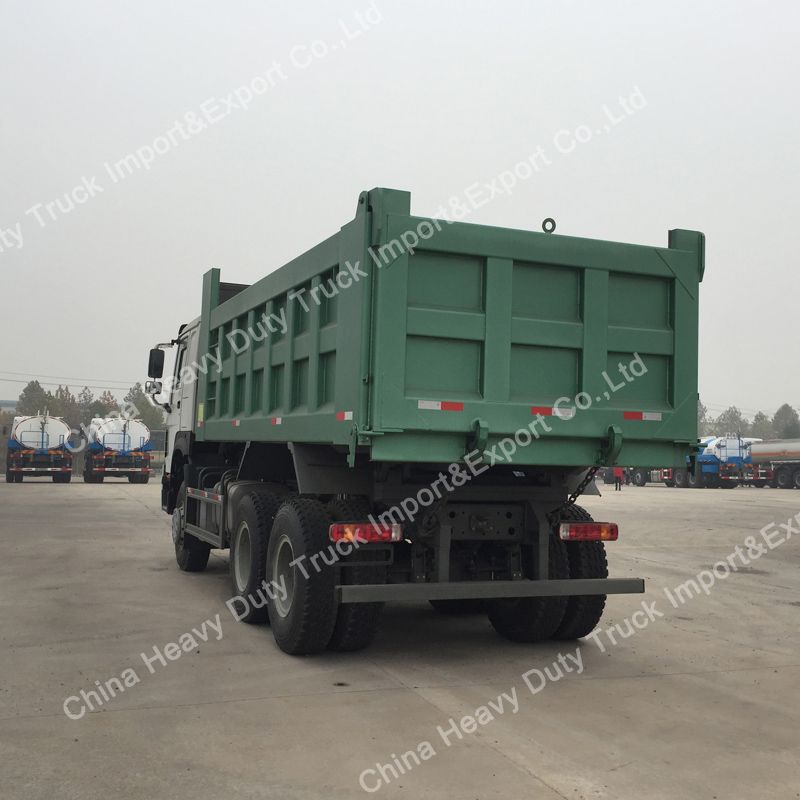

3. Dump Truck Photos
4. Our Factory
5. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
Contact Person: Alan
Basic Info Model NO. ZZ3257N4347W Seats ≤5 Horsepower 251-350hp Tire Certification ECE, GCC, ISO, DOT Tire Design Radial Dumping Type Front Lifting Style Condition New Color Red, Yellow, Green, White, Blue.etc Usage for Construction, Transportation and Mining Work Vehicle Model Zz3257n4347W After-Sale Service One Year or 100000km Which Comes First Driver Seat Air Suspension Seat Trademark SINOTRUK HOWO Transport Package Nude Packing Specification heavy duty truck Origin China HS Code 8704224000 Product Description Customer Question & Answer Ask something for more details (0)
1. The HOWO series from SINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impressive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6x 4dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just agreat truck. Simple and reliable.
1.1 Better aerodynamics with improved front
Improved aerodynamics :better fuel economy, which again improves your bottom line. Easy access for maintenance.
1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
1.3 Acomfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
1.4 Ample power when you need it
WD615.47, Euro II emission standard,4 stroke direct injection diesel 6cylinder in-line engine with water cooling, turbo-charging &intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile ,WD615.69,WD615.87,WD615.62 is optoinal
2. Dump Truck Main Specifications:
Truck Model | ZZ3257N4347W | ||
Truck Brand | SINOTRUK -HOWO | ||
Dimension(Lx WxH) | 9185x2496x3386 | ||
Cargo body size (L*W*H, mm) | 6000x2300x1400 | ||
Cargo body thickness(mm) | bottom:8mm, side:6mm, | ||
Lift type of Carriage | Front lifting | ||
Approaching angle/Departure angle(°) | 19/26 | ||
Overhang(front/rear) (mm) | 1500/1739 | ||
Wheel base (mm) | 4325+1350 | ||
Max speed(km/h) | 75 | ||
Curb weight(kg) | 12290 | ||
Loading Weight(kg) | 25000 | ||
Fuel Tanker | 300L with locking fuel cap | ||
Fuel consumption(L/100km) | 32 | ||
Clutch | Single-plate dry clutch Φ420mm | ||
Engine | Model | WD615.69,4- stroke direct injection diesel engine, 6cylinders in line with water cooling , | |
Horse Power, | 336HP | ||
Emission Standard | EURO II | ||
Transmission | Model | HW 19710,10 forwards and 2reverse | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Auxiliary brake | Engine exhaust brake | ||
Steering system | Model | ZF8098 hydraulic steering with power assistance | |
Front axle | HF9 | ||
Rear axle | HC16 | ||
Tire | 12.00R20 | ||
Electrical system | Operating voltage | 24V,negative grounded | |
Starter | 24V,7.35KW | ||
Alternator | 28V,1500W | ||
Batteries | 2*12V.165Ah | ||
3. Dump Truck Photos
4. Our Factory
5. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO
Contact Person: Alan
China Truck International Ltd. Is a refitted truck base of CNHTC in Jinan integrating R&D, production and sales of various special-purpose vehicles.
Jinan Special Vehicle company predecessor-Jinan Garden Machinery Works was the domestic largest manufacturer of sprinklers at the earliest time, and was incorporated into CNHTC in 2005, removed to CNHTC Zhangqiu Industrial Park in 2007 and renamed as CNHTC Jinan Special-purpose Vehicle Co., Ltd. In 2007, and removed to the new factory at No. 17668, Panwang Road, Zhangqiu, Jinan in November 2010. The new factory covers an area of 360mu and a building area of 42, 000m2, and has 360 sets of various advanced equipment, and a staff of over 600 people including more than 60 professionals. Now, the company can yield 7, 000 dumpers and van vehicles and 3000 tank trucks annually, and will realize an annual production capacity of 15, 000 refitted vehicles in 2012.
-
