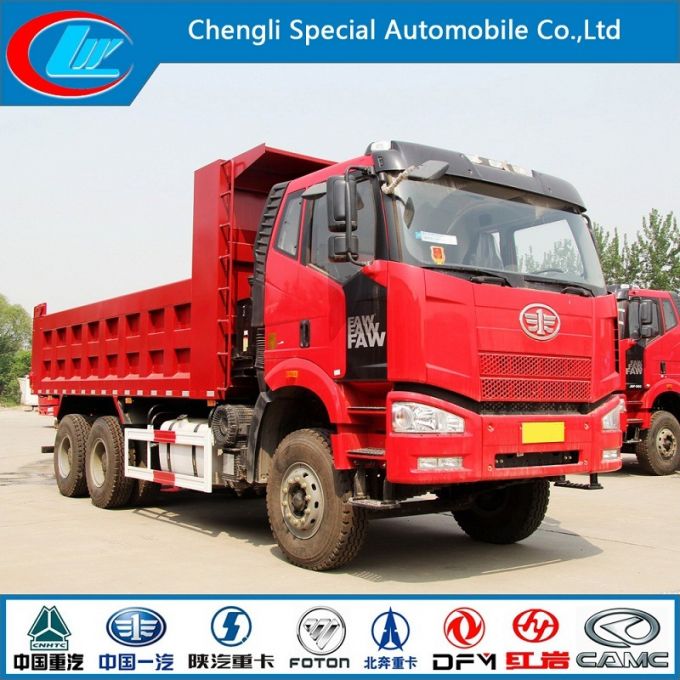

Factory Supply Faw Dumper LHD Dump Truck Rhd Tipper Truck

Factory supply FAW Dumper Lhd Dump Truck RHD Tipper Truck
Description:

1.Faw6*4Chassis, Quality Assurance
2.high Quality, load capacity 25 ton
3.Reasonable price
4.3Ccertificate


Technique Parameters

Description	FAW 280HP RHD coal transport dump truck
Drive Model	6X4
Vehicle Main Dimensions	Dimensions(L x W x H)mm	7831*2500*3250
	Wheel base (mm)	3500+1350
	Overhang (front/rear) (mm)	1513/1468
	Wheel track (front/rear) (mm)	2020/1860
	Approach/Departure angle(°)	33/21
Weight in KGS	Curb Weight	12300
	GVW.	25000
Max. driving speed(km/h)		85
Engine	Model	DACHAI
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	280HP
	Emission standard	EuroIV
Gearbox	RT 9JS135, 9 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12.00R20 Radial tire , 11 pieces including one spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Dump Box
Hydraulic System	T-type middle lift
Tipper Box Dimension	5000*2300*1300mm(or 5000*2300*1500)
Material	Q235 carbon steel
Thickness	Side/Bottom 6/8 mm
Tipping Angle	51 degree

Factory Supply Faw LHD Tipper Truck Rhd Dump Truck

Company Information
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China,We are a Professionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTonand etc.


ChengliSpecialautomobileCo.,Ltdalsoprovideproductsasfollows:

1.LPGTankTruckTrailer/FuelTankerTruck
2.Watertruck/WaterTankTruck/WaterSprinklerTruck/WaterTanker
3.Truckwithcrane/Truckmountedcrane
4.DumpTruck/TipperTruck/SideTipper/EndTipper
5.FireFightingTruck/FireTruck/FireVehicle
6.ConcreteMixerTruck
7.Vantruck/Blastingequipmenttransporter/Refrigeratedtruck
8.Fecalsuctiontruck/Sewagesuctiontruck,
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck,
11.Self-loadinggarbagetruck,garbagecompactortruck,sealedgarbagetruc
12.Tractor
13.HighPressureCleaningTruck
14.SweeperTruck
15.SemiTrailer(flatbedtrailer/skeletontrailer/dumpsemitrailer/sidewalltrailer/lowbedtrailer/vancontainertrailer/warehousetrailer,etc.)

EXPORT
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell toAfrica, South-east Aisa, Australia, Middle-eastand other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.

PACKAGING & SHIPPING

1, Naked or waxed .
2, Delivery time: 30 daysafter official order.
3. By RORO or Bulk ship.


Service
The extremely considerate and sincerely service would be provided to our customers immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.

FAQ
Q:What is your payment term?
A:We accept payment by T/T,L/C.

Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets

Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.

Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!


Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
+008618858011948

Factory supply FAW Dumper Lhd Dump Truck RHD Tipper Truck


Welcome to visit our Factory!
