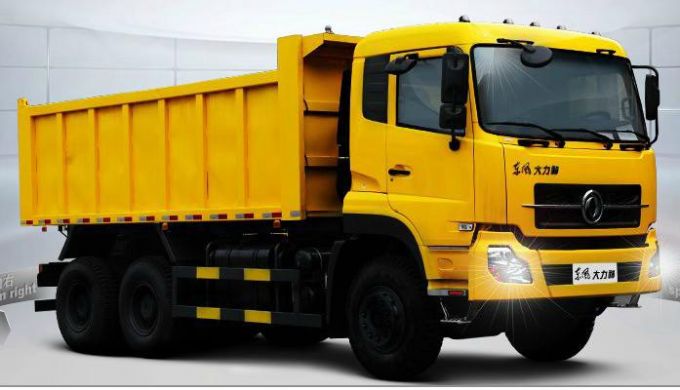

Dongfeng 20 Tons Heavy Duty Self Unloading Tipper

13CBM rear tipper truck
1.Diesel 340hp engine, strong power.
2.6x4 drive, 13ton single-reduction rear axle, 7ton front axle
3.Equipped with full power PTO and driving recorder.
4. 200L oil tank, hydraulic tilt cabinet with air condition.

Company information
CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA
Chengli Special Automobile Co., Ltd is aprofessional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )

Packing&shipping
1, Naked or waxed before on board.
2, Delivery time: 30 days after receiving payment in advance.
3.By RORO or Bulk ship.

Other services
1. All trucks and trailersare new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Exporting
As Manufacturer, We Have Our Own License Of import And Export. We Have Successfully Exported To Ghana, Sudan, Nigeria, Angola, Tajikistan, Namibia, Burma, Korea, Iran, American, Afghanistan, Iraq And Other Countries. The Development Of Our Factory Is Getting Better And Better.


Technique Parameters

Description	Dongfeng DALISHEN 6*4 290HP dump truck
Drive Model	6X4
Vehicle Main Dimensions	Dimensions(L xW xH)mm	8450×2500×3450
	Wheel base (mm)	3800+1350
	Overhang (front/rear) (mm)	1500/1900
	Wheel track (front/rear) (mm)	2040/1850/1850
	Approach/Departure angle(°)	30/16
Weight in KGS	Curb Weight	12370
	GVW.	25000
Max. driving speed(km/h)		85
Engine	Model	ISLe290
	Type	4-stroke direct injection ,6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	290HP
	engine capacity	8900
	Emission standard	Euro III
Gearbox	9 forwards &1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	30
Tire	12.00R20 Radial tire ,11 pieces including one spare tire
axle load	7000/18000
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Dump Box
Hydraulic System	T-type middle lift
Tipper Box Dimension	5600*2300*1100mm
Material	Q235 carbon steel
Thickness	Side/Bottom 6/8 mm

We have Technique Parameters table here,if it didn't show,you can check it by computer.
