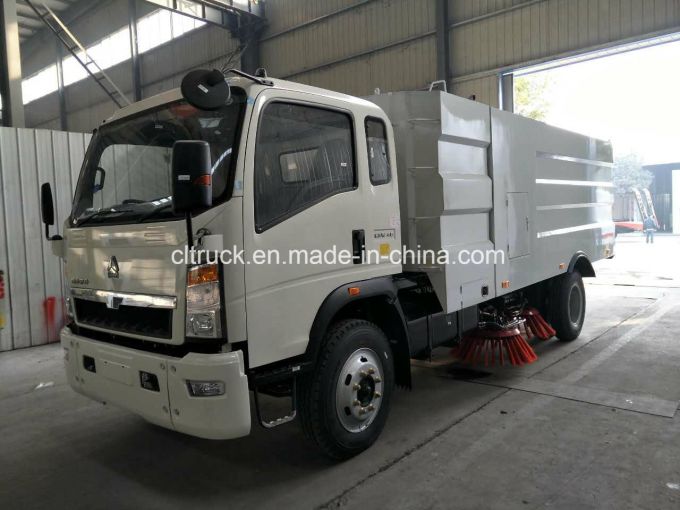

Factory Diesel Type 4X2 Road Sweeping Truck

Specification for Road Sweeper Truck

SINOTRUK HOWO 4CBM Road sweeper truck
Item No.	Parameters
Overall Dimension	6190*2090*2500mm
Drive model	4x2, new condition ,LHD
Gross weight	7360 kg
Curb Weight	5950kg
Wheel base	3360mm
Front/rear Overhang	1160/1670mm
Front/rear Tread	1805/1595mm
Approach/Departure Angle	19/15degree
Engine	YUNNEI ENGINE, YN4100,Diesel Engine, Four Stroke, 4Cylinder in line.
Engine horsepower	110HP,Euro II
Displacement	3.612L(Diesel)
Max Driving Speed	90 km/h
Gear Box	WLY6T100,6Forward Gear, 1Backward Gear
Tire	7.00-16,6pieces with 1spare tire.

Upper part of the road sweeper truck
Tank	Garbage tank	Tank material	Stainless steel 304
		Tank volume(cbm)	4.0 cbm
	Water tank	Tank material	Stainless steel 304
		Tank volume(cbm)	1.5cbm
Auxiliary engine	Model	JMC BrandJX493G model
	Power(kw)	57kw, 77.5 HP
Motor	Brand	imported Italian brand motor
Switch of operation	Brand	imported French Schneider brand switch
Brush	Quantity(pc)	4 pcs
	Diameter of brush	850 mm
	Working area(m)	3.0-3.5 m
Operation detail	Working speed	3-35 km/h
	Working width	2.8-3.2 meters
	Max. Operation ability	45000 m2/h
	Max. Sucking dimension	100-120 mm
	Sweeping rate	95%
	Brush extend dimension	400 mm
Hydraulic system	Model	Electrical control type.
	Pressure of hydraulic system	16 Mpa
	Volume of the hydraulic oil tank	60 L
	Temperature of hydraulic oil	60°
	Main part	Pump, hydraulic motor, hydraulic cylinder and electromagnetic valve
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

Brief introduction of road sweeping truck

The dust sweeperis also called street sweeper, street sweeper truck, sweeper truck, road sweeping truck, road sweeper truck, road sweep machine, road sweeping vehicle, etc.The street sweeper truck which made by Chengli Special Automobile Co.,Ltd is an ideal cleaning tool which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. The sweeper truck we produce has large sweep range, low fuel consumption, convenient operation and other
advantages.

The sweeper truck for sale is mainly used to sweep the road garbage of street, highway, dock,
station, square, cement mill, electric power plant,etc.

Company information
ClW Heavy Industry Co., Ltd
LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
1.Competitive Price and Excellent Quality,
2.More than 10 years' experience as amanufacturer
3.CCC, ISO, BV certification
4.Perfect after-sale service
5.Export covering More than 50 countries and regions
6.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
7.can produce water tank truck, fuel tank truck, Bulk Cement Truck ,LPG Tank, Garbage Truck, Tow Truck, Sewage Vacuum Truck, Aerial Platform, Concrete Mixer Truck, Road Sweeper Truck, Cargo Crane Truck, Firefighting Truck


Our main products
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
LPG tanker trailer brief Introduction

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.

Contact informaiton:

Sales manager: Albert Du
Telephone: 0086-13872880263
0086-18660874450
Tel/Fax :00862783796298


We have Technique Parameters table here,if it didn't show,you can check it by computer.

Remarks:The sweeping width of dongfeng 4x2 diese street sweeper truck is more than 3meter, the sweeping speed is 3-15 km/h, max sweeping capacity is 45000m²/h and the max project is 100mm.
