High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

  • High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer
  • USD 34000.00 /Unit
  • 1 Unit
  • 59 Unit
  • 15 days
Product Description
High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

Tare Weight

11500KGS

Pay Load

25000KGS

Overall Length

11400mm

Overall Width

2480mm

Photo for reference, finial product can be made according to exact requirements

Tank

Transporting Media

Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane

Shape

Round Shape

Total Volume(m3)

56CBM

Tanker Body Steel Sheet

Q235A/14mm

End plate

Q235A14mm, by punching

Parts for Tank

Manhole cover

3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve

Unloading valve

2-3sets of DN80 fixed at button of Tank

Pipeline at button of tank

4"seamless steel tube/Q235

Labeling system

Oil Type Indication

Anti-static electricity system

pulling, wire carrier, sheet copper (6sheet-standard layout)

Other Parts

Ladder

1 unit at front of Tank

Guard on top of Tank

Zinc galvanized -guard-net

Oil hose box

Circular single hole tube, 1 unit on each side

Oil hose

2 unit, 3" x 6m size in black rubber

Side guard

cross bar-structure

Rear button guard

Fixed type

Work tank deck

Box type

Fire extinguisher box

2 unit at the back of each side

Mud guard

Steel structure in trapezoid form

Lights and wire

24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp

Chassis

Main Beams

Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes

Axle

3axle

BPWbrandFUWA brand

Landing Gear

JOSTTwo-speed, manual operating, heavy duty landing gear

King Pin

JOST2"standard bolt-in king pin

Suspension

German design mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25R22.5wheel rim

Tire

11R22.5 tubeless tire with one spare tire

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

Company Information

    Hubei Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufactureeer producingall kinds of special trucks and semi-trailer.Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW,SINOTRUK, JAC, SHEMAN, FOTonand etc. We can produce more than 300 kinds of special trucks and semi-trailer.Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell toAfrica, South-east Aisa, Australia, Middle-eastand other place.We serve the best service for each client.highperformanc35cbm ,50cbm,60cbm,chemical liquid semi trailer,oil liquid transport trailerFACTORY SCENE
    High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

    customers:

    • We have customers from worldwide countries and areas, such asKenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle- east,African, South-african, Australianand so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widelyused in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. SASO tank collection DOT pressure tank for sale large capacity LPG tank gallons full dimensions

    • High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer
      After-sale Service
    • 12months for3 key parts (engine, transmission, axle).
      • Tracking service time: lifelong.
      • Third-party service for overseas client.
      • High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer
      • Contact Information
      • Name Amy

        Mobile 0086-13872881209

        High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer

      • Welcometovisitourfactory!!!

Product Images

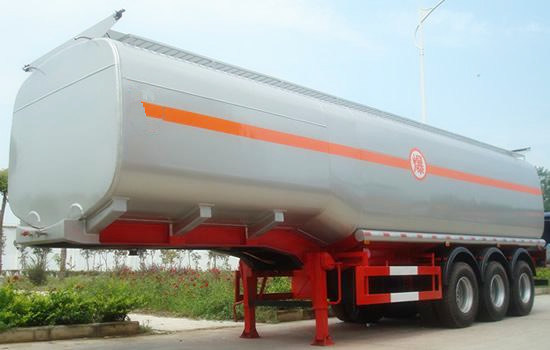

High Performance 3axle Chemical Liquid Semi Trailer, Oil Liquid Transport Trailer Images 1
