Jmc 14 Meters Overhead Working Truck Cherry Picker
- USD 23000.30 /Unit
- 1 Unit
- 55 Unit
- 8 days
Product Description

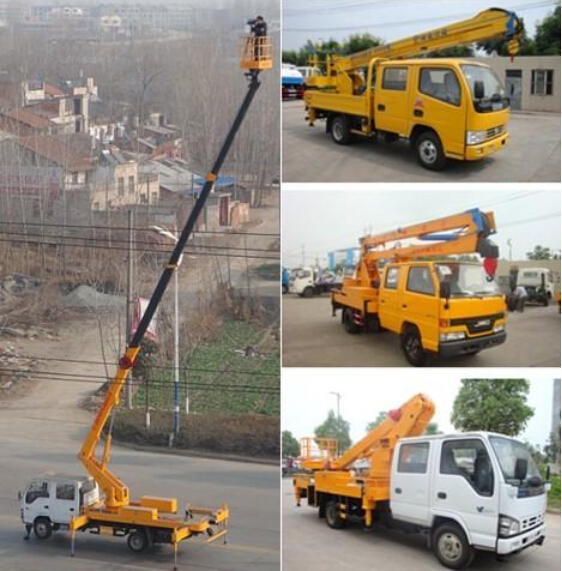

JMC 14 meters overhead working truck Cherry Picker
Qick Information:
1.high platform working height 12-16M
2.Workingbucketratedloading200KG
3.rotate 360 degree
4.Hook is optional
5. Key parts are imported
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Competitive price, high quality, professional service ,you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
6.Export covering More than 50 countries and regions
Below specification is just for your reference. More information ofHigh Altitude Operation Truck,Aerial Work Platform Truck, high-altitude working vehicle, tail-lift truck, overhead working truck, please feel free to contact with Yuki(0086-18858011948). We will customize the truck according to your requirement.
Technique Parameters
Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing &Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q: What is your payment term?
A: We accept payment by T/T, L/C.
Q: How many trucks do you sell in 1year?
A: Almost 20000-30000sets
Q: Is your factory amanufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.
Q: Where is your factory located, can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!
Company Information
Our company is appointed by Ministry of Industry and Information Technology of China, We are aProfessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTonand etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
We provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water Truck/ Water Tank Truck /Water Sprinkler Truck/Water Tanker
3.Truck with crane/ Truck Mounted Crane
4.Dump Truck/ Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck/ Fire Truck /Fire Vehicle
6.Concrete Mixer Truck
7.Van truck/ Blasting equipment transporter/Refrigerated truck
8.Fecal suction truck/ Sewage Suction Truck,
9.Cement Powder Tank truck/ Bulk Cement Truck
10.High-altitude operation truck,
11. Self-loading Garbage Truck,garbage compactor truck, sealed garbage truc
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15. Semi Trailer (flat bed trailer/ skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
Export in Batches
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
JMC 14 meters overhead working truck Cherry Picker
WELCOME TO VISIT OUR FACTORY AND PLACE YOUR ORDER!
Qick Information:
1.high platform working height 12-16M
2.Workingbucketratedloading200KG
3.rotate 360 degree
4.Hook is optional
5. Key parts are imported
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Competitive price, high quality, professional service ,you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
6.Export covering More than 50 countries and regions
Below specification is just for your reference. More information ofHigh Altitude Operation Truck,Aerial Work Platform Truck, high-altitude working vehicle, tail-lift truck, overhead working truck, please feel free to contact with Yuki(0086-18858011948). We will customize the truck according to your requirement.
Technique Parameters
| Product Name | JMC double row 14 meters high overhead working truck | |
| Drive Model | 4x2 | |
| Vehicle Main Dimensions | (L xW xH)mm | 7300*2000*3100 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1960/1847 | |
| Weight in KGS | Curb Weight | 5165 |
| G.V.W. | 5490 | |
| Max. driving speed(km/h) | 90 | |
| Cab capacity | 2+3 | |
| Cab type | Double row | |
| Working height(m) | 14 | |
| Transmission type | manual | |
| Engine | Model | JX493ZLQ4 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 80 | |
| Displacement | 2771ML | |
| Emission standard | EuroIII | |
| Fuel type | Diesel | |
| Engine type | turbocharged intercooling, four stroke | |
| Gearbox | 5forwards& 1reverse | |
| Tire number | 6 including 1spare tire | |
| Fuel tank (L) | 120 | |
| Superstructure parameter | 1. Four rotational alert lamps on the platform deck. | |
| 2. Four hydraulic outriggers which can be operated independently or simultaneously | ||
| 3. With an Insulated bucket for worker to operation and lifting hook | ||
| 4. Three section Folded Arms, 360° rotation | ||
| 5. imported electro-hydraulic ratio control valve. | ||
| 6. Operation Control on operation bucket or platform deck | ||
| 7. Protective material:Q235A carbon steel | ||
| 8. Work platform is limited to two persons | ||
| 9.one ton of hook can be configured. | ||
| 10.Work platform load capacity:250kg | ||
Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing &Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q: What is your payment term?
A: We accept payment by T/T, L/C.
Q: How many trucks do you sell in 1year?
A: Almost 20000-30000sets
Q: Is your factory amanufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.
Q: Where is your factory located, can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!
Company Information
Our company is appointed by Ministry of Industry and Information Technology of China, We are aProfessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTonand etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
We provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water Truck/ Water Tank Truck /Water Sprinkler Truck/Water Tanker
3.Truck with crane/ Truck Mounted Crane
4.Dump Truck/ Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck/ Fire Truck /Fire Vehicle
6.Concrete Mixer Truck
7.Van truck/ Blasting equipment transporter/Refrigerated truck
8.Fecal suction truck/ Sewage Suction Truck,
9.Cement Powder Tank truck/ Bulk Cement Truck
10.High-altitude operation truck,
11. Self-loading Garbage Truck,garbage compactor truck, sealed garbage truc
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15. Semi Trailer (flat bed trailer/ skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
Export in Batches
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948
JMC 14 meters overhead working truck Cherry Picker
WELCOME TO VISIT OUR FACTORY AND PLACE YOUR ORDER!
Product Images
-
