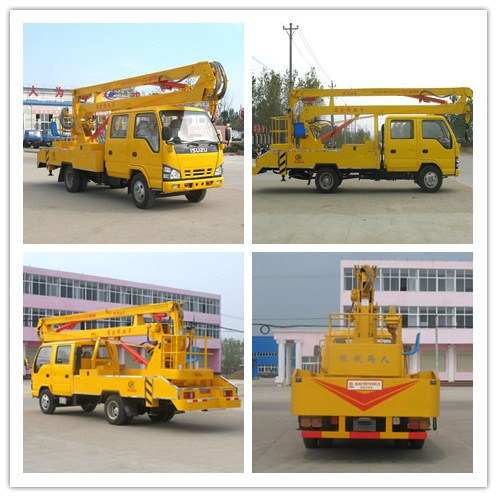

6 Wheels 16m High Platform/Altitude Operation Truck
- USD 25000.40 /Unit
- 1 Unit
- 43 Unit
- 10 days
Product Description
Product Description
Features:
1. imported electro-hydraulic ration control valve, step less speed regulation
2. Ground & basket electro-hydraulic control.
3. Little folding beam, outreach widely
4. Large load capacity of platform
5. Telescopic lifting beam, higher lifting height from 12m to 22m.
6. Rotate degree 360 degree. ( left or right)
7. Function of position restriction, alarm in dangerous working status, high security performance
8. Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
9. Urgent power.
10. Inter-lock performance, safe and reliable operation.
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of ourTruck Mountd Aerial Work Platform, please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.
Technique Parameters
Drawing of 16M ISUZUHigh-altitude Working Truck
Exporting
Chengli special automobile Co., Ltdis anautomobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseascustomersfromAfrica, South America, theMiddle Eastand South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 setsof military water trucks fornational defense
2.Dump trucksin support of theUnited Nations
3.Fuel tank trucksexported toSudan
4.78 sets of water truckexported toNigeria
5.Dump trucksexported to theIvory Coast, Kazakhstan
6.108setsof trucks exported toLibya
7.36 sets ofdump trucksexported tonorth America
8.218 setsof garbage trucks exported toWest Africa
9.60sets ofwater trucksexported toCongo
10. Garbage trucks exported toVietnam
11.98 sets of dump trucks exported toGhana
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Weare confidentandcommittedto providingour customers withthe bestqualityandserviceall the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Cicy Ma
Tel/Fax : 00862783796298
Cell:0086-13872882026
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
Features:
1. imported electro-hydraulic ration control valve, step less speed regulation
2. Ground & basket electro-hydraulic control.
3. Little folding beam, outreach widely
4. Large load capacity of platform
5. Telescopic lifting beam, higher lifting height from 12m to 22m.
6. Rotate degree 360 degree. ( left or right)
7. Function of position restriction, alarm in dangerous working status, high security performance
8. Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
9. Urgent power.
10. Inter-lock performance, safe and reliable operation.
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck Mounted Crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water Truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery. All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of ourTruck Mountd Aerial Work Platform, please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.
Technique Parameters
| Description | ISUZUHigh-altitude Working Truck | |
Drive Model | 4X2 | |
| Chassis | QL10508HWRY | |
| Number of axles | 2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 7400×1980×3100 |
| Wheel base (mm) | 3360 | |
| Overhang (front/rear) (mm) | 1015/2180 | |
| Wheel track (front/rear) (mm) | 1385/1425 | |
| Approach/Departure angle(°) | 24/12 | |
| Weight in KGS | Curb Weight | 4975 |
| GVW. | 5300 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | 4JB1-TC1 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 95HP | |
| engine capacity(ml) | 2771 | |
| Emission standard | EuroIII | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 180 | |
| Tire | 7.00-15tire , 6 + 1(spare) | |
| Brakes | dual circuit compressed air brake | |
| Allowable passengers in cab: | 5 | |
| Working platform | ||
| Material | Q235 Carbon steel | |
| working platform dimension | 1100*570*1000mm | |
| Maximum operation height | 16M | |
| Maximum operation radius | 7M | |
| Max lifting weight | 800kg | |
| hydraulicsystempressure | <=16MPa | |
| working platform rating allowable passengers | 2 | |
| Max load capacity of the square platform | 250Kg | |
| Electric system | 24V | |
| Other | Max operation height>=16m Max operation radius>=7m Max working platform height>=14.5m 360°turning(left or right),4 H-shape legs. 1.5 ton crane Insulating material in the cage The cage can be operated both in the air and on the earth | |
Drawing of 16M ISUZUHigh-altitude Working Truck
Chassis dimension | 7400×1980×3100mm | |
| working platform | working platform dimension | 1100×570×1000mm |
| The maximum height from the ground | 14300mm | |
| Max Operating Radius | 6920mm | |
| leg | lateral span | 2680mm |
| longitudinal span | 2730mm | |
| Max lifting height | 6300mm | |
Exporting
Chengli special automobile Co., Ltdis anautomobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseascustomersfromAfrica, South America, theMiddle Eastand South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 setsof military water trucks fornational defense
2.Dump trucksin support of theUnited Nations
3.Fuel tank trucksexported toSudan
4.78 sets of water truckexported toNigeria
5.Dump trucksexported to theIvory Coast, Kazakhstan
6.108setsof trucks exported toLibya
7.36 sets ofdump trucksexported tonorth America
8.218 setsof garbage trucks exported toWest Africa
9.60sets ofwater trucksexported toCongo
10. Garbage trucks exported toVietnam
11.98 sets of dump trucks exported toGhana
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
Weare confidentandcommittedto providingour customers withthe bestqualityandserviceall the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Cicy Ma
Tel/Fax : 00862783796298
Cell:0086-13872882026
Website:truckcl.en.alibaba.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
