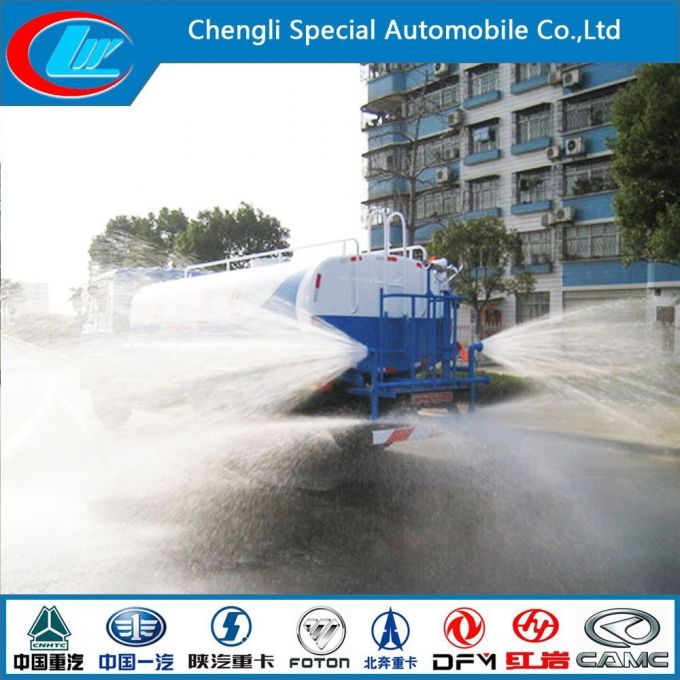

Dongfeng 15m3 Water Bowser Water Sprinker Tank Truck

Packaging &Delivery

Packaging Details:	Nude packing
Delivery Detail:	30-50 days after advance payment

Specifications
1.3 grades of safety protection system, 15 emergency stop devices are setted in the back.
2. Anti-mistake operating device

Item		unit	parameter
Overall dimensions		mm	7450×2500×3000
	Fact cubage	L	12000~15000
	Mass in working order	kg	15900
	Body internal dimensions	mm	4500×2000×1235
	Wheel base		4800,5100,5600
	F/R track base		1750/1586
	Approach/departure angle	°	30/13
Exhaust/kw		ml/kw	6500/132
Max speed		km/h	90
Tire specification		10.00-20 16PR,10.00R20 16PR,9.00-20,9.00R20
Traction system		4×2	transmission	6-speed with over drive
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	3
Equipment		Equipped with front(rear,side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with CLW pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze
Engine		DongFeng ChaoYang diesel engine
Production cycle		5-7 days
Warranty		Item Parameter Vehicle CLW5161 Chassis type DFL1160BX Tanker volume CBM(m³) 10 Total Weight( kg) 16000 Tare Weight(kg) 6305 Loading capacity(kg) 9500 Wheelbase mm 5000 F/R track base 1430/2370 Approach/departure angle Degree (°) 18/11 Exhaust/Power ml/KW 5900/140 Max speed km/h 90 Engine type B19033 Transmission Manual operating Tire specification 9.00-2010.00-209.00R2010.00R20 Number of axles 2 Emission standard EUROIII Allowable passengers in Cab 2

Chengli Watering Truck Products Features
1. The material of water tank used by high quality carbon steel, equipped with the high power water pump which named CLW(technology from Japan), it has owned the no.1 title in the assessment of quality in China. Suction lift>8m, Width>14m, Range>35m.

2. Equipped with fire valve, water valve. Equipped with suction pump. It can suction the water from the pond to tanker directly.

3. The Water Truck can used as the chemical spraying truck to use, also can used as awater delivery truck by the unit or company in urgent case, it can also used as afire truck.


WHY CHOOSE US?
1.Experience:
10 years experience of production,sales,research and development in the field of special trucks.
2.Specialization:
OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
3.Good Quality:
has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
4. Chassis supply:
we have avery good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,etc.
5. Production supply capacity
Company Scale: More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied. And for the stock, we can delivery it immediately.

Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.

our advantage:
1. competitive price and excellent quality
2. more than 10 year's experience as amanufacture
3. ccc, Iso, BV certificate
4. perfect after-sale service
5.customized products available with us
6.export covering more than 50 countries and regions
7.annual production value topped 240,000,000us dollars per year
