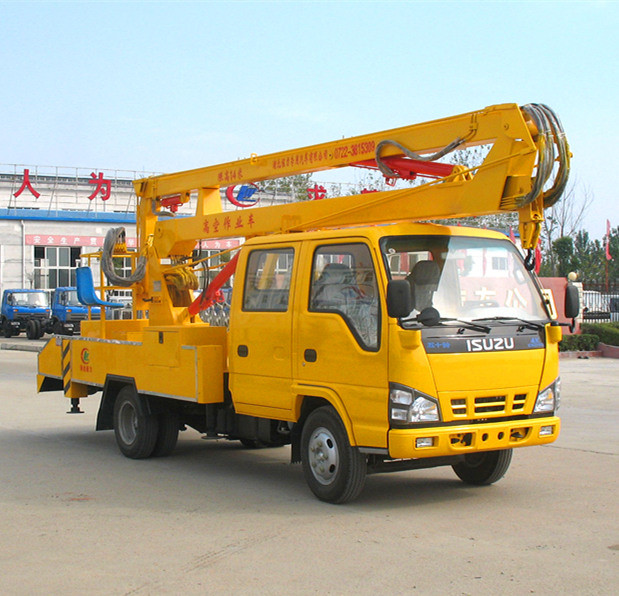

Isuzu High Altitude Operation Truck Tree Pruning Truck Cherry Picker

Qick Information:

1.high platform working height 12-16M
2.Workingbucketratedloading200KG
3.rotate 360 degree
4.Hook is optional
5. Key parts are imported

Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Competitive price, high quality, professional service ,you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
6.Export covering More than 50 countries and regions

Below specification is just for your reference. More information ofHigh Altitude Operation Truck,Aerial Work Platform Truck, high-altitude working vehicle, tail-lift truck, overhead working truck, please feel free to contact with Yuki(0086-18858011948). We will customize the truck according to your requirement.
Technique Parameters

Description	ISUZUHigh-altitude Working Truck
Drive Model	4X2
Chassis	QL10508HWRY
Number of axles	2
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)	7400×1980×3100
	Wheel base (mm)	3360
	Overhang (front/rear) (mm)	1015/2180
	Wheel track (front/rear) (mm)	1385/1425
	Approach/Departure angle(°)	24/12
Weight in KGS	Curb Weight	4975
	GVW.	5300
Max. driving speed(km/h)		95
Engine	Model	4JB1-TC1
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	95HP
	engine capacity(ml)	2771
	Emission standard	EuroIII
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	7.00-15tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Allowable passengers in cab:	5
Working platform
Material	Q235 Carbon steel
working platform dimension	1100*570*1000mm
Maximum operation height	16M
Maximum operation radius	7M
Max lifting weight	800kg
hydraulicsystempressure	<=16MPa
working platform rating allowable passengers	2
Max load capacity of the square platform	250Kg
Electric system	24V
Other	Max operation height>=16m Max operation radius>=7m Max working platform height>=14.5m 360°turning(left or right),4 H-shape legs. 1.5 ton crane Insulating material in the cage The cage can be operated both in the air and on the earth

Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948


Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.

Packing &Shipping

1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

FAQ

Q: What is your payment term?
A: We accept payment by T/T, L/C.

Q: How many trucks do you sell in 1year?
A: Almost 20000-30000sets

Q: Is your factory amanufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.

Q: Where is your factory located, can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!

Company Information
Our company is appointed by Ministry of Industry and Information Technology of China, We are aProfessionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTonand etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.




We provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water Truck/ Water Tank Truck /Water Sprinkler Truck/Water Tanker
3.Truck with crane/ Truck Mounted Crane
4.Dump Truck/ Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck/ Fire Truck /Fire Vehicle
6.Concrete Mixer Truck
7.Van truck/ Blasting equipment transporter/Refrigerated truck
8.Fecal suction truck/ Sewage Suction Truck,
9.Cement Powder Tank truck/ Bulk Cement Truck
10.High-altitude operation truck,
11. Self-loading Garbage Truck,garbage compactor truck, sealed garbage truc
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15. Semi Trailer (flat bed trailer/ skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )

Export in Batches
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.

Contact Information
Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948


WELCOME TO VISIT OUR FACTORY AND PLACE YOUR ORDER!
