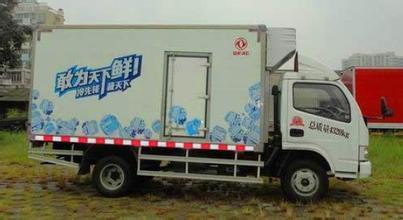

Big Cold Plate Refrigerator Truck 16 Ton Van for Fish and Meat Freezer Truck High Quality Refrigerat

big cold plate Refrigerator truck 16 ton van for fish and meat freezer truck high quality refrigerator truck

Payload: 3ton 4ton 5ton 6ton 7ton 8ton 9ton 10ton 12ton 15ton 18ton 20ton 25ton

Temperature control: -3 -5 -8 -10 -15 -18


Technical parameters:

Description	CLW5160XLC4
Drive Model	4X2
Chassis	DFL1160
Vehicle Main Dimensions	Overall dimensions (mm)		8350×2330×3550
	Wheel base (mm)		4700
	Overhang (front/rear) (mm)		1180/2470
	F/R track base (mm)		1831/1640
	Approach/Departure angle(°)		25.5/12
Weight in KGS	Curb Weight (kg)		5700
	GVW.(kg)		15790
Max. speed(km/h)			99
Engine	Model		CY4102
	Exhaust/hp (ml/ps)		3856/160
	Emission standard		EuroIII
spring	11/13+8,8/10+7
axle	2
Tire	9.00-20/16+1 spare
Van
Material		1.FRP inside and outside 2.with 8CM thickness polyurethane 3. Fiber steel/Stainless steel/Color plate
Tipper Box Dimension (mm)		6150×2150×2200
Temperature		-18ºC or -5ºC as your choice
Production cycle		20 working days
Warranty		12 month, from the date of supply
FOB Shanghai		USD 31893/unit

Company Information

Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.


Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Export

Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.



big cold plate refrigerator truck 16 ton van for fish and meat freezer truck high quality refrigerator truck

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

contact person: Amy

Tel:+86-13872881209
