Refrigerator wagons/cars/trucks produced by Chengli Special Automobile Co., LtdCoverSINOTRUK, DFAC, FAW, FOTON,JAC,JMCbrand and range in size and equipment, which can meet different need, such as vegetable transportation, meat transportation, seafood transportation and vaccine transportation.

The advantages of Insulated/Freezer Van Body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

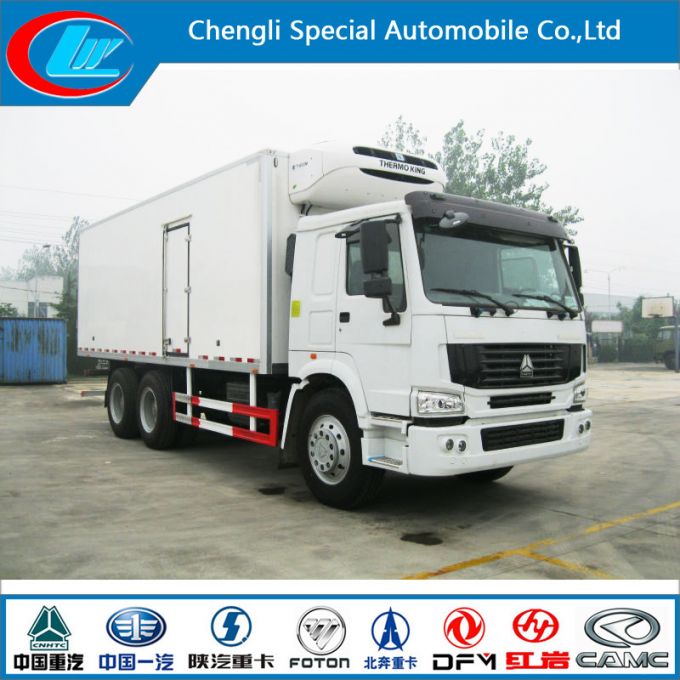

Hot sale 25tRefrigerator Truck cooling van truck 6X4 food truck

Contact Information

Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile: +008613872880232
+008618858011948

Technique Parameters

Description	SINOTRUK 6x4 Refrigerator Truck
Drive Model	6X4
Vehicle Main Dimensions	Dimensions(L x W x H)mm	12000*2500*3980
	Wheel base (mm)	5825+1350
	Overhang (front/rear) (mm)	1500/3286
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/10
Weight in KGS	Curb Weight	12700
	GVW.	25000
Max. driving speed(km/h)		90
Chassis Model	ZZ1257
Engine	Model	WD615.92
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	266HP
	Emission standard	EuroIII
Gearbox	10 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	350
Tire	11.00-20 tire , 11 pieces including one spare tire
Brakes	dual circuit compressed air brake
Van body
Van Material	Double layer FRP(Glass FiberReinforced Plastics ) Stainless steel/Color plate can be chosen
Thermal insulation	8CMpolyurethane foam
Body Overall Dimension	8300*2300*2500mm
Door	Reardooropen,sidedoorisoptional
Refrigerator unit brand	China HuaTai Optional:China-Hanxue,America-Carrier/thermo,Korea Dongin, etc
Temperature	-5ºCor -18ºCas your choice

Hot sale 25tRefrigerator Truck cooling van truck 6X4 food truck

Truck refrigerator unit

Unit model			F800
Refrigerator Type			HUATAI
Applicable temperature(ºC)			-18
Applicable volume(m3)			35
Cooling capacity	Environmental temperature	0ºC	8000
		-18ºC	4200
Voltage (V)			DC12V/24V
Current (A)			27/17
compressor	Displacement (cc/r)		210
condenser	Air flow (m3/h)		-
	Fan type		-
	number		-
evaporator	Air flow (m3/h)		-
	Fan type		-
	number		-
refrigerant			R404A
Refrigerant charge amount(Kg)			3.1-3.2
Defrost type			Hot gas defrost
Dimensions(mm)	evaporator		1700×644×230
	Condensing utensil		1565x555x415
Weight(KG)	evaporator		54.5
	Condensing utensil		63.2
Remark	Optional to install for 380v store electric power

Packaging &Shipping

1, Packaging: nude orwaxing;

2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

According to your location and the vehicle's size, we will provide the most professional packaging and preferential price for you!

After Sales Service
1.Answer and solve your questions and consult within 24 hours
2.Overseas job site service available
3.One year guarantee about three key parts(axle, engine, transmission). Other spare parts could be supplied by cost price.

Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.

FAQ

1 Our price term:FOB Shanghai as common, other port is also acceptable.

2. Our Payment term:T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.

3. Delivery time:the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition. 2015 NEW DESGINE 25t refrigerator truck6X4 freezer truck good price HOWO cooling van truck

Company Profile

• 12 independents workshops.
• Established from 2004.
• 300 senior engineers and technicians. about 2000 to 3000 workers.
• 380kinds of trucks and semi-trailers.
• Turnover 2 billion trucks and semi-trailers annually.
• 1000 sets of equipments,25 assemble lines.

  Hot sale 25tRefrigerator Truck cooling van truck 6X4 food truck



  Our main products:

  1. Dump Truck / Tipper Truck/Side Tipper/End Tipper

  2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine

  3. Truck with crane / Truck Mounted Crane

  4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck

  5. Water Truck / Water Tank Truck / Water Sprinkler Truck

  6. Concrete Mixer Truck

  7. Van truck / Insulated truck/ Refrigeration truck

  8. Fecal suction truck / Sewage Suction Truck,

  9. Cement Powder Tank truck/ Bulk Cement Truck

  10. High-altitude operation truck,

  11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,

  12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


  .

  Hot sale 25tRefrigerator Truck cooling van truck 6X4 food truck


  Welcome to visit our factory!
